Products Detail:

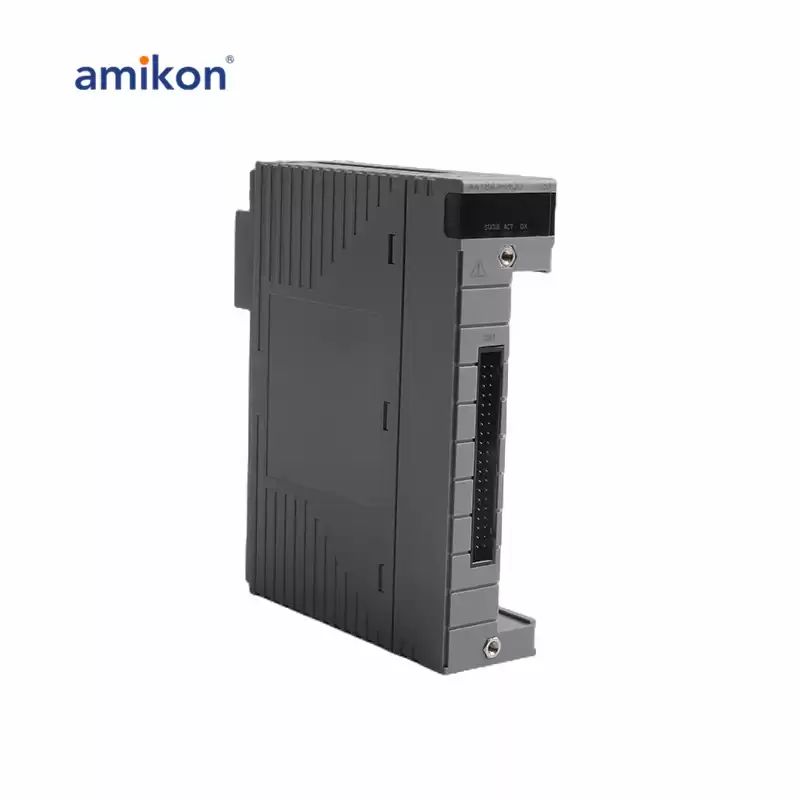

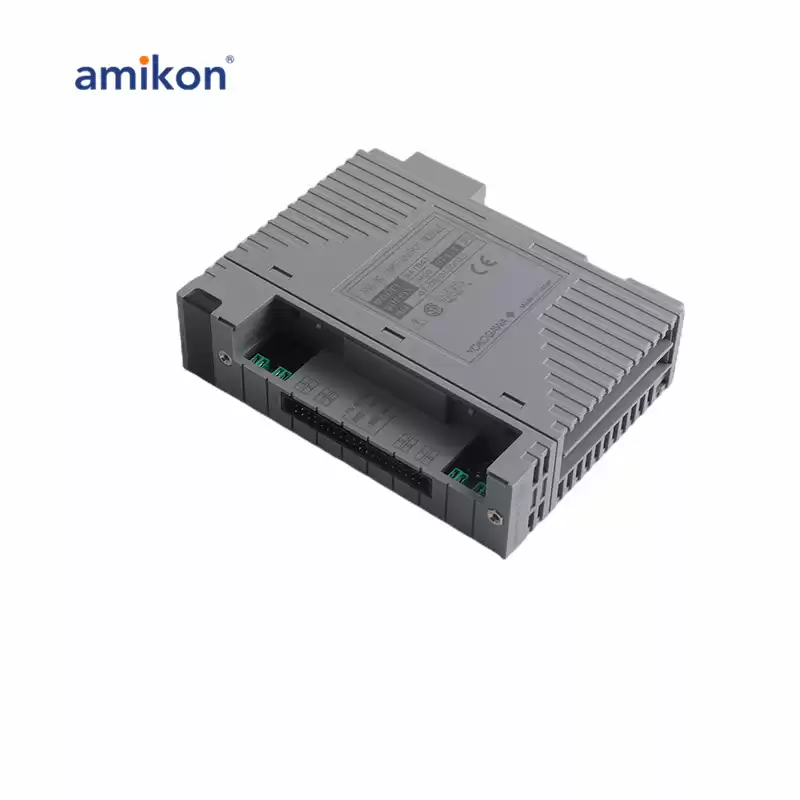

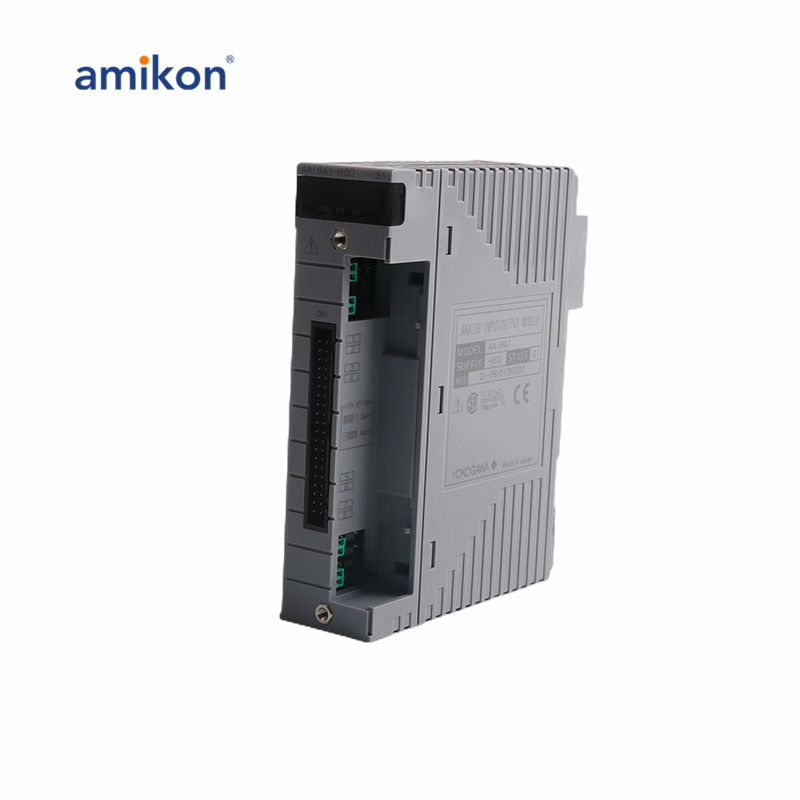

The AAI841-H00 S1 is an Analog I/O Module designed for use in systems that require 4 to 20 mA input and output. This module supports up to eight input channels and eight output channels, all of which are non-isolated. The module can be configured in a dual redundant setup, providing reliable operation for critical applications.
Each of the eight inputs is designed for use with 2-wire transmitters, and a voltage is developed across the connecting terminals for these transmitters. When ensuring that the transmitter's minimum operating voltage is met, it’s important to account for the voltage drop in the external wiring.
Additionally, when installing the module with HART functionality in a remote node, it’s crucial that the firmware version of the EB401 is Rev 2 or later to ensure compatibility and optimal performance.
FAQ:
1. What is the voltage developed across the input terminals?
For the 2-wire transmitters, the module develops a voltage across the connecting terminals to power the transmitter. This voltage is necessary for proper signal transmission.
2. What should be considered when calculating the minimum operating voltage for a transmitter?
When calculating the transmitter’s minimum operating voltage, make sure to account for the voltage drop that can occur due to the external wiring. This ensures that the transmitter receives the required voltage to operate correctly.
3. Is there any specific firmware requirement for HART functionality?
Yes, if the AAI841-H00 S1 module is being installed with HART functionality on a remote node, it is required that the firmware of the EB401 be Rev 2 or later. This ensures proper communication and compatibility.
