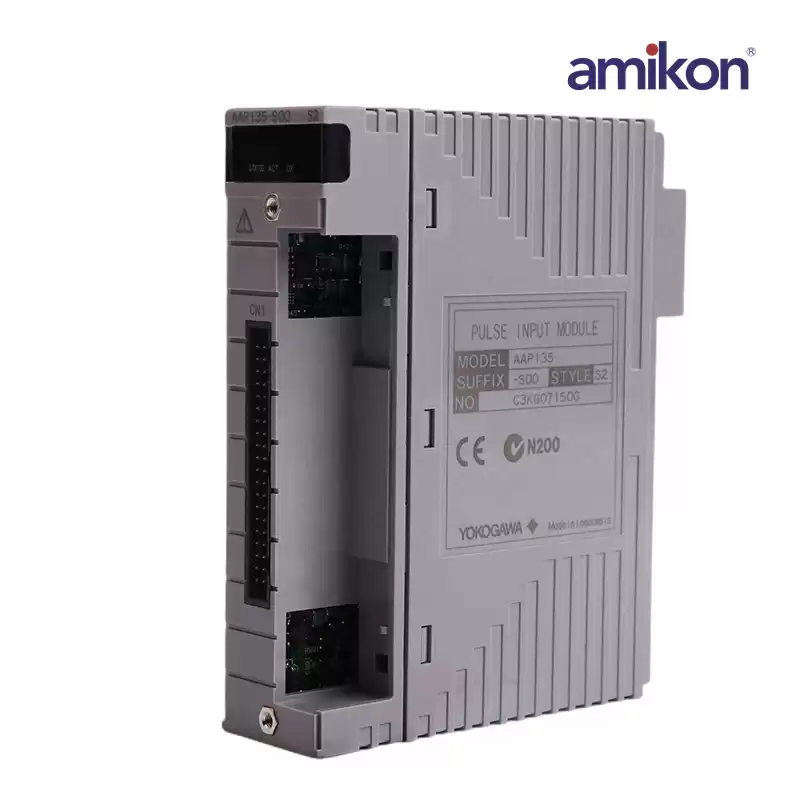

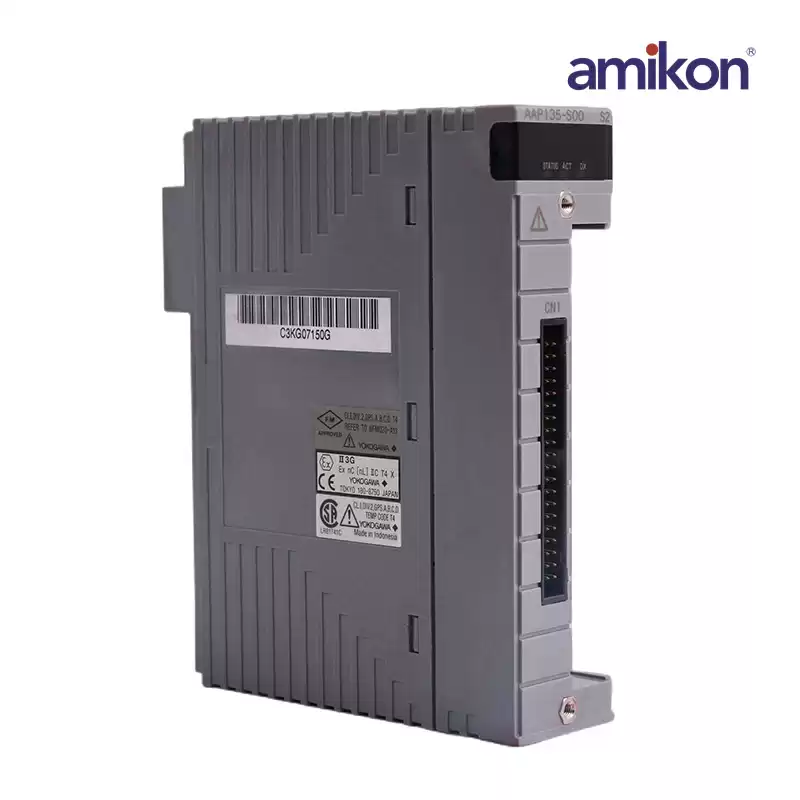

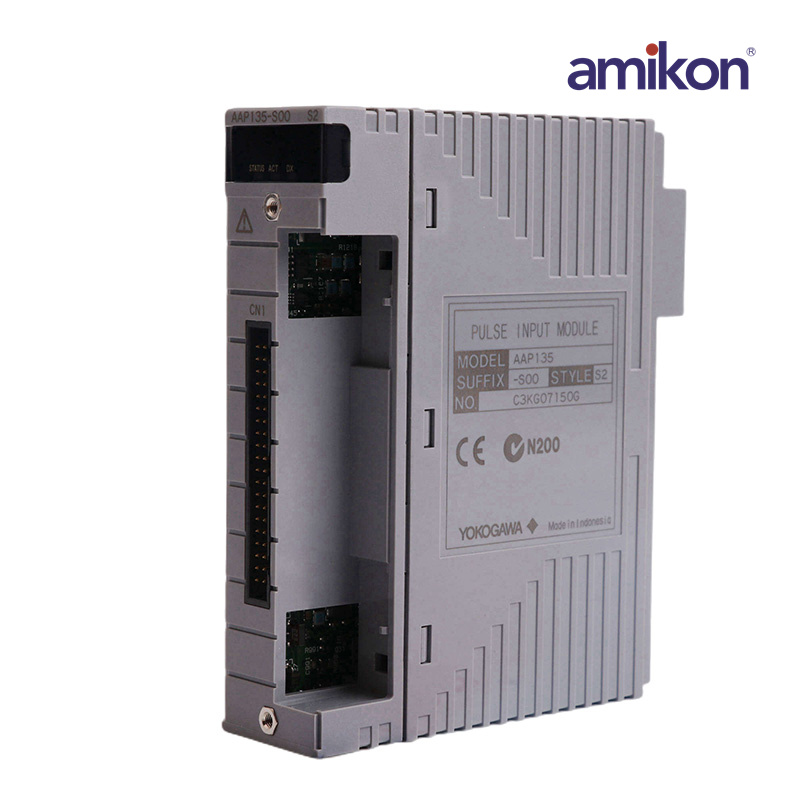

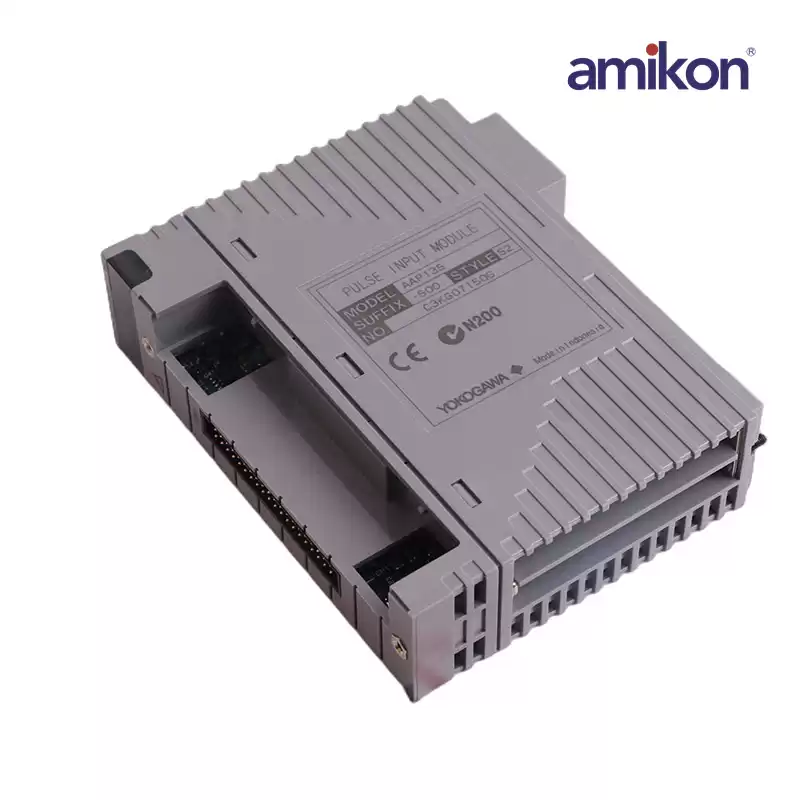

YOKOGAWA AAP135-S00 S2 Analog Pulse Input Module |
|||
|
Dimensions: 3.3x10.7x13cm |
Weight: 0.3kg |
Product Package：Original Package |
Shipping Term：TNT DHL FEDEX EMS UPS |
| This module receives contact ON/OFF, voltage pulse, and current pulse signals. It is isolated between the field andthe system as well as in between each channel, and can be used in dual-redundant configuration. *1: When the ML connector cable is used, the withstanding voltage depends on the electrical specifications of the cable. *2: When the pulse input signal is a dry contact (e. g. mechanical relay) up to 10 Hz, chattering can be eliminated. *3: Connection methods with field devices vary by the input signals. Refer to the Installation Guidance (TI 33K01J10-50E) for details. *4: The input frequency is 0 to 800 Hz in between terminals B and C to receive non-voltage contact signals. |
|||
