About product:

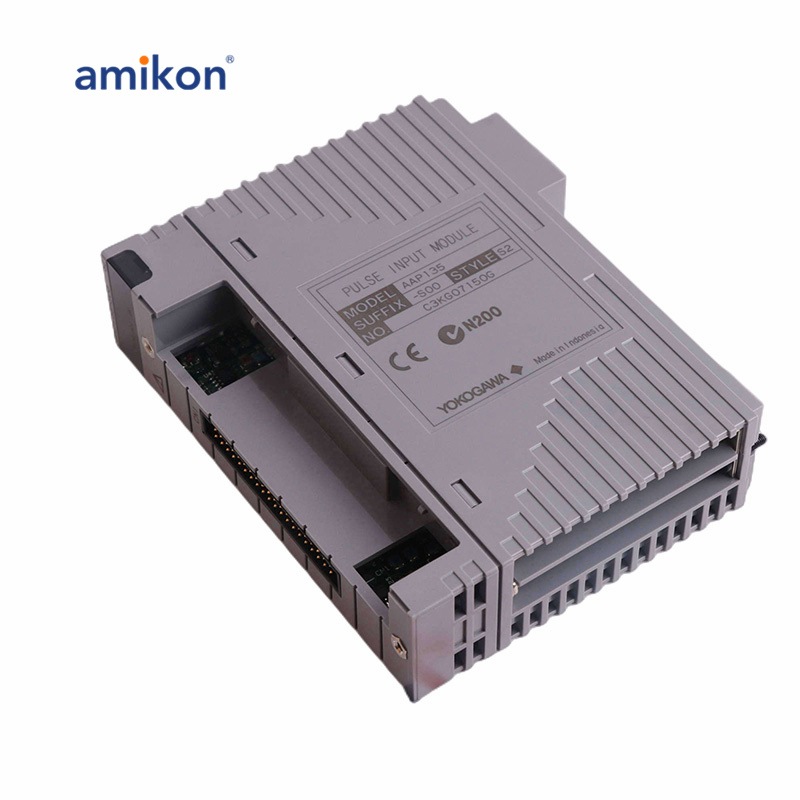

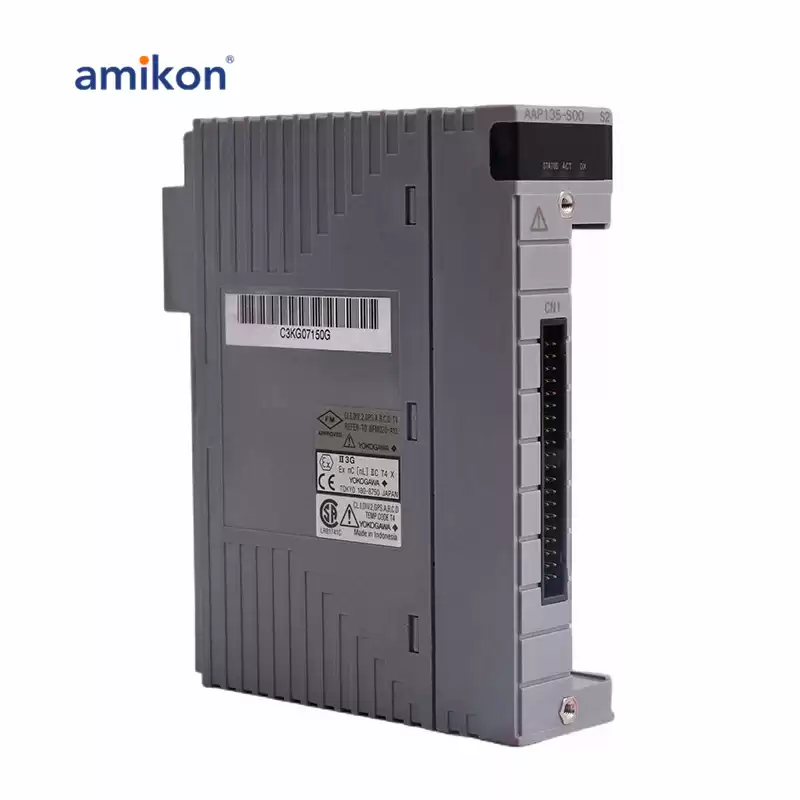

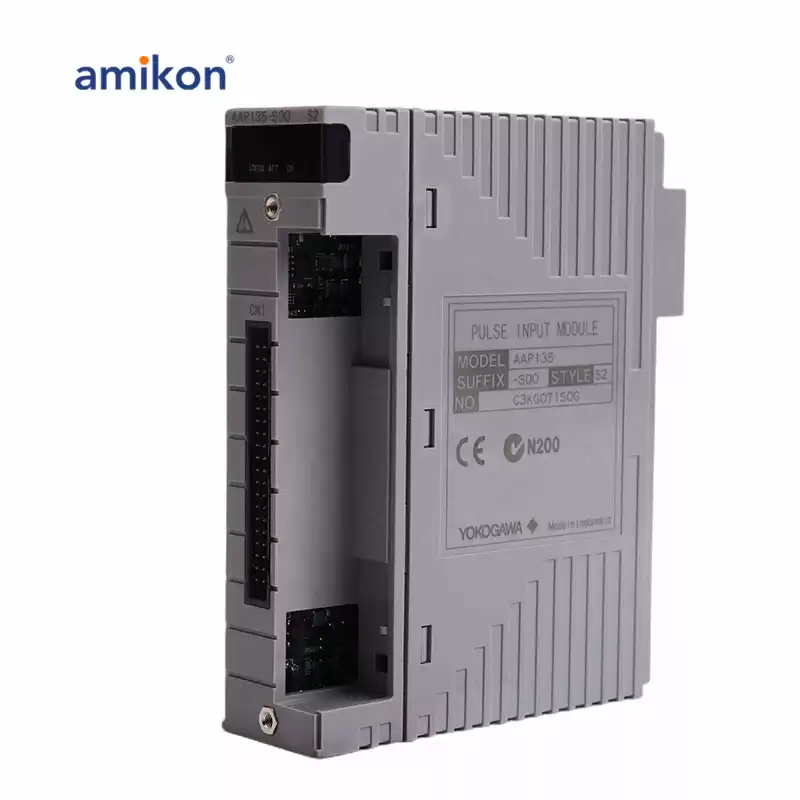

The AAP135-S00 S2 module is designed to receive contact ON/OFF signals, voltage pulses, and current pulses. It provides isolation between the field and the system, as well as between each channel, ensuring safe and reliable operation. This module can also be configured in a dual-redundant setup for enhanced system reliability.
The module can handle dry contact pulse input signals (e.g., from mechanical relays) with a frequency of up to 10 Hz, and it features chatter elimination for such signals. The input frequency for non-voltage contact signals (between terminals B and C) ranges from 0 to 800 Hz.
For connecting cables, the withstanding voltage of the MIL connector cable is determined by the electrical specifications of the cable used.
FAQ:
1. What types of input signals does the AAP135-S00 S2 module accept?
The AAP135-S00 S2 module accepts contact ON/OFF signals, voltage pulses, and current pulses. It is ideal for handling digital pulse signals from mechanical relays and other pulse-generating devices.
2. Can this module be used in a redundant configuration?
Yes, the AAP135-S00 S2 module can be used in a dual-redundant configuration for enhanced system reliability and fault tolerance.
3. What is the frequency range for pulse input signals?
The module can receive non-voltage contact signals with an input frequency range of 0 to 800 Hz between terminals B and C. For dry contact pulse input signals (e.g., from mechanical relays), the module supports frequencies up to 10 Hz with chatter elimination.
