About product :

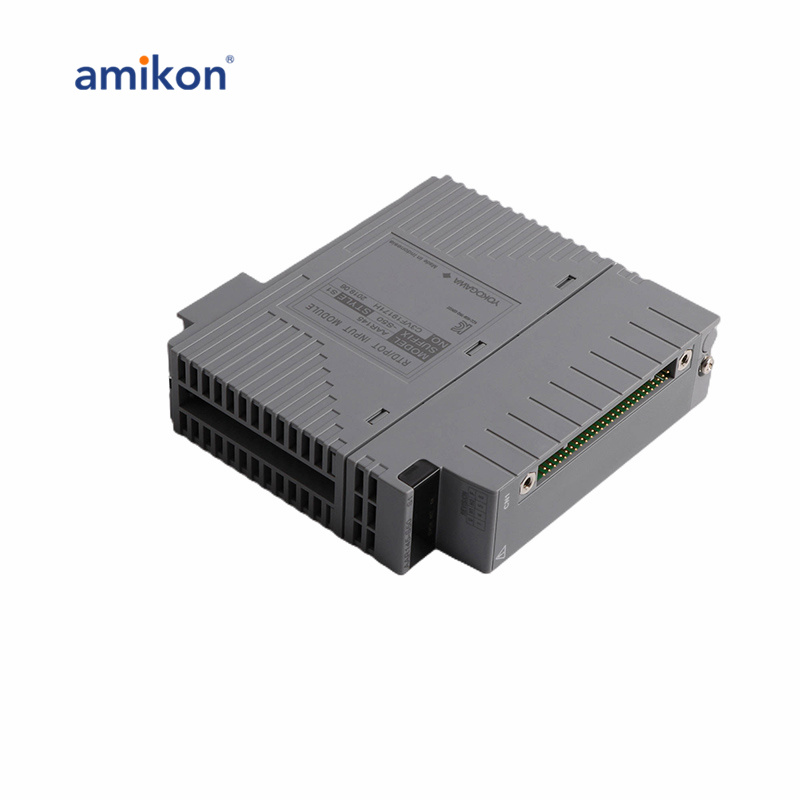

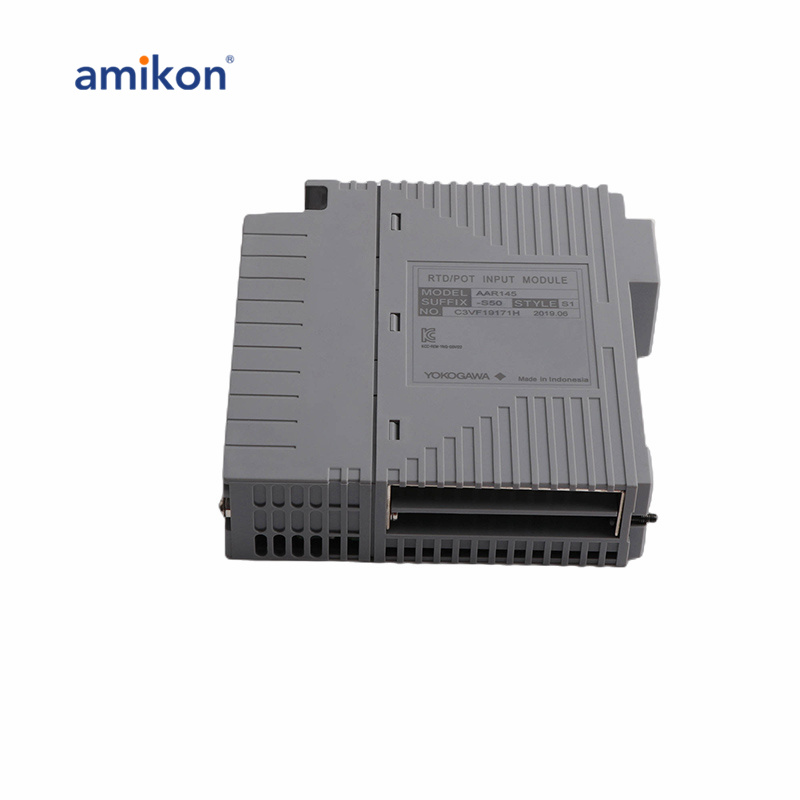

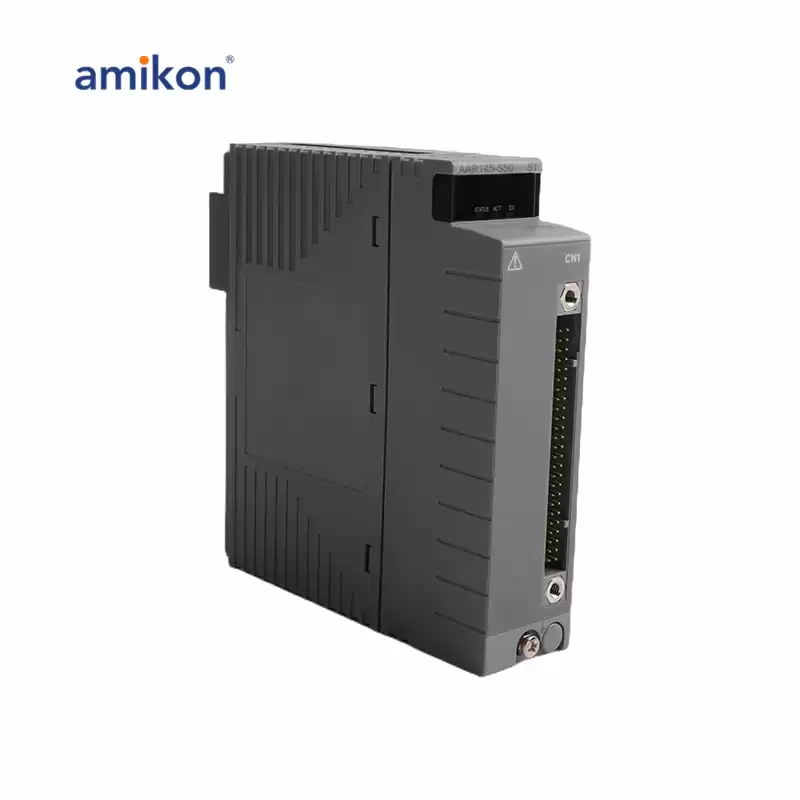

The AAR145-S50 S1 module is designed to receive signals from various types of sensors, including mV, thermocouples (TC), RTD, and potentiometers (POT). These signals are isolated both between the field and the system and between each channel, ensuring signal integrity and preventing interference. The module is capable of being used in a dual redundant configuration, enhancing system reliability.
Additionally, the AAR145 complies with JIS C1602:1981 and JIS C1604:1989 standards for temperature sensors, including Pt100 and JPt100 RTDs. However, the Type B model does not support temperature compensation and cannot measure temperatures below 44°C.
For signal connections, the module can handle an allowable total resistance of 150 Ω or less, including the wiring resistance per wire, ensuring proper signal processing without significant loss or interference.
AAR145-S50 S1 FAQ:
1.What types of signals can the AAR145-S50 S1 module process?
The AAR145-S50 S1 module can process mV, thermocouple (TC), RTD, and potentiometer (POT) signals. It is specifically designed to handle these different sensor types, making it versatile for various applications in industrial control systems.
2.Is the AAR145-S50 S1 isolated?
Yes, the module provides isolation between the field and the system, as well as between each channel. This isolation helps protect the system from electrical interference and ensures accurate signal transmission.
3.Can the AAR145-S50 S1 module be used in redundant configurations?
Yes, the module supports dual redundant configuration, which enhances reliability and fault tolerance by using backup systems to prevent single points of failure.
