About product:

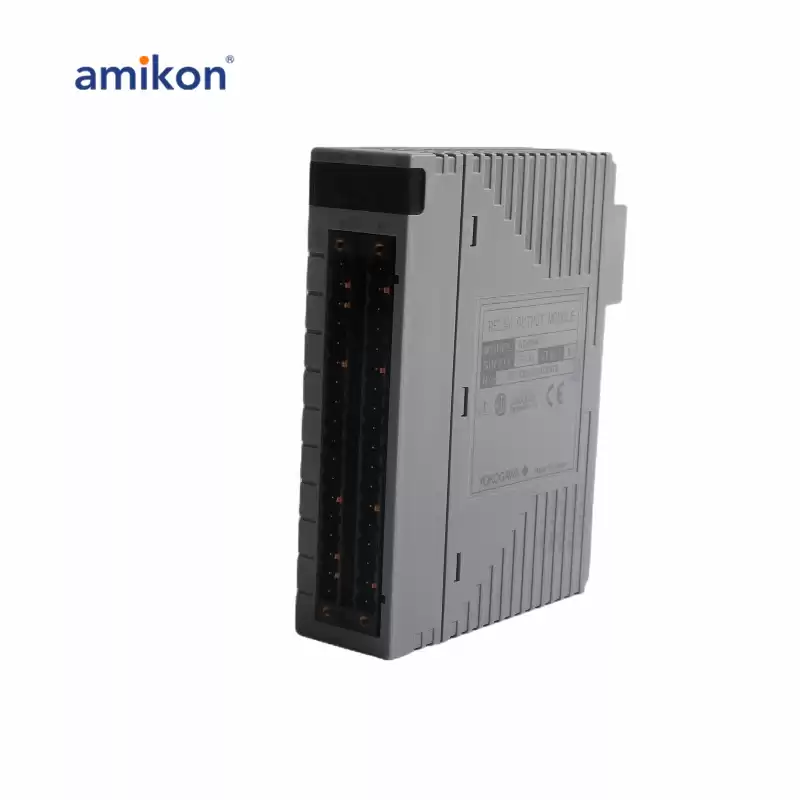

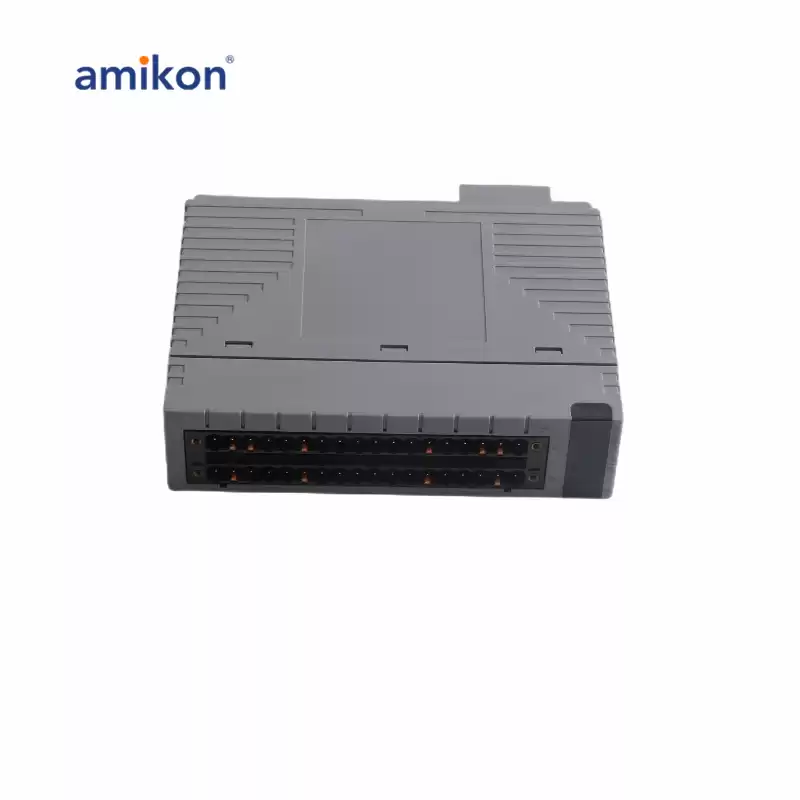

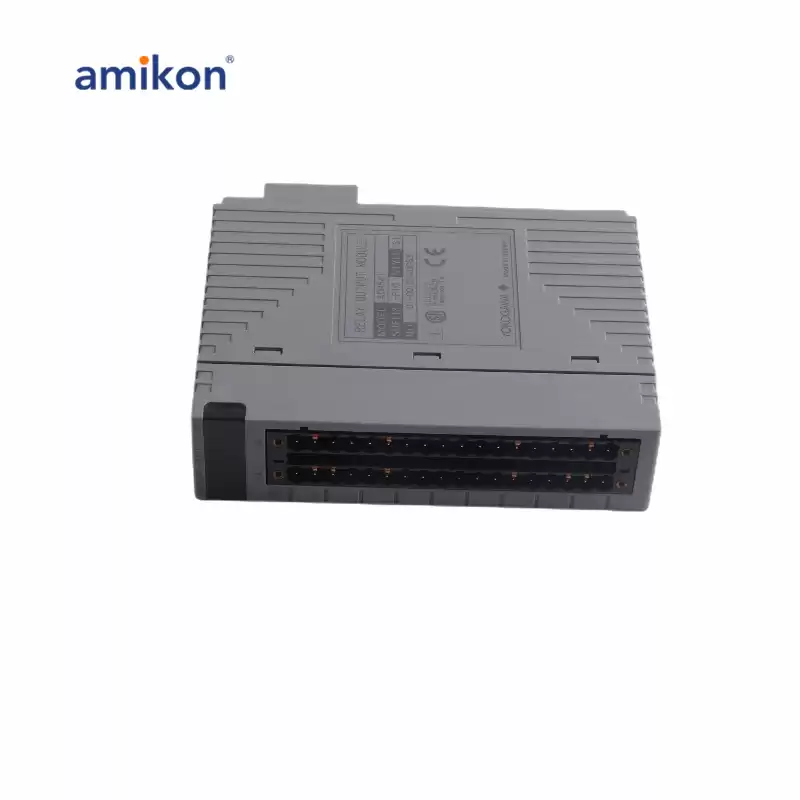

The ADR541-P10 S1 is a Relay Output Module that provides 16 channels of relay contact signals for controlling field devices. It supports a maximum of 8 A per common and requires a spark killer diode when driving DC relays to protect the system from voltage spikes. The relay itself cannot be replaced; once it reaches the end of its service life, the entire module must be replaced.
This module is part of a system where the NIU (Network Interface Unit) interfaces analog and contact I/O signals from the field with the Field Control Unit (FCU) through either an N-ESB or optical ESB bus. The I/O unit typically consists of I/O adaptors and nests for the adaptors, or multi-channel I/O modules (ranging from 1 to 4 units), which connect field signals to the NIU, enabling seamless communication and control within the system.
ADR541-P10 S1 Relay Output Module FAQ:
1. What is the ADR541-P10 S1 Relay Output Module? The ADR541-P10 S1 is a 16-channel relay output module used for controlling field devices by outputting relay contact signals. It is commonly used in industrial control systems to interface with digital equipment and provide isolated relay outputs.
2. What is the maximum current rating for each output? Each output channel on the ADR541-P10 S1 can handle a maximum load current of 100 mA per channel at 26.4 V DC.
3. What is the voltage range for field power supply? The field power supply voltage range for this module is 20.4 V DC to 26.4 V DC. The module operates within this range to power connected field devices.
