ADR541-P10 S1 Data sheet
|
|
Dimensions:3.2x10.7x13cm
|
Input range：0 to 780 mA
|
Relative Humidity：0 to 90 %RH
|
Product Origin: Japan
|
|
Weight: 0.26KG
|
voltage ：24 V DC, 25 mA
|
Operating temperature range：5 to +65 °C
|
|
Relay Output Module (16-Channel, 24 to 110 V DC/100 to 240 V AC, Isolated)
|
|
HOLD : Reset all the output channels after outputting all pulse signals when a fallback is detected.
|
|
OFF : Resets all the output channels immediately to off when the fallback action is triggered.
|
|
ADR541-P10 S1 describe
|

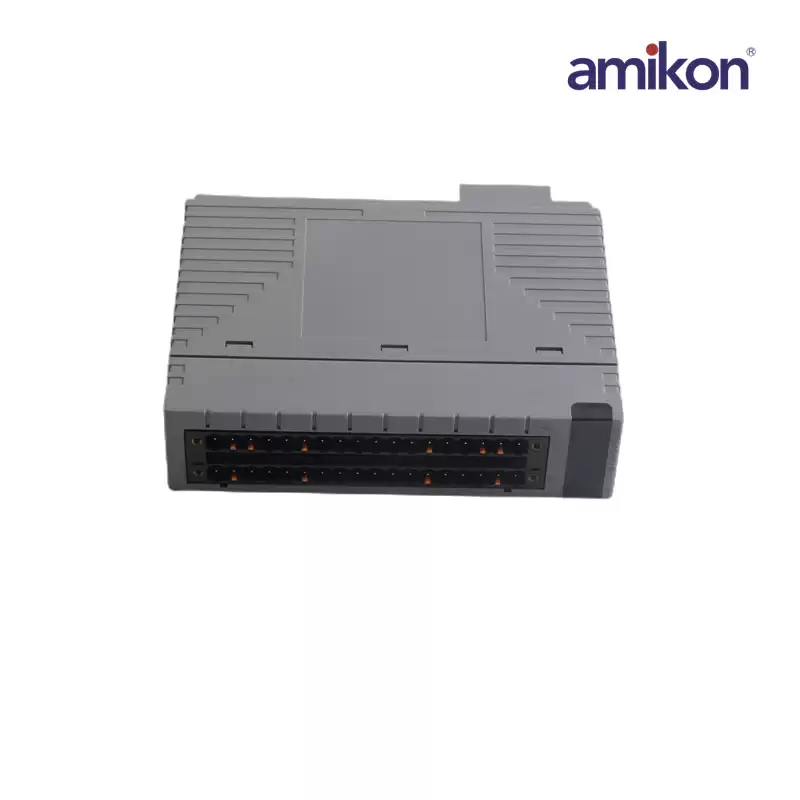

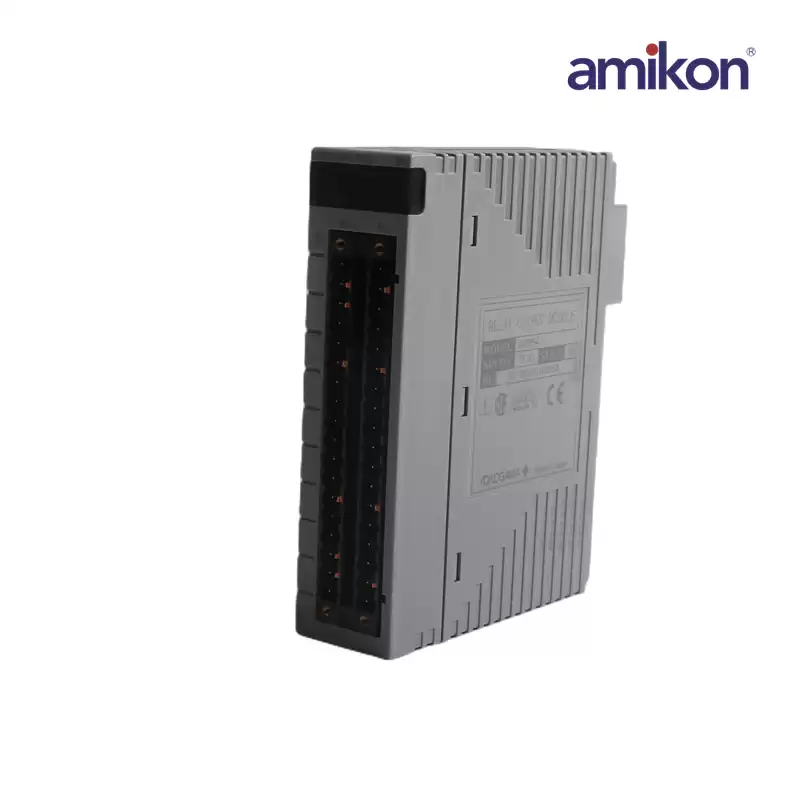

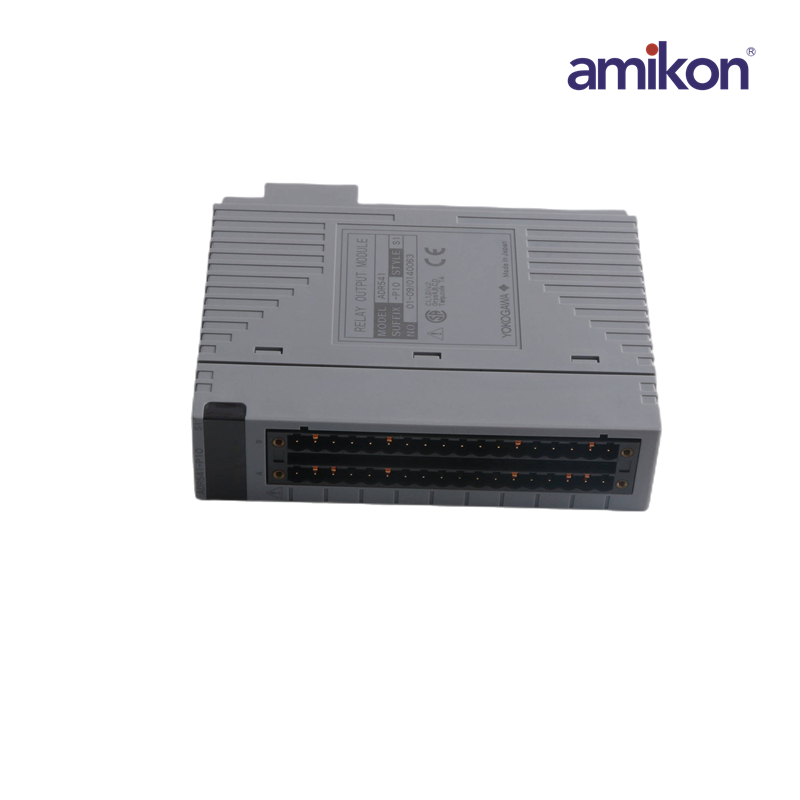

YOKOGAWA ADR541-P10 S1 is Relay Output Module.The Relay Output Module outputs the 16-channel relay contact signals. Maximum 8 A is allowed per common. Connect a spark killer diode when driving DC relay.The relay cannot be replaced with new one. If it comes to the end of its life, the module should be replaced.
The NIU interfaces analog and contact I/O signals from the field with the Field Control Unit (FCU) via an N-ESB bus or an optical ESB bus. An I/O unit consists of "I/O Adaptors and a Nest for I/O Adaptor" or "multi-channel I/O modules (1 to 4 units)," which interfaces field signals to NIU.
|
|
Parts delivered worldwide
|
Award-winning service
|
We deliver worldwide
|
Full 12-monthwarranty
|
More than 25 in stock
|
