Products Detail:

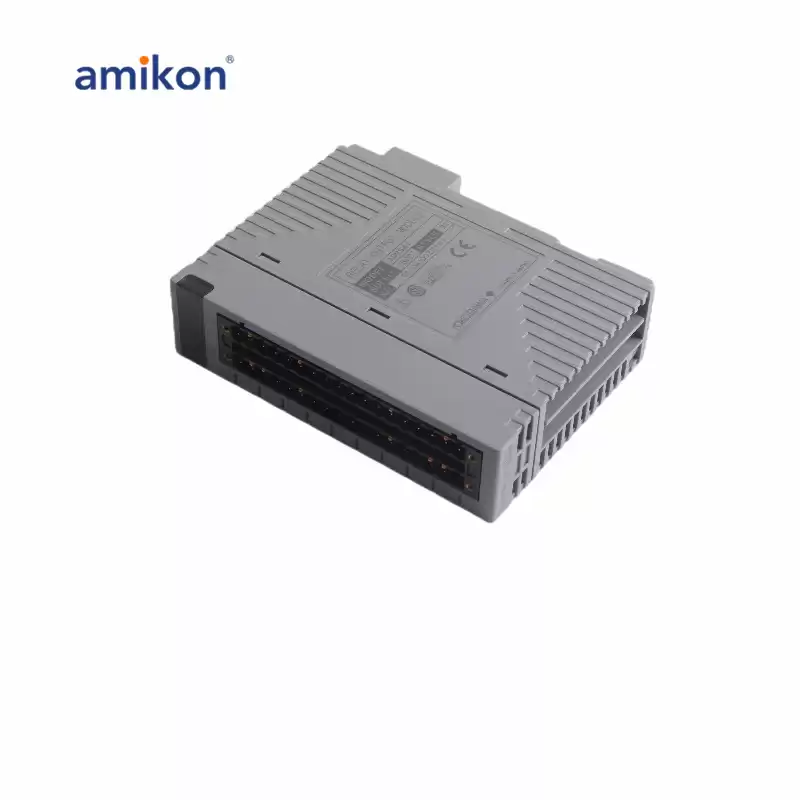

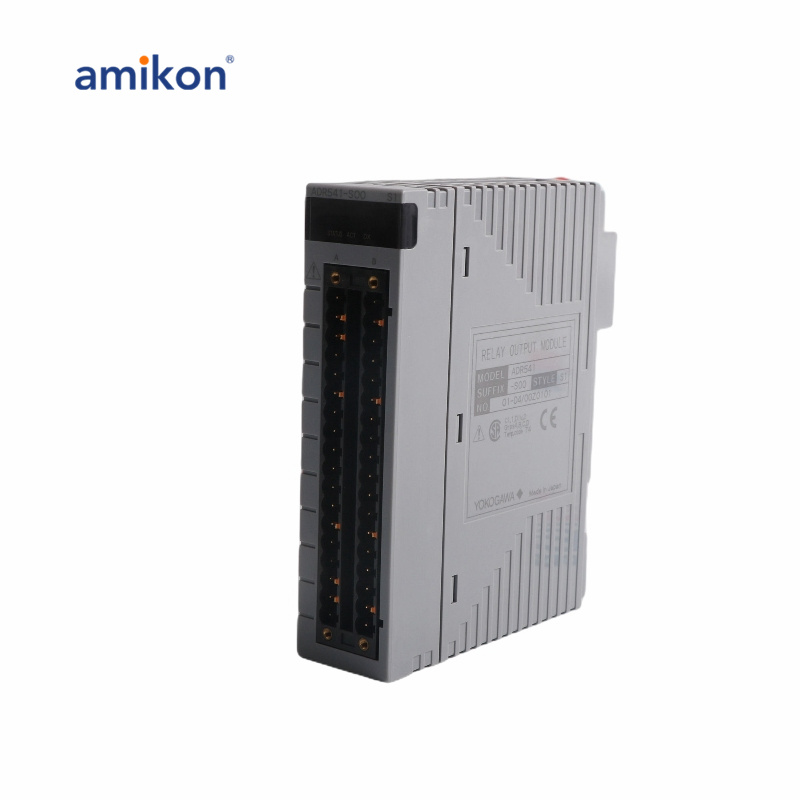

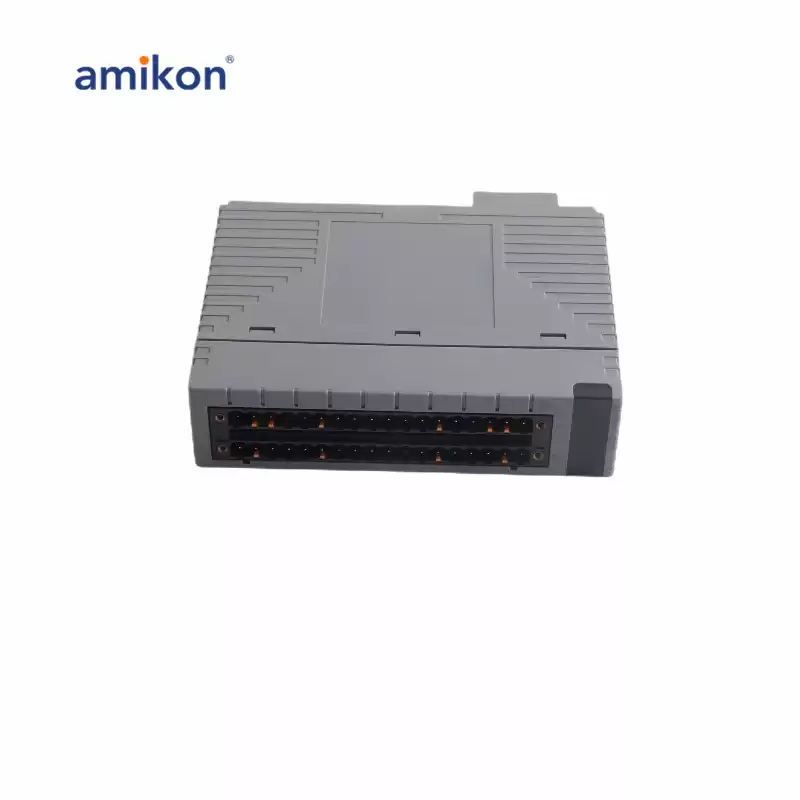

The ADR541-S00 S1 Relay Output Module is a 16-channel, isolated digital output module designed to handle relay contact signals. It operates with an input voltage range of 24 to 110 V DC or 100 to 240 V AC, making it versatile for various industrial applications. The module is capable of being used in a dual-redundant configuration for enhanced reliability.
Key Specifications:
Number of Output Channels: 16 channels
Input Voltage: 24 V DC, 25 mA
Field Power Supply Voltage: 20.4 to 26.4 V DC
Output ON Voltage (Maximum): 2 V DC
Leak Current (when Output OFF): 0.1 mA
Output Format: Current sink
Rated Applied Voltage: 24 V DC
The module is designed with high reliability but has a non-replaceable relay. Once the relay reaches the end of its service life, the entire module will need to be replaced. This relay output module ensures safe, isolated switching for a variety of control applications in critical systems.
FAQ for ADR541-S00 S1 Relay Output Module:
1. What is the function of the ADR541-S00 S1 Relay Output Module?
The ADR541-S00 S1 Relay Output Module is used to handle 16 channels of relay contact signals in industrial automation systems. It provides isolated relay outputs for controlling various field devices, such as actuators or alarms.
2. What is the input voltage range of the ADR541-S00 S1 Relay Output Module?
The module operates with an input voltage range of 24 to 110 V DC or 100 to 240 V AC, allowing it to be compatible with various power sources commonly used in industrial environments.
3. Can the relay be replaced if it fails?
No, the relay in the ADR541-S00 S1 module cannot be replaced individually. If the relay reaches the end of its service life, the entire module will need to be replaced.
