About product :

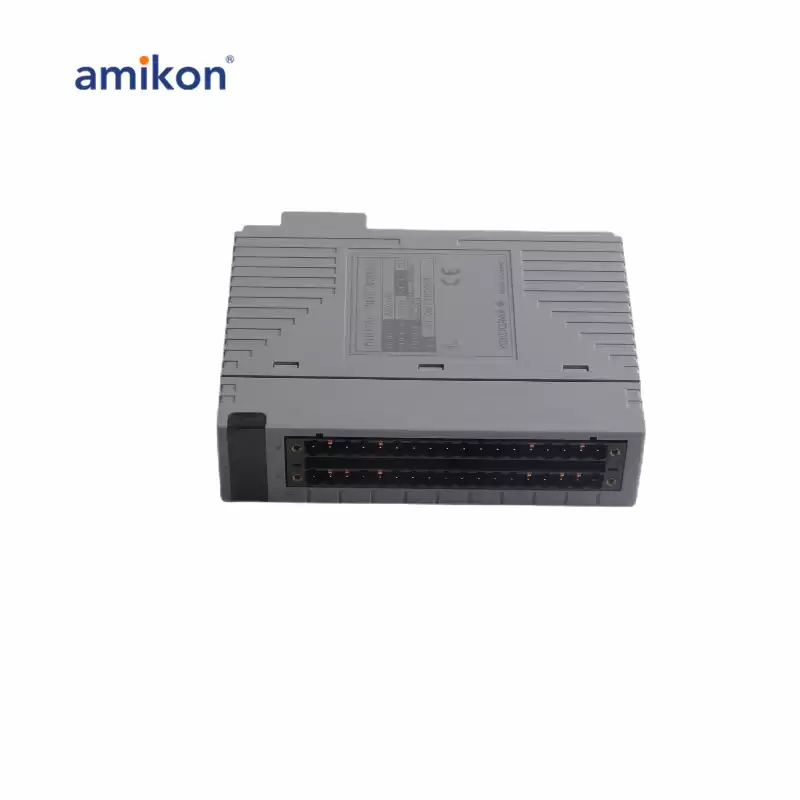

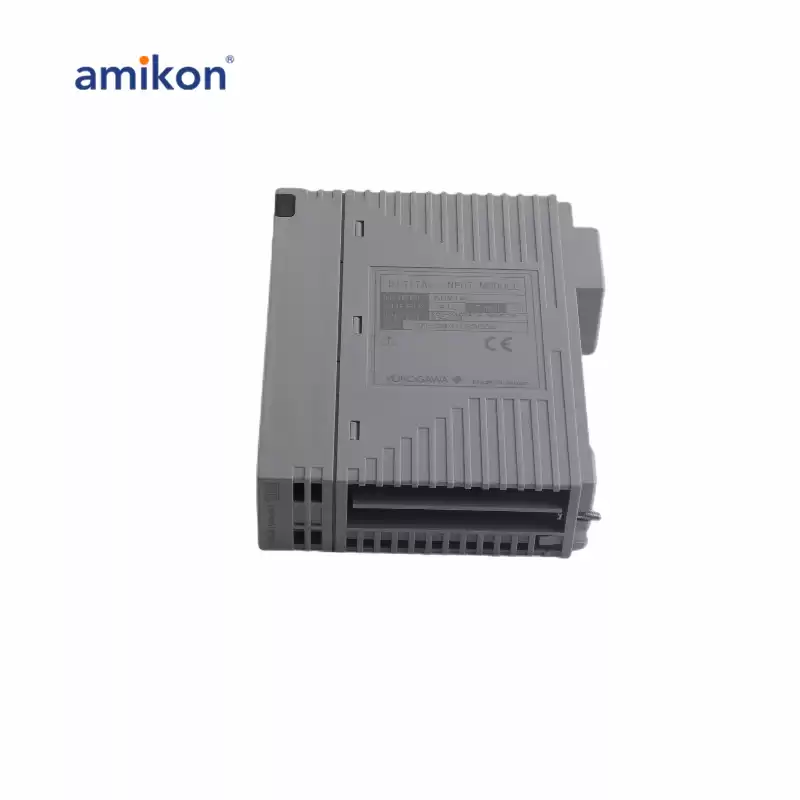

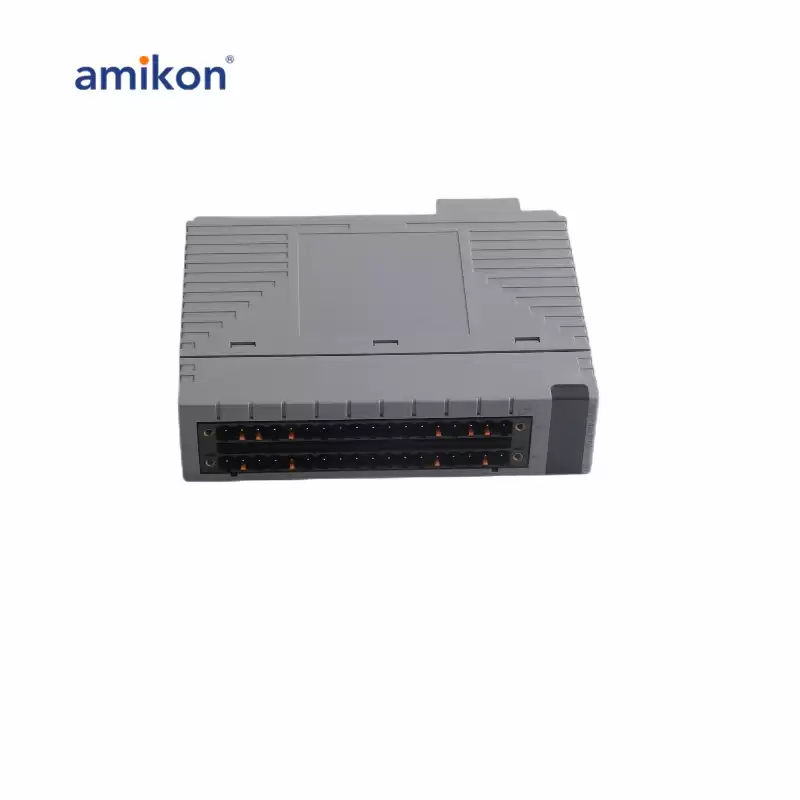

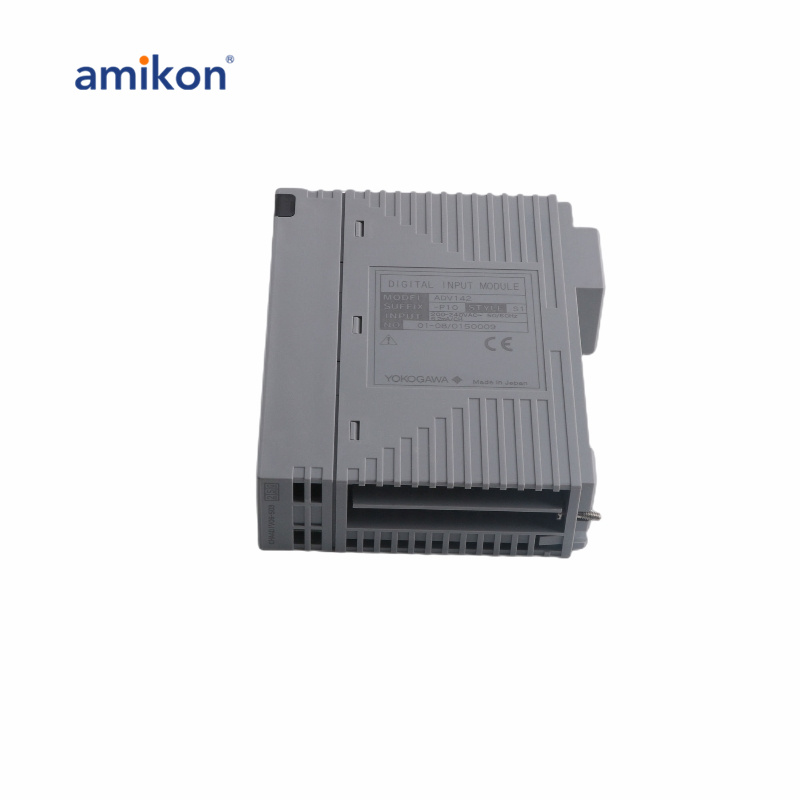

The ADV142-P10 S1 is a Digital Input Module designed to handle 220 to 240 V AC, Isolated inputs. Key specifications include:
Ambient Humidity: For normal operation, the module should be used in environments with humidity ranging from 5% to 95% RH (without condensation). It can also be transported or stored under similar humidity conditions.
Temperature Change Rate: The module should be used in environments with a temperature change rate of ±10 °C/h during normal operation and ±20 °C/h during transport or storage.
Power Supply: The module supports multiple voltage ranges, including 100 to 120 V AC ±10%, 220 to 240 V AC ±10%, and 24 V DC ±10%. It operates with a frequency range of 50/60 ±3 Hz and a distortion factor of 10% or less.
Voltage Peak Values: The peak values for the input voltages are 125 V or more for the 100 V system and 274 V or more for the 220 V system.
Instantaneous Power Failure: The module can handle instantaneous power failures of 20 ms or less when receiving the rated AC voltage.
DC Power Supply Ripple: The ripple rate for the DC power supply should not exceed 1% peak-to-peak (p-p).
This module is suitable for applications requiring high reliability in controlling or monitoring digital signals from industrial AC systems, while also accommodating temperature and humidity fluctuations within specified limits.
FAQ:
1. What is the operating voltage range for the ADV142-P10 S1 module?
The ADV142-P10 S1 operates with a voltage range of 100 to 120 V AC ±10%, 220 to 240 V AC ±10%, and 24 V DC ±10%.
2. What is the maximum frequency the module supports?
The module supports a frequency range of 50/60 ±3 Hz.
3. What is the power supply ripple limit for the DC supply?
The DC power supply ripple rate should be 1% peak-to-peak (p-p) or less for proper operation.
