About product :

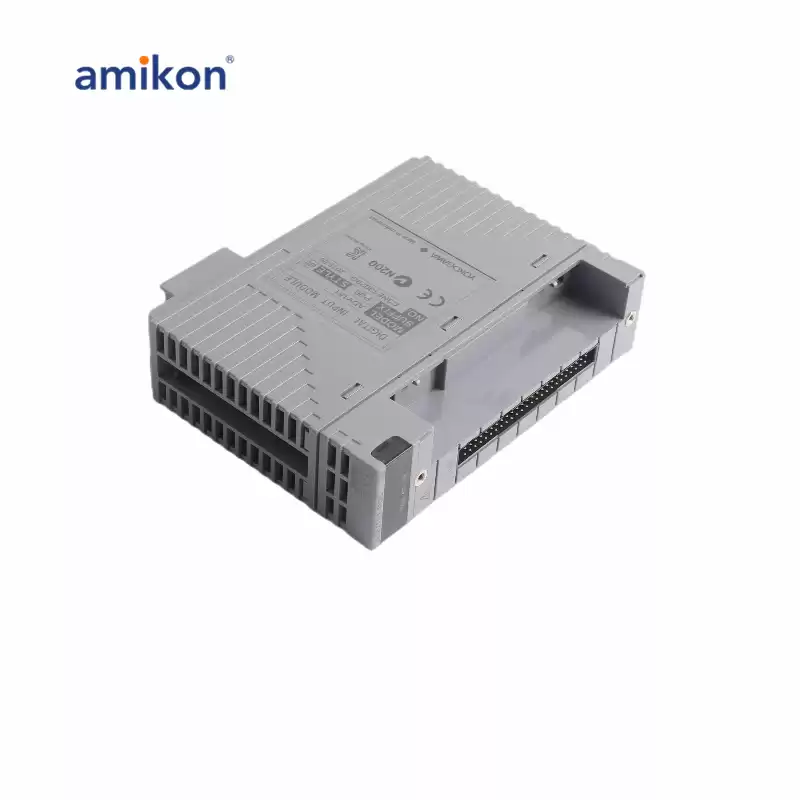

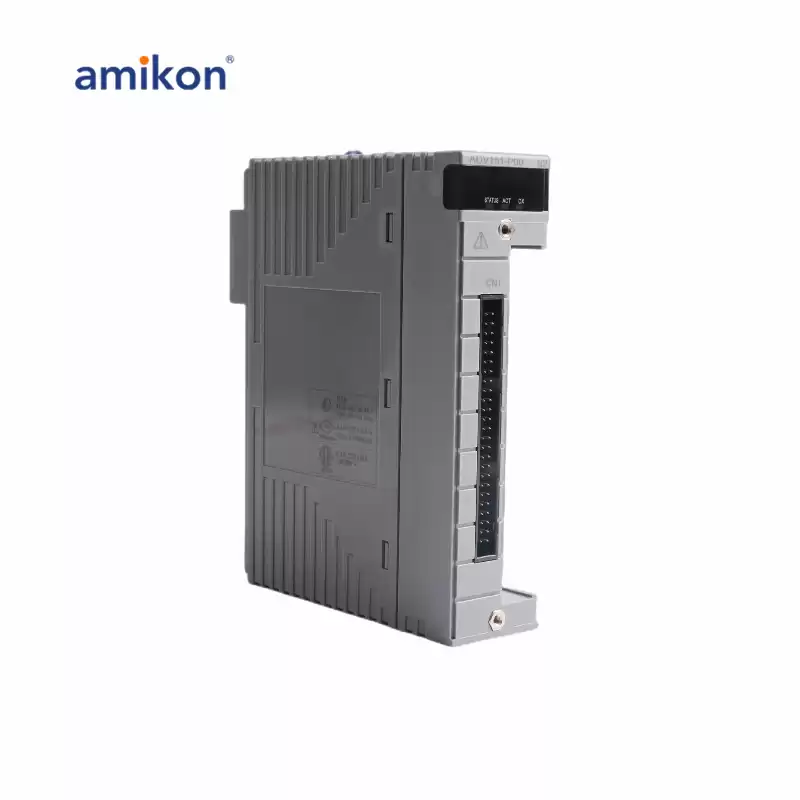

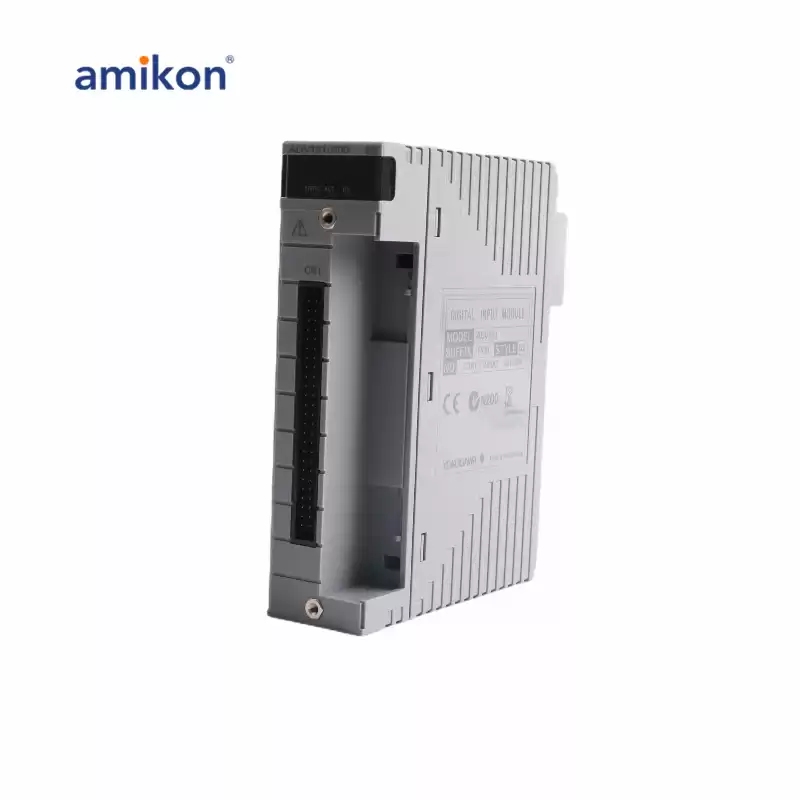

The ADV151-P00 S2 Digital Input Module is a 32-channel, 24 V DC isolated module designed to receive ON/OFF signals from the field. This module can be used in dual-redundant configurations along with ADV151 and ADV161 modules, providing flexibility and reliability in various system setups.
Key specifications include:
Withstanding voltage: 500 V AC between the input signal and system when using a dedicated cable.
The withstanding voltage for using MIL connector cables depends on the specific electrical specifications of the cable.
Signal polarity: All voltage input signals (24 V DC) must have the same polarity.
Additionally, ADV151-E cannot be installed in the ER Bus Node Unit. The ADV151, ADV157, and ADV161 modules share common connections every 16 channels.
FAQ:
1.Can the ADV151 module be used in dual-redundant configurations?
Yes, the ADV151, ADV157, and ADV161 modules support dual-redundant configurations, providing enhanced reliability and fault tolerance in critical systems.
2.What is the voltage specification for input signals?
The ADV151 module accepts 24 V DC input signals. It is important that all connected voltage input signals share the same polarity to ensure correct operation.
3.What is the withstanding voltage for the module?
The ADV151-P00 S2 module has a withstanding voltage of 500 V AC between the input signal and the system when using a dedicated cable. For MIL connector cables, the withstanding voltage depends on the specific electrical specifications of the cable being used.
