About product :

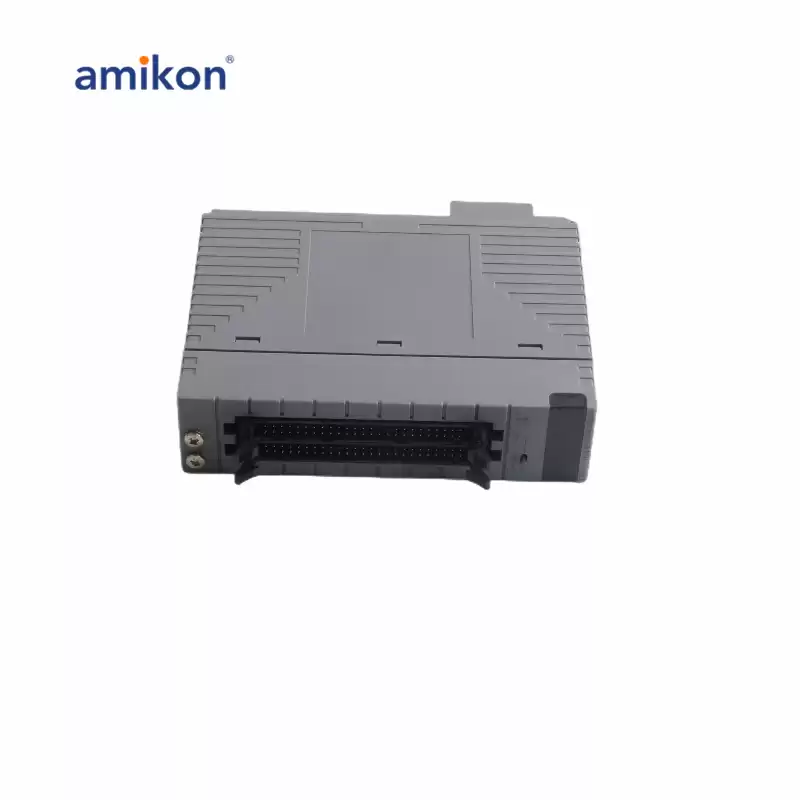

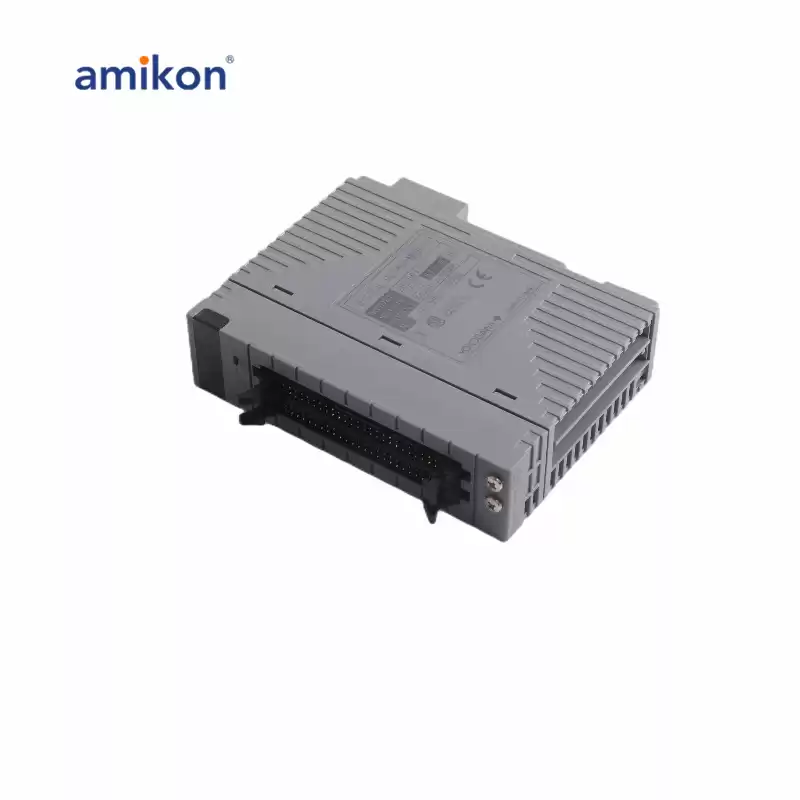

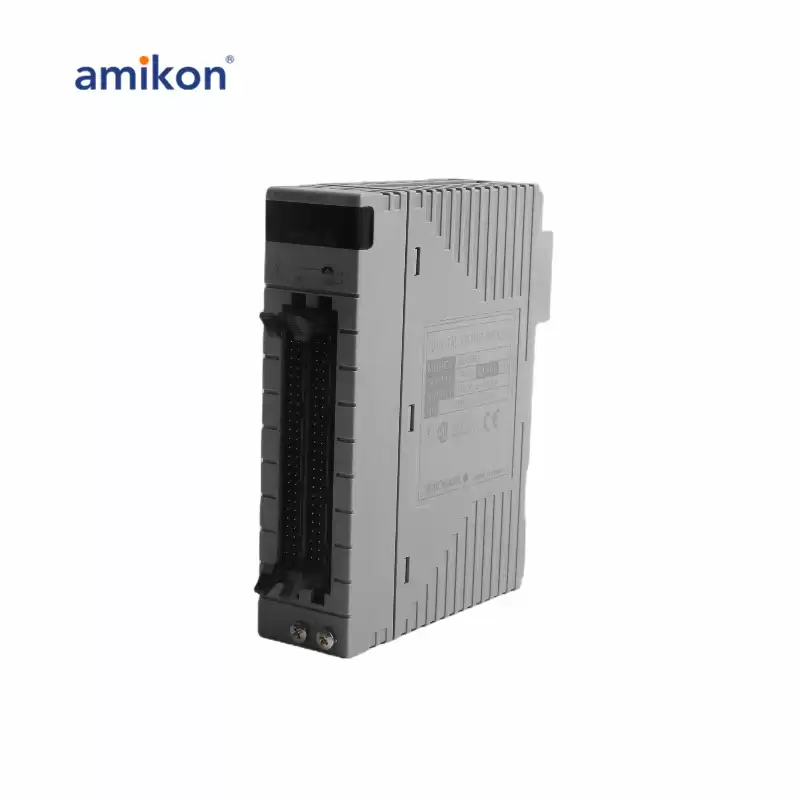

The ADV561-P10 S1 Digital Output Module provides 32 or 64 channels of transistor contact signals. It is capable of dual-redundant configuration when used with the ADV551 module. The module requires a spark killer diode for driving DC relays. The withstanding voltage for the system is 500 V AC when using a dedicated cable, while MIL connector cables' voltage tolerance depends on their specifications. Additionally, it can withstand 2 kV AC for 1 minute between the output signal and the system, and 500 V AC for 1 minute between commons, with the common-minus side every 16 channels.
FAQ:
1. Can the ADV561-P10 S1 be used in a dual-redundant configuration?
Yes, the ADV561-P10 S1 can be used in a dual-redundant configuration with the ADV551 module to enhance system reliability.
2. What is the withstanding voltage for the ADV561-P10 S1?
The ADV561-P10 S1 can withstand:
500 V AC when using a dedicated cable (between output signal and system).
2 kV AC for 1 minute between the output signal and the system.
500 V AC for 1 minute between commons, with the common-minus side every 16 channels.
3. What type of diode is needed for driving DC relays?
A spark killer diode is required when using the module to drive DC relays, to protect against voltage spikes.
