About product :

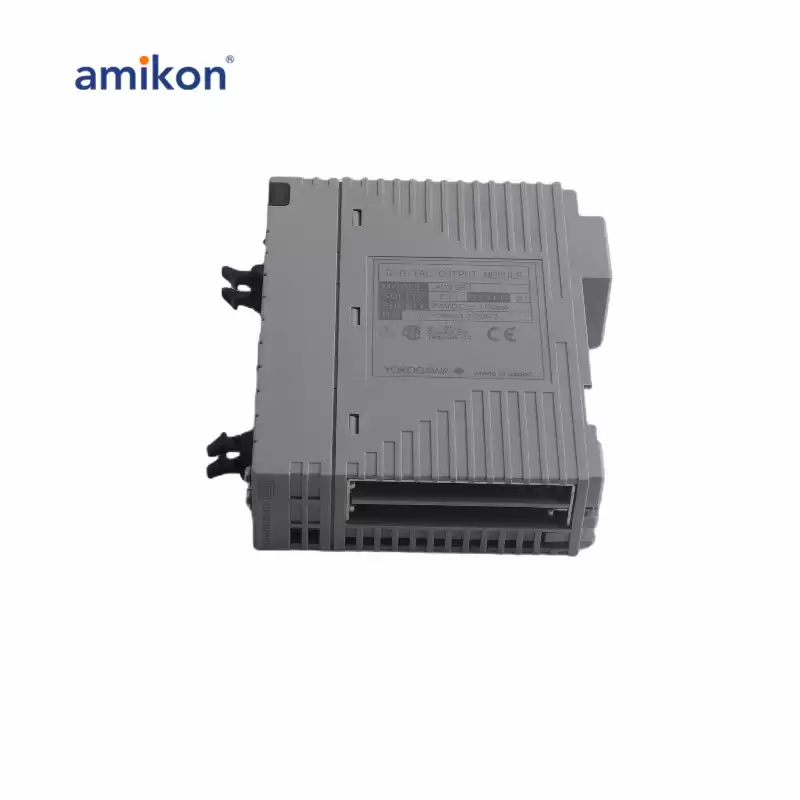

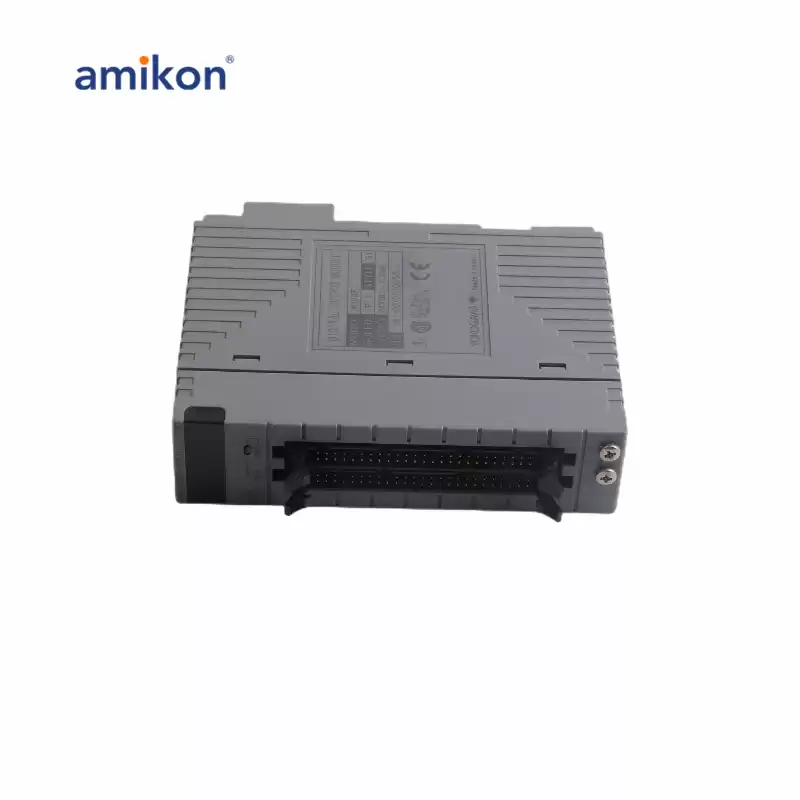

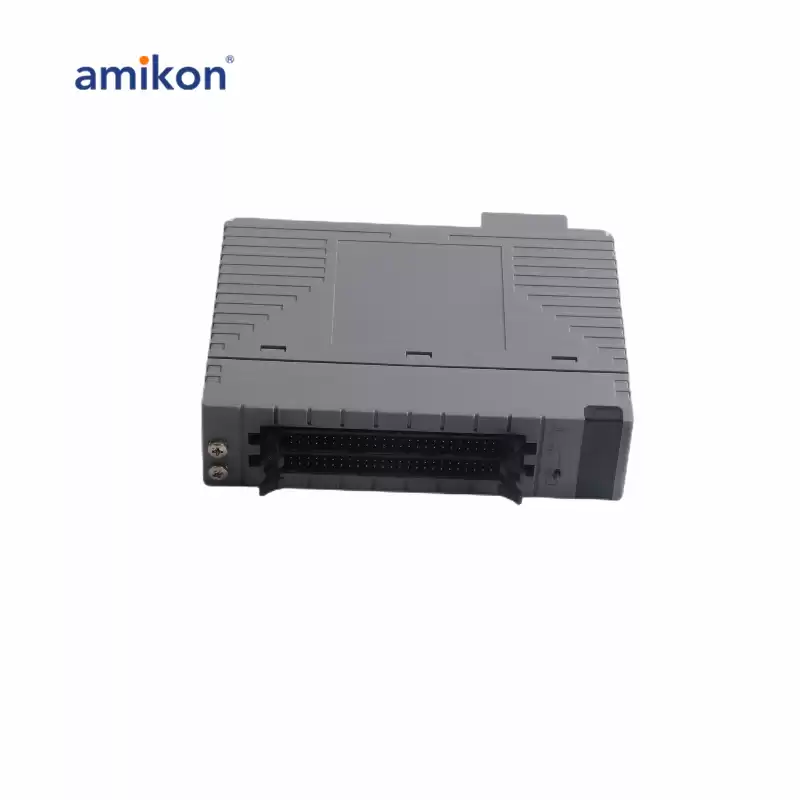

The ADV561-P11 S1 is a 64-channel digital output module designed for industrial automation systems. It outputs transistor contact signals and is capable of handling a voltage of 24 V DC with isolation to protect the system.
Key features include:
Dual Redundant Configuration: The ADV561 and ADV551 modules can be used in a dual-redundant setup for enhanced reliability.
External Power Supply: The module requires an external power supply rated at 24 V DC, with a voltage range of 20.4 to 26.4 V DC and a current draw of 100 mA.
Output ON Voltage: The maximum voltage when the output is ON is 2 V DC.
Connector Compatibility: It supports MIL connector cables, with the withstanding voltage depending on the specific electrical characteristics of the cable used.
These modules are built to withstand tough industrial environments, ensuring stable and safe operation in various control systems.
FAQ:
1. What is the main function of the ADV561-P11 S1 module?
The ADV561-P11 S1 is a 64-channel digital output module that outputs transistor contact signals for industrial automation systems. It operates at 24 V DC and can be configured in a dual-redundant setup with the ADV551 module for enhanced reliability.
2. Can the ADV561-P11 S1 be used in a dual-redundant configuration?
Yes, the ADV561-P11 S1 can be used in a dual-redundant configuration, typically paired with the ADV551 to provide redundancy and minimize system downtime in critical applications.
3. What is the voltage range for the external power supply?
The external power supply for the module should be 24 V DC, with a voltage range from 20.4 to 26.4 V DC and a current draw of 100 mA.
