Description:

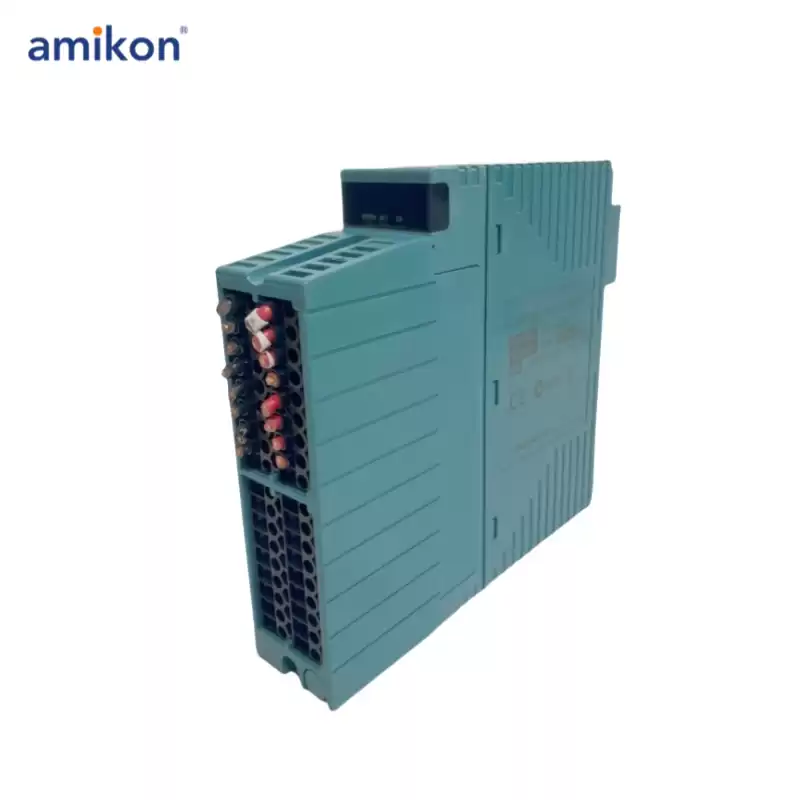

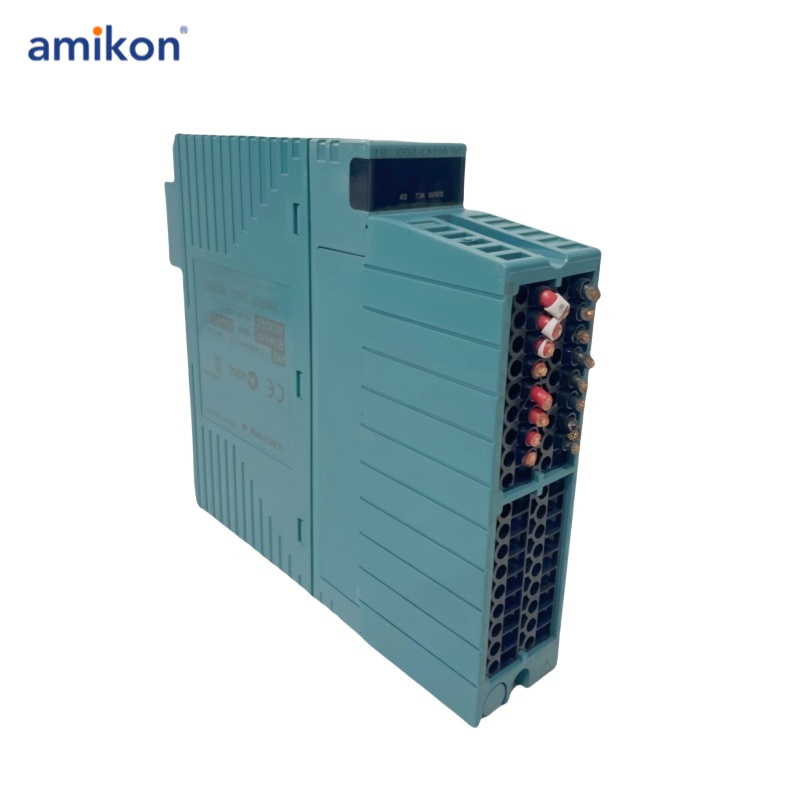

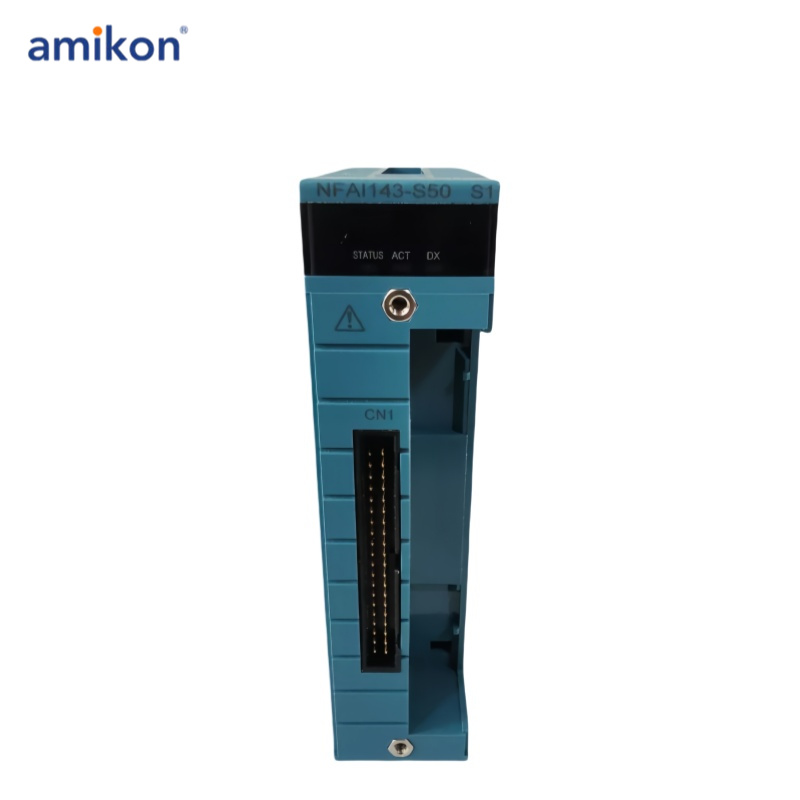

Yokogawa Analog Input Module NFAI143-S01 S1 is a high-precision analog input module designed for industrial automation and process control systems. This module can handle multi-channel analog signal inputs, supporting connections with various sensors, including temperature, pressure, and flow sensors. The NFAI143-S01 S1 module features excellent signal acquisition accuracy and stability, ensuring reliable operation in complex industrial environments.
Specifications:
Number of input channels: 16-channel input, isolated
Input signal:4 to 20 mA
Allowable input current :24 mA
Withstanding voltage :Between input and system: 1500 V AC for 1 minute (*3)
Accuracy :±0.1% of full scale
Data refresh cycle:10 ms
Input step response time:100 ms
Transmitter power supply:24.0 to 25.5 V (output current limit:25 mA)
Setting of 2-wire or 4-wire transmitter :For each channel by setting pin
Temperature drift :Max. ±0.01%/°C
Maximum current consumption :230 mA (5 V DC) /540 mA (24 V DC)
Weight :0.3 kg
Frequently Asked Questions:
1.What are the main functions of this module?
Answer: The NFAI143-S01 S1 module is used to receive and process multi-channel analog signal inputs, supporting connections with different types of sensors.
2.What types of input signals does this module support?
Answer: This module supports various types of analog input signals, including voltage and current signals. Please refer to the product manual for specific details.
3.How do I install this module?
Answer: Before installation, ensure that the power supply is turned off. Follow the guidance in the user manual to correctly connect the input ports and ensure secure connections.
