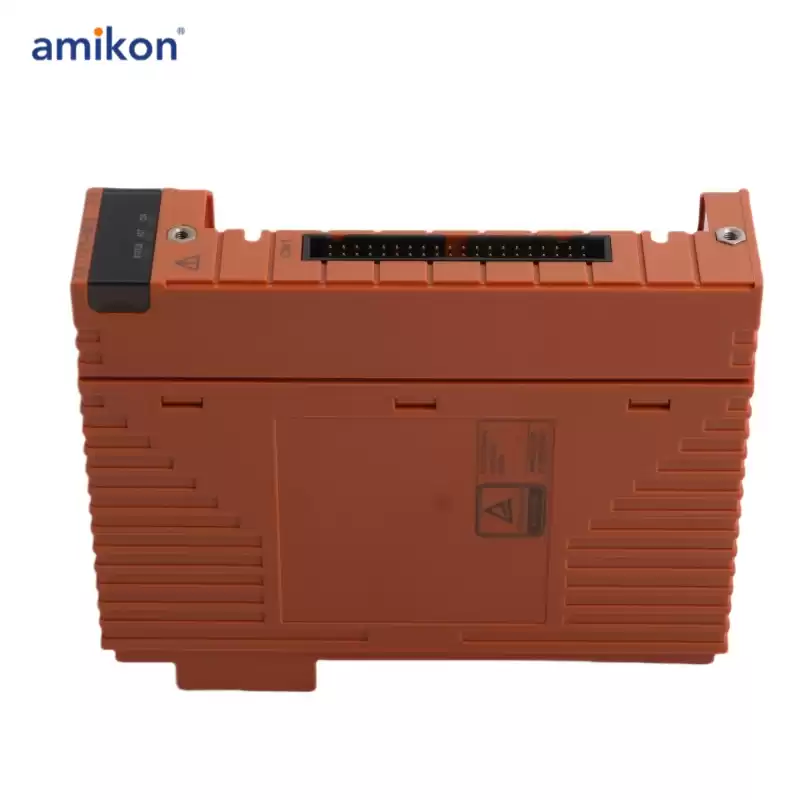

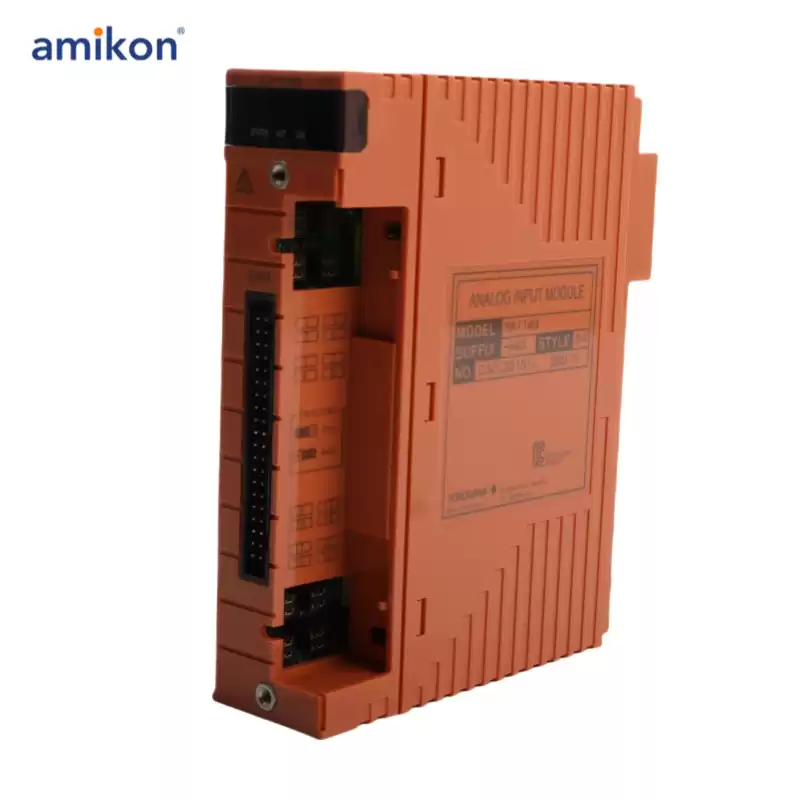

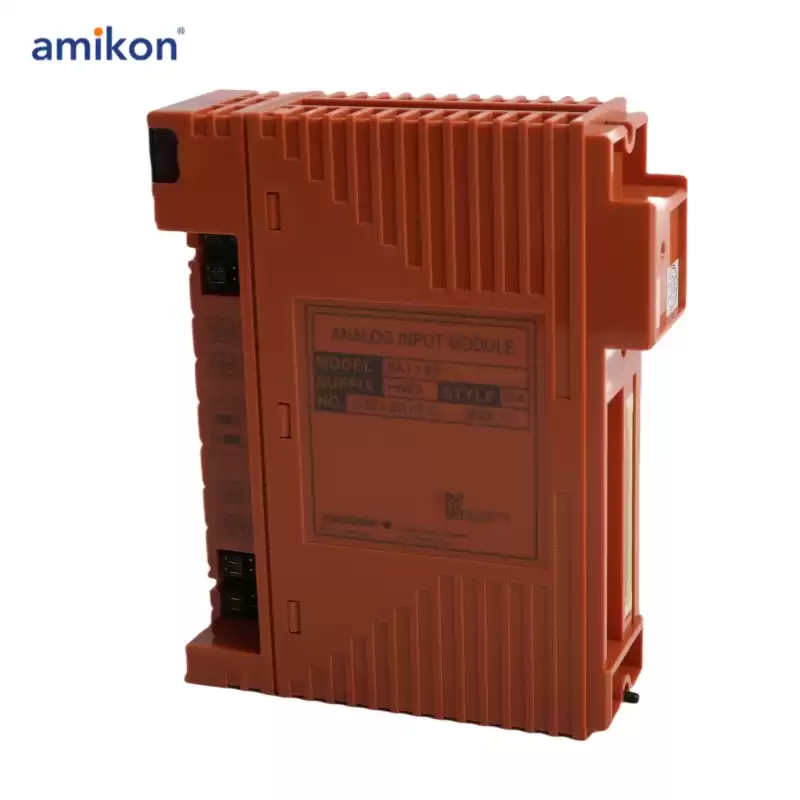

Yokogawa Analog Input Module SAI143-H03 S2

Category

Specification

Model

SAI143-H03 S2

Number of Input Channels

16 channels, module isolation (*5)

Rated Input Range

4 to 20 mA

Permissible Input Range

0 to 25 mA

Data Update Frequency

40 ms

Temperature Drift

±16 µA/10 °C

Transmitter Power Supply

16.15 V minimum (at 20 mA), 26.4 V maximum (at 0 mA)

Output Current Limit

25 mA

2/4-Wire Setting

Individual channel setting, changed by setting pins

Withstand Voltage

1.5 kV AC between input signal and system for 1 minute (*2)

Maximum Current Consumption (5 V System)

320 mA

Maximum Current Consumption (24 V System)

550 mA

Support PRM

Available (SAI143-H)

Transmitter Power Supply ON/OFF Function

Available in 2-wire setting, for all 16 channels at the same time
