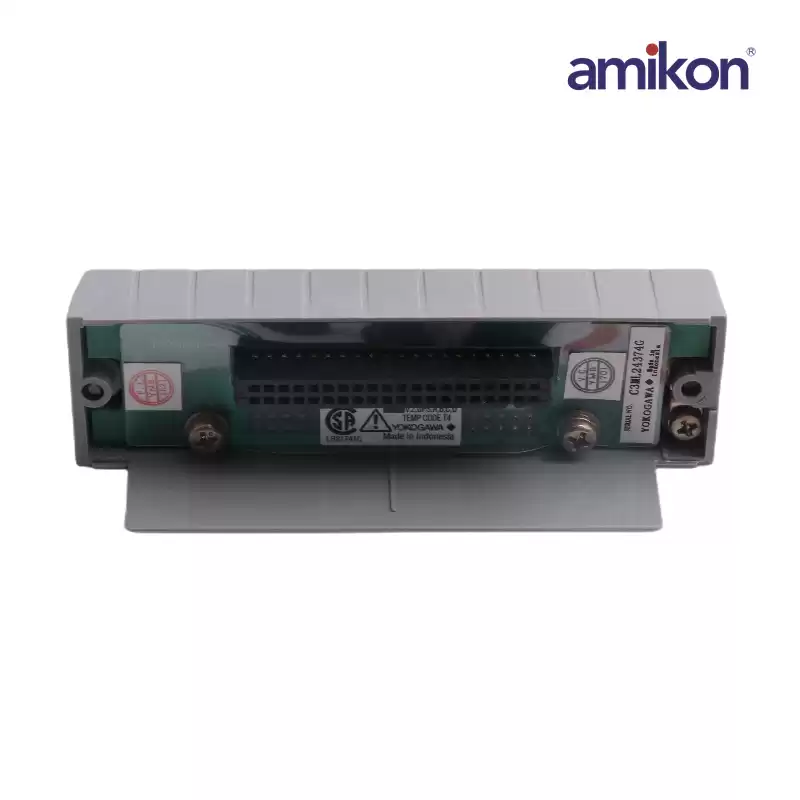

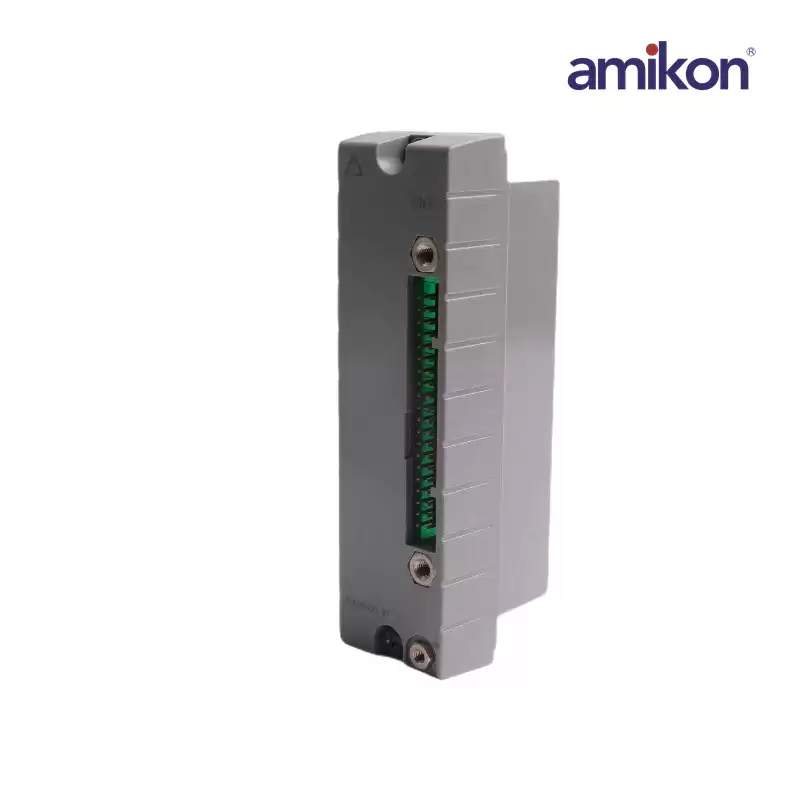

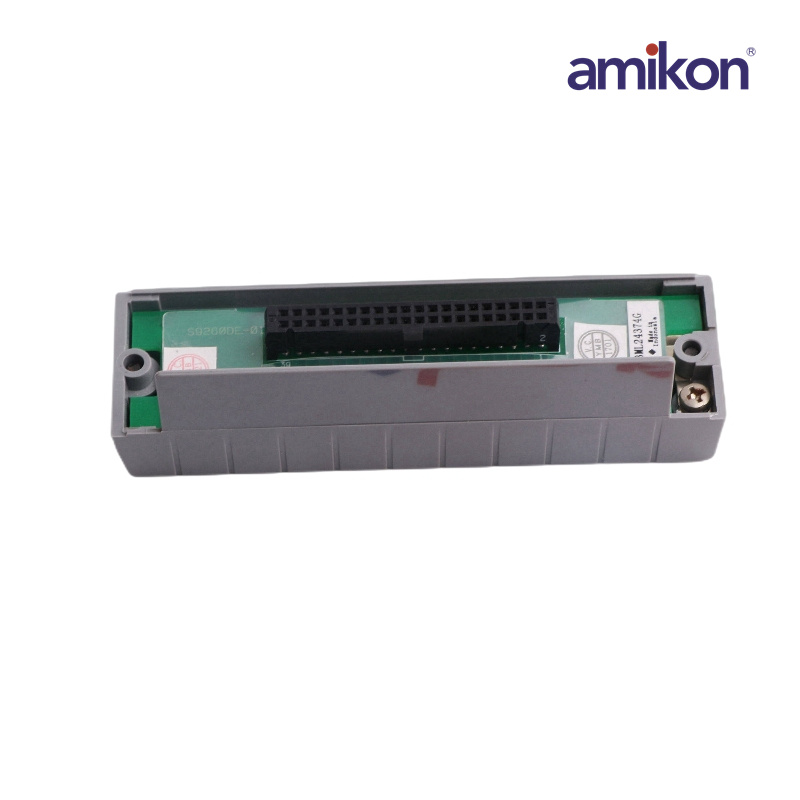

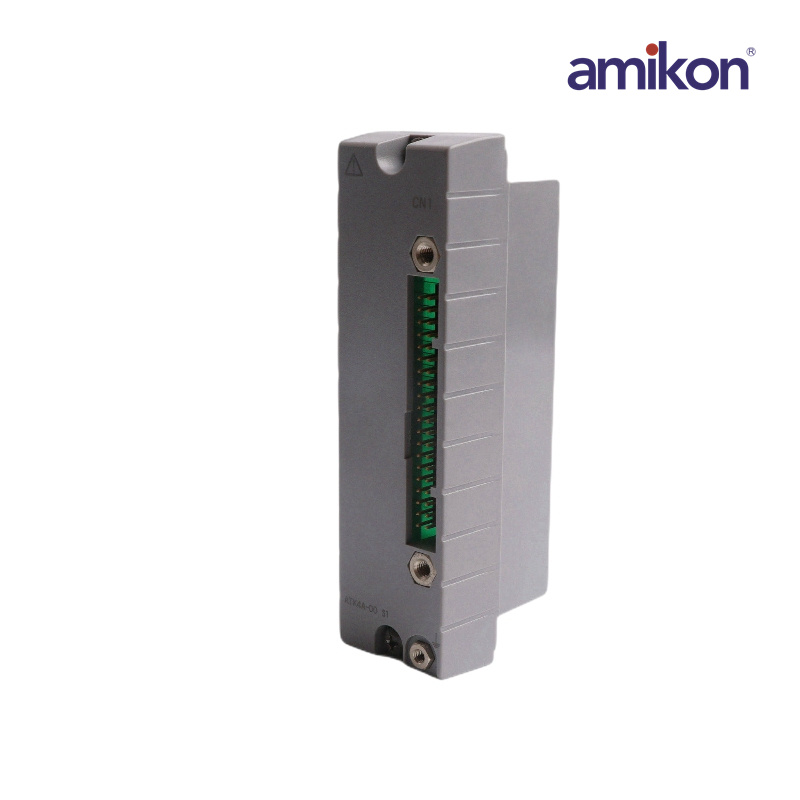

YOKOGAWA ATK4A-00 S1 KS Cable Interface Adapter

Manufacturer/Brand：YOKOGAWA

Product Package：Original Package

Part Number：  ATK4A-00 S1

Shipping Term：TNT DHL FEDEX EMS UPS

I/O signal：4 to 20 mA

Weight:：0.06kg

Temperature drift：±16 µA/10 °C

Dimensions ：3.3x3.7x11.4cm

YOKOGAWA ATK4A-00 S1 is 16-Channel KS Cable Interface Adapter.The Current Input Module receives signals of 4 to 20 mA. The Current I/O Module receives and outputs signals of 4 to 20 mA. These two modules are isolated between the field and the system as well as between each channel. These two modules can be used in dual redundant configuration.

This voltage is developed between connecting terminals for this module’s 2-wire transmitter. When calculating if transmitter minimum operating voltage requirement will be satisfied, remember to allow for voltage drop in external wiring.When installing to a remote node that conforms to the temperature environment and using it under the temperature environment (60 to 70 ˚C), the allowable load resistance is 200 to 750 Ω.
