About product:

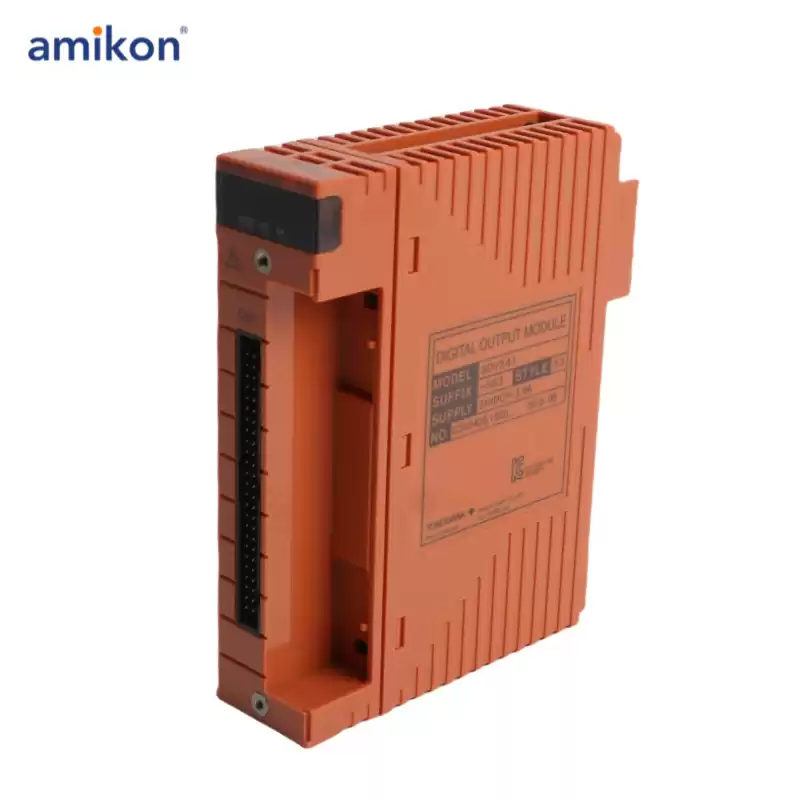

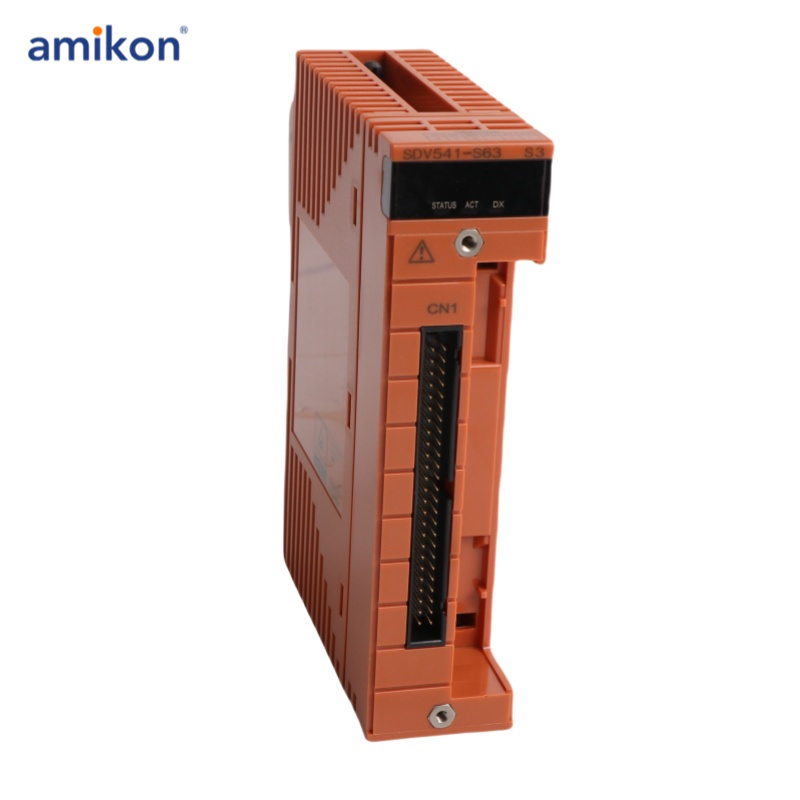

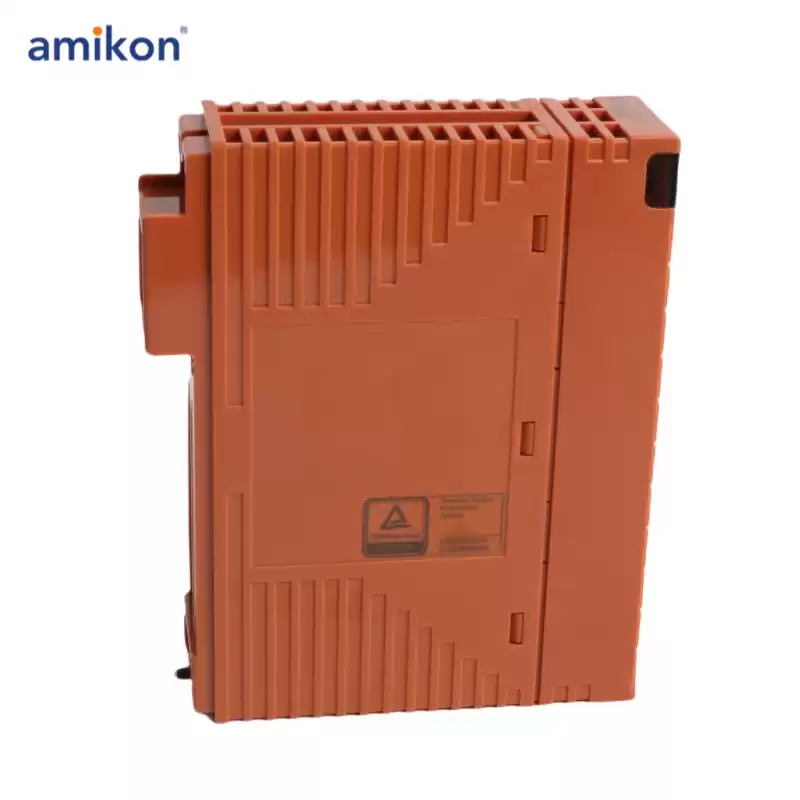

The Yokogawa Digital Output Module SDV541-S53 is designed for use in process control systems, providing reliable and precise control over digital output signals. This module is part of Yokogawa's field control system and plays a critical role in interfacing the control system with field devices such as relays, actuators, and other digital output devices.
|
Item
|
Specification
|
|
Model
|
SDV541
|
|
Number of Outputs
|
16-channel, module isolation (*5)
|
|
Output Voltage
|
24 V DC
|
|
Output Voltage Drop
|
1 V maximum
|
|
External Power Supply Rating
|
24 V DC, 3.4 A minimum
|
|
External Power Supply
|
24 V DC + 20 % / -10 % (*1)
|
|
Current Capacity
|
3.4 A
|
|
Maximum Leak Current at Output Off Status
|
1.6 mA
|
|
Output Format
|
Current source
|
|
Maximum Load Current
|
0.2 A/output line (3.2 A in total output line) (*2) (*5)
|
|
Minimum Load Current
|
35 mA
|
|
Load Resistance Range
|
120 to 685 Ω (*3)
|
|
Output Response Time
|
30 ms maximum
|
|
Withstand Voltage
|
2 kV AC (between output signal lines and system), 16-point input lines collectively connected (negative lines) (*4)
|
|
Current Consumption
|
300 mA maximum (5 V DC)
|
|
|
150 mA maximum (24 V DC)
|
|
Weight
|
0.29 kg (For pressure clamp terminal block or MIL cable)
|
|
|
0.31 kg (With dedicated signal cable interface adapter)
|
|
External Connection
|
Pressure clamp terminal, MIL cable, Dedicated signal cable (AKB331, AKB651)
|
