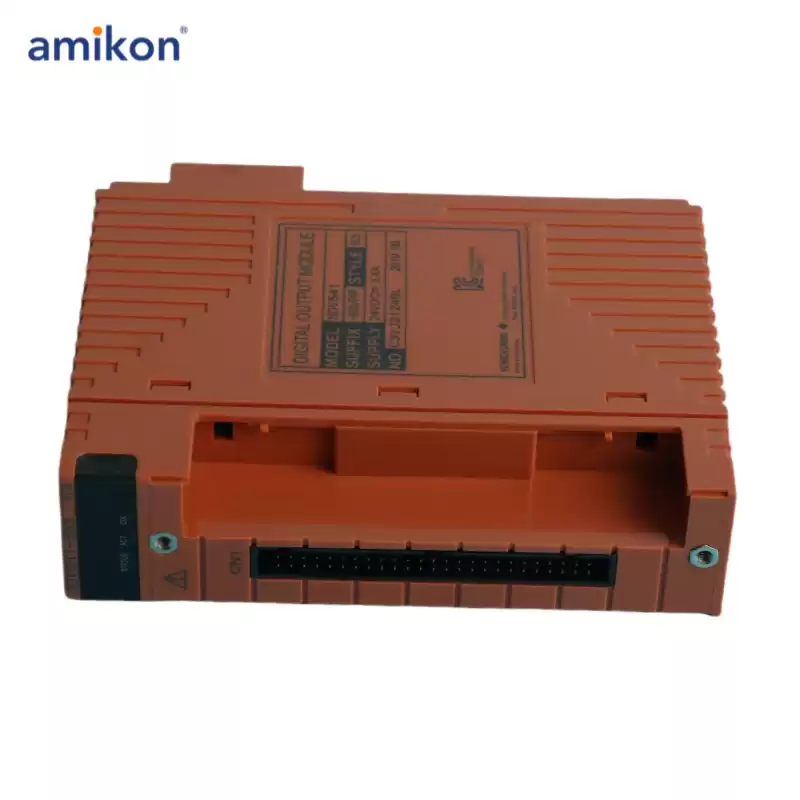

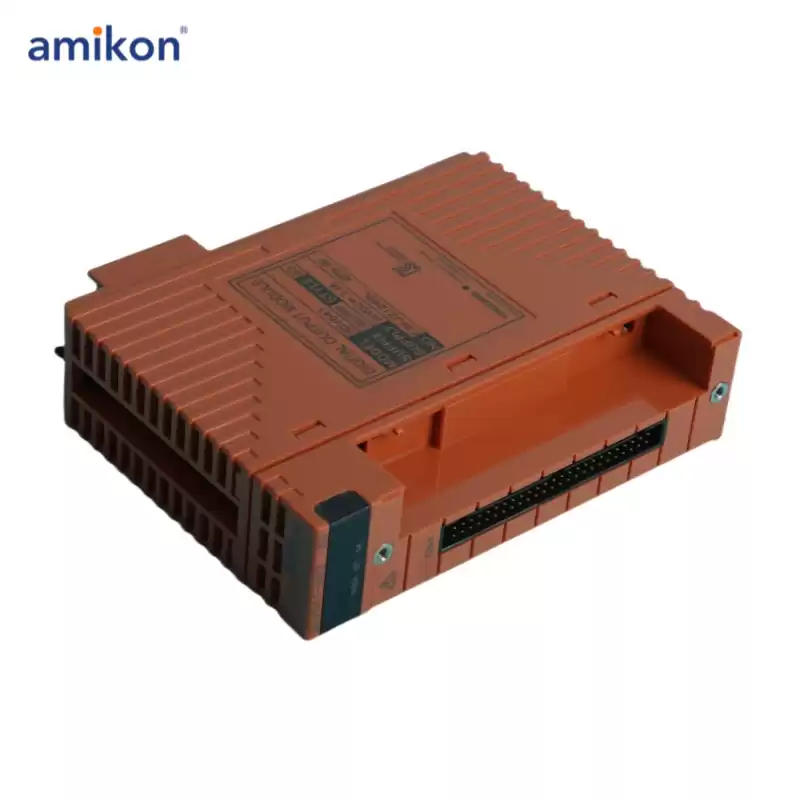

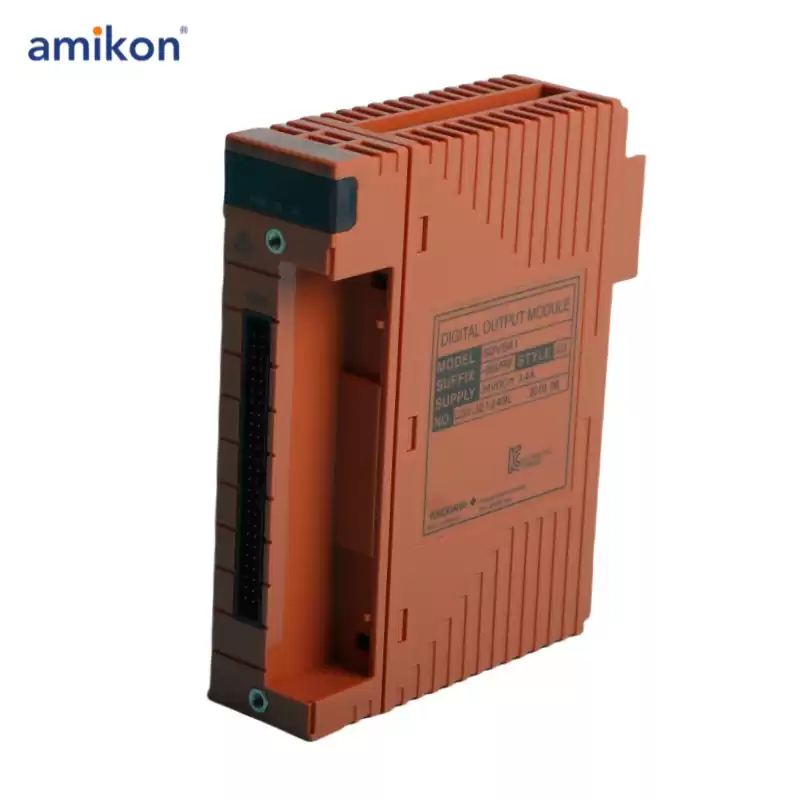

Yokogawa Digital Output Module SDV541-S33/PRP S3
Brand new and original sealed//Same Day Shipment
- Dimensions7.6 cm x 12.7 cm x 12.7 cm
- Weight0.7kg
- Country of OriginJapan
- Brand/ManufaturerYokogawa
- Warranty PeriodOne Year Warranty
- Payment Term100% Advance Payment T/T Bank Wire Transfer
|
Item |
Specification |
|
Model |
SDV541-S33/PRP S3 |
|
Number of Outputs |
16-channel, module isolation (*5) |
|
Output Voltage |
24 V DC |
|
Output Voltage Drop |
1 V maximum |
|
External Power Supply Rating |
24 V DC, 3.4 A minimum |
|
External Power Supply |
24 V DC + 20 % / -10 % (*1) |
|
Current Capacity |
3.4 A |
|
Maximum Leak Current at Output Off Status |
1.6 mA |
|
Output Format |
Current source |
|
Maximum Load Current |
0.2 A/output line (3.2 A in total output line) (*2) (*5) |
|
Minimum Load Current |
35 mA |
|
Load Resistance Range |
120 to 685 Ω (*3) |
|
Output Response Time |
30 ms maximum |
|
Withstand Voltage |
2 kV AC (between output signal lines and system), 16-point input lines collectively connected (negative lines) (*4) |
|
Current Consumption |
300 mA maximum (5 V DC) |
|
|
150 mA maximum (24 V DC) |
|
Weight |
0.29 kg (For pressure clamp terminal block or MIL cable) |
|
|
0.31 kg (With dedicated signal cable interface adapter) |
|
External Connection |
Pressure clamp terminal, MIL cable, Dedicated signal cable (AKB331, AKB651) |
