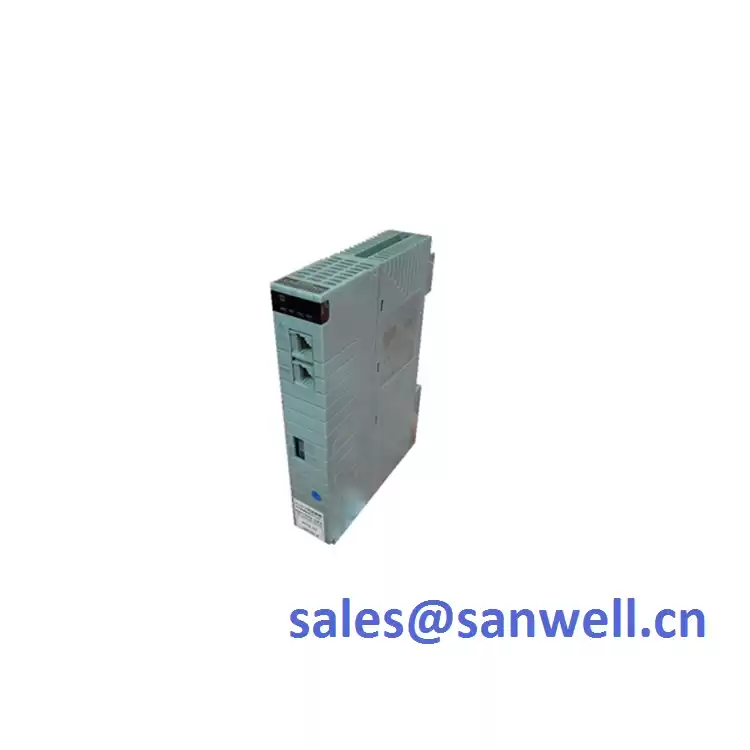

Yokogawa Motor AGS813 Servo Module new and Fast Shipping

Yokogawa Motor AGS813 Servo Module Fast ship/ Brand new

Manufacturer : Yokogawa

Product No. : AGS813

Product type :  Servo Module

Number of input channels ：4, isolated

Wiring type： 3 Wires; 5 Wires; 6 Wires (*1)

Excitation voltage： 5 Vrms at 30 mArms (*2)

Excitation current ：30 mArms (max)

Excitation frequency： 2.8 k, 3.0 k, 3.2 kHz; Selectable (independently)

Accuracy： ±1 % Input Voltage: 0.7 to 5 Vrms, Span: 2.5 Vrms minimum

Drift due to ambient temperature change： ±0.4 % / 10 °C

Input impedance ：Powered: 220 kΩ; Not powered: 100 kΩ

Allowable input voltage： ±30 Vpeak

External power supply ：+11.4 to +13.2 V, 0.3 A (*2) -13.2 to -11.4 V, 0.3 A (*2)

Number of input channels 4, isolated

Input signal 1 to 5 V

Accuracy ±4 mV

Drift due to ambient temperature change ±4 mV / 10 °C

Input impedance Powered: 1 MΩ; Not powered: 100 kΩ

Allowable input voltage 30 V DC

Filtering ：Collectively

Weight : 1Kg

Specification:

Brand: YOKOGAWA

Product Origin: JAPAN

Warranty: 1 Year

Payment: T/T, Western Union

Condition: New with original package

Lead Time: In stock

Model: AGS813
