Yokogawa Motor ALF111 communication module new and Fast Shipping

Yokogawa Motor ALF111 communication module Good Quality/ In stock







Yokogawa Motor ALF111communication module Fast ship/ Brand new



Manufacturer : Yokogawa

Part Number : ALF111

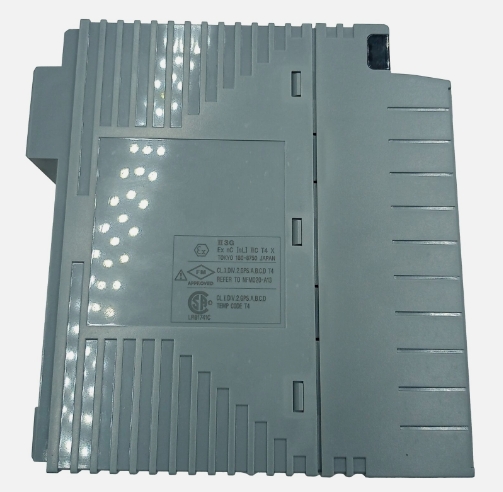

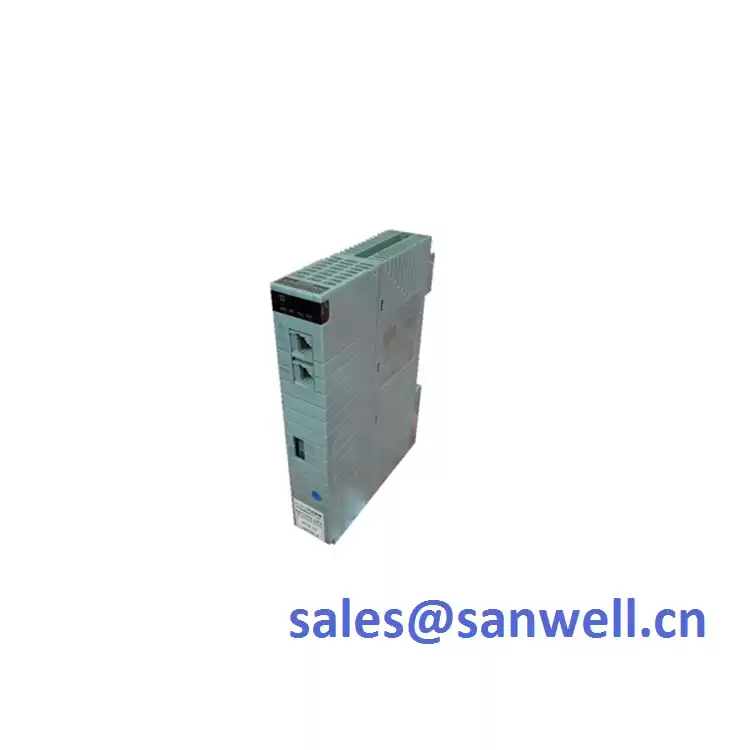

ALF111 Communication Module

Interface: Foundation fieldbus (low speed voltage mode)

                   4 ports (1 segment (*1) per port)

Transmission speed :31.25 kbps

Withstanding voltage: From field to system: 1500 V AC/minute

Bus connection (external connection):

• Pressure clamp terminals (removable terminal block with built-in terminators that can be switched on/off.

• Connects with terminal board via a dedicated cable.

Installation method :Mounted on ANB10, ANB11, AFV30, AFV40, A2FV50, or A2FV70

No. of control I/O channels (*2):

Max. 48 points/segment

(Complies with high- and medium-speed scanning cycle by specifying up to 6 points of I/O points as high-speed scanning type on the ER bus.)

No. of fieldbus devices: Max. 32 units per segment (*3) (ALF111 counts as one unit) (*4)

Communication functions: LAS function, Clock master function

Dual-redundancy :Enabled to set up two units of ALF111 installed in the annexed slots in the same node unit.

Current consumption :0.5 A or less

Withstanding Voltage: Between primary side and secondary side.

                                       Between channel and channel. 1500 V AC for 1 minute

Weight Approx. 0.40 kg



Specification:

Brand: YOKOGAWA

Product Origin: JAPAN

Warranty: 1 Year

Payment: T/T, Western Union

Condition: New with original package

Lead Time: In stock

Model:  ALF111





SHIPPING:

1.For the in stock items, we will ship to you within 3 days after received payment

2.We can shipping all over the world via DHL,UPS,FEDEX,TNT and EMS.

3.If you have shipping agent please tell us before shipment.

4.We will packing the parts with strong box, if you have any special needs, please notify to us.

5.We usually ship up to before 4:30 PM, after shipment we will send the tracking number to you. It will take 7~15 days to receive the packages.

6.When you receive the package, please email to us.

7.Please include all information when asking for cost on shipping, or it will slow the process down.

   1).What is your zip code?

   2).What is your company name if  you have one and your name?

   3).What is your phone number and extension if you have one?



Application Industry:



1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
