Product Discription
This installation/operation manual is attended to assist the user in the installation of the
instrument and wiring of field devices. A description of the various displays that can be observed
from the front panel is presented. The basic setup for process operation is included. More
detailed information is available in the instruction manual and any technical information manuals
referenced herein.
The single and dual loop controllers can be configured in one of three resident control strategies,
enabling it to be adapted to various process control requirements. Prior to the electrical
connection of any field devices, a suitable control configuration and inputs/outputs must be

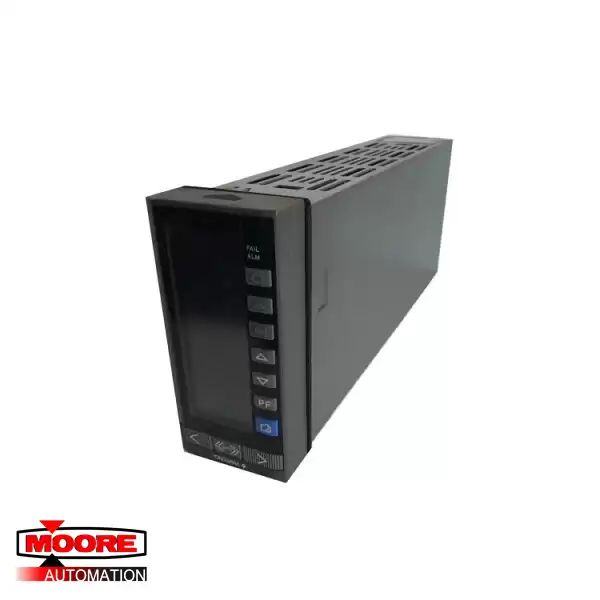

determined and assigned to assure proper signal routing. The YS170 is a programmable
controller, whereby the analog and discrete inputs/outputs can be assigned regarding function.
The program and inputs/output assignments must be completed prior to field connections.
