YTTW YTTWY Mineral Insulated Fire Resistant Cables
MAIN KEYWORDS
YTTW mineral insulated
cable, YTTWY mineral insulated cable, JG/T 313-2014 MIC cable.
PRODUCTS CHARACTERISTICS
(1) Excellent
fire performance. The fire resistance grade not only meets the national
standard GB 12666.6 class A 950℃/90 minutes, but
also meets the BS 6387 class A 650℃/3 hours; Class
B 750℃/3
hours; Class C 950℃/3 hours; At the same time, in the combustion can
also withstand water spray and mechanical impact. HANTE supply multi choice of mineral insulated fire resistant cable.
(2) Achieve
multi-cores large length. No matter single core or multi-core cable, its length
can meet the needs of power supply length, each continuous length can reach
more than 1000 meters; Large section, single core cable section up to 630 mm2,
multi-core cable section up to 240 mm2.

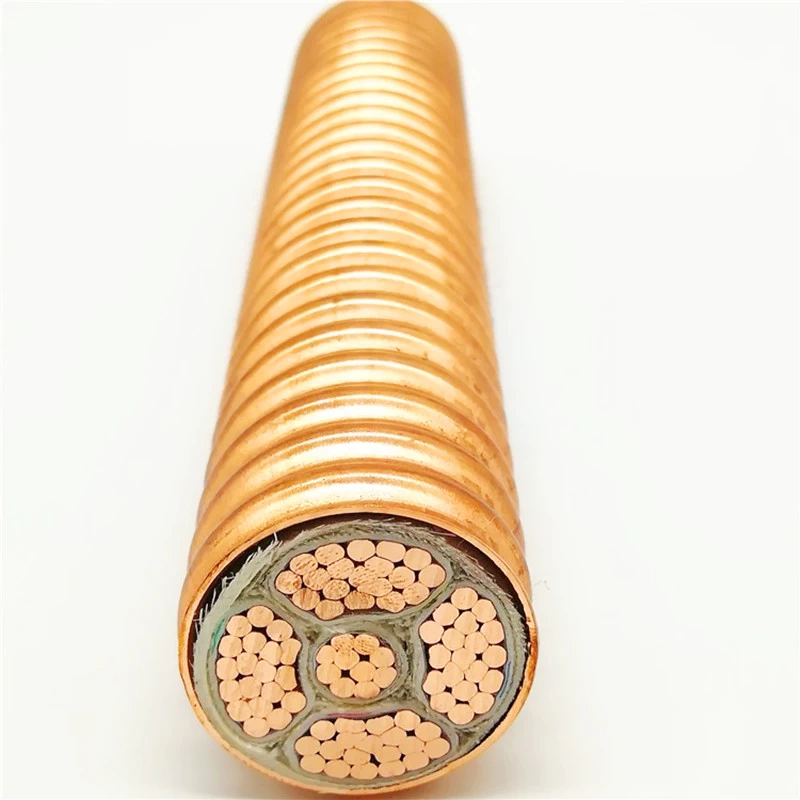

(3) Soft
properties. Conductor is made of copper wire stranded, copper sheath is made of
corrugated copper tube structure, good flexibility, and the bending radius is
6-10 times of the cable diameter.
(4) Low
Smoking Zero Halogen. Insulation using inorganic materials, burning will not
produce any toxic gas, more will not happen secondary pollution, and can be
called as environmental protection products.
(5) High current
capacity. The cable not only carries a large amount of flow, but also has a
large current capacity. The temperature of cable sheath can be raised to 105℃, and
the long-term working temperature of fireproof cable can reach 250℃ when
it is overloaded.
(6) No
electromagnetic interference. Copper sheath shielding, will not interfere with
the signal, control wire and cable transmission information.
(7) Good
security. It can supply power normally in flames, start fire extinguishing
equipment, reduce fire losses, and is especially reliable for personal safety.
Its copper sheath is also an excellent conductor, is the best ground wire, and
continuous to the whole length of the cable, greatly improving the sensitivity
and reliability of grounding protection.
(8) Long
service life. Inorganic insulating material is resistant to high temperature
and aging, and its life is many times higher than that of organic insulated
cable.
(9) Easy
installation. Cable connectors few or no joints, compared with
oxidation-impregnated fire-proof cable, construction is convenient, and installation
cost is low.
(10) Good
economy. Due to the advanced production technology and simple installation, the
true comprehensive cost is more than 20% lower than the cost of oxidized insert
mineral insulated cable under the same conditions.
(11) YTTW & YTTWY
mineral insulated cables, has the follow weakness: (a) YTTW or YTTWY cable has
a mica belt and an artificial adhesive in the mica belt. The adhesive will be
carbonized at high temperature, and the mica pieces may fall off and easily
break under impact. (b) The copper tube sheath of YTTW cable may deform and break during installation.
PRODUCTS APPLICATION
(1) Fire
protection systems for all types of buildings.
(2) High-rise
civil buildings, office buildings, hotels, shopping malls, exhibition centers,
museums, libraries, hospitals, stadiums, airports and so on.
(3) High
temperature field, such as steel, smelting, glass and other workshops.
(4) Flammable
and explosive fields, such as petroleum, chemical, pharmaceutical, nuclear and
military enterprises.
(5) National defense
engineering, such as ship, aviation, aerospace, satellite launch, control
center, etc.

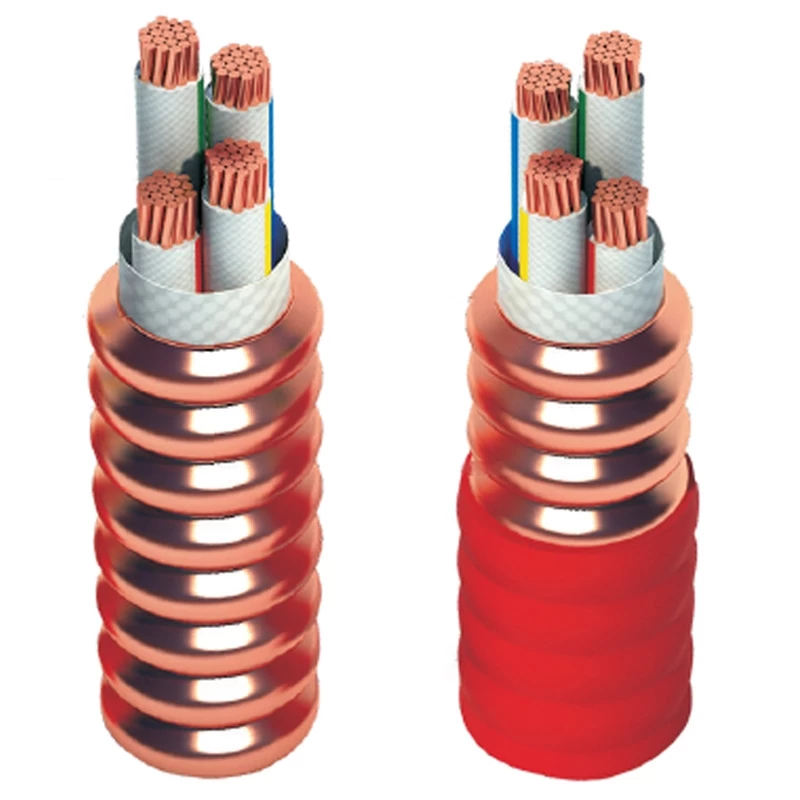

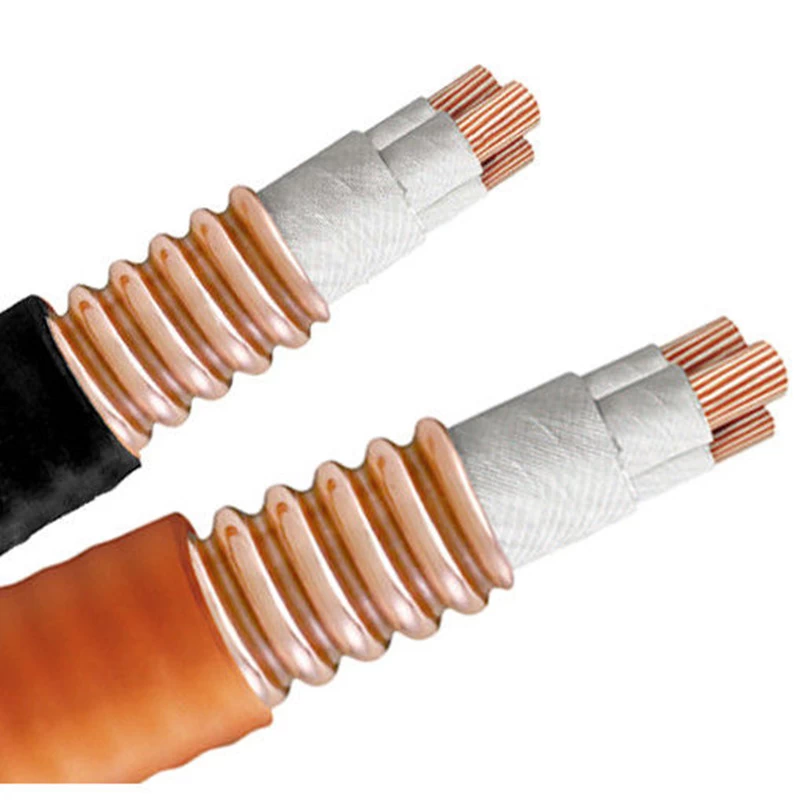

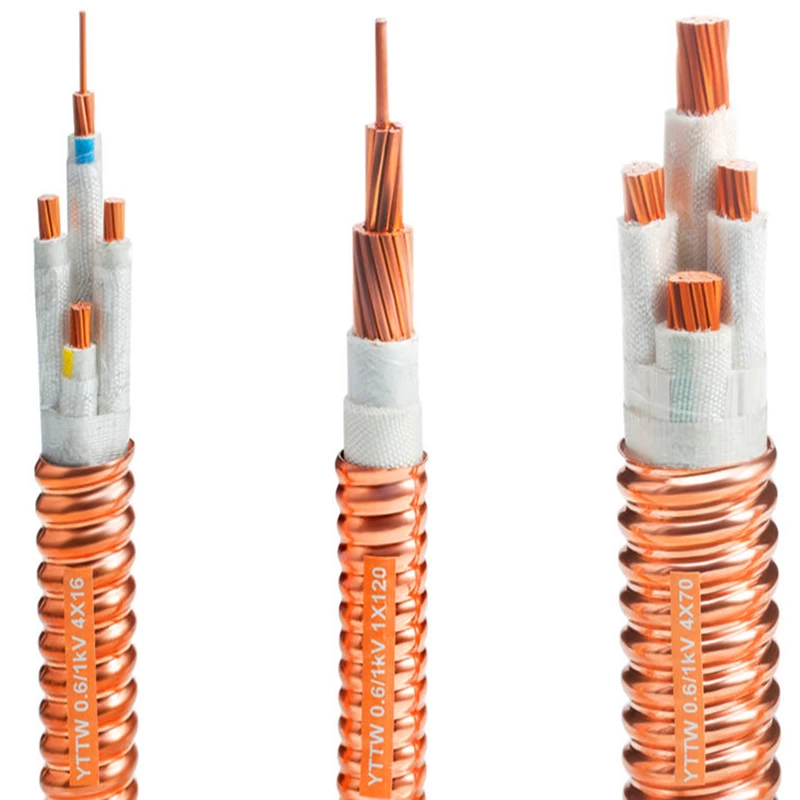

PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed copper wire, solid class 1, or strand class 2.
---Insulation Material
Inorganic
mineral insulated compound
---Filler Material
Fiberglass
tape
---Sheath Material
Rolled copper
tube
---Out Sheath Material (is
optioned)
LSZH (low
smoking zero halogen)
---Core Number
1C, 2C, 3C,
4C, 5C, 3C+E, 3C+2E, 4C+E
---Voltage Rate
0.6/1kV,
600/1000V
---Working Temperature
Normal: -15℃～+250℃,
special period: 1083℃
---Minimum Bending Radius
20 x Out
Diameter
---Production Standard
JG/T 313-2014, GB/T 34926-2017,
IEC 60702, BS 6387, BS 6207, BS 5266, VDE 0284, AS 3188
---Production Delivery
Within 15-20 working days since we received the 30% deposit by T/T before the shipment.
REMARK
---The information contained within this
datasheet is for guidance only and is subject to change without notice or
liability.
---All the information is provided in good
faith and is believed to be correct at the time of publication; when selecting
cable accessories, please note that actual cable dimensions may vary due to
manufacturing tolerances.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
