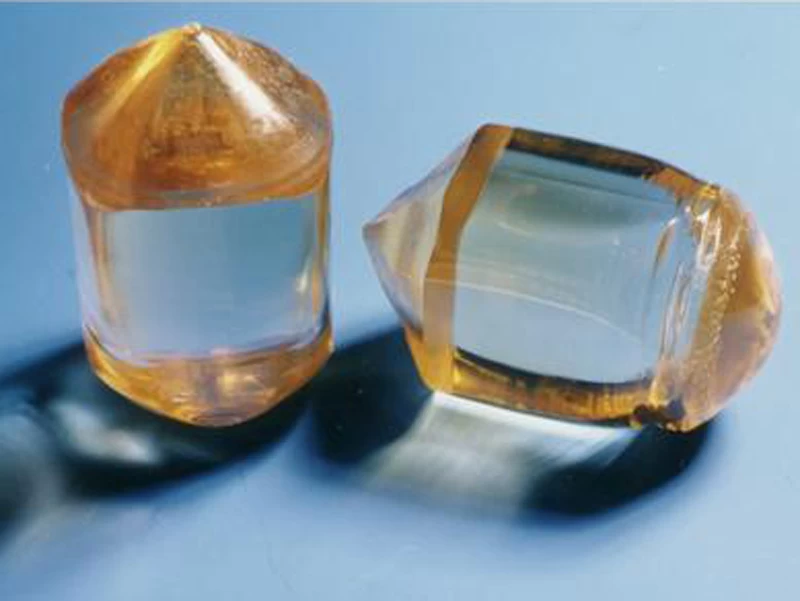

YVO4 Birefringent Crystal
Yttrium Vanadate (YVO4) crystals are positive uniaxial crystals grown using the Czochralski method. They have good mechanical and physical properties and are ideal for optical polarizing components because of their wide transparency range and large birefringence. They are an excellent synthetic substitute for Calcite (CaCO3) and rutile (TiO2) in many applications including fiber optic isolators and circulators, beam displacer, Glan polarizer and other polarizing optics. Specification
YVO4 Crystal SPECIFICATION:
|
Diameter:
|
Max 25mm
|
|
Length:
|
Max 35mm
|
|
Surface Quality:
|
20/10 Scratch/Dig
|
|
Beam Deviation:
|
< 3 arc min
|
|
Optical Axis Orientation:
|
+/-0.2deg
|
|
Flatness:
|
< λ/4 @632.8nm
|
|
Wavefront Distortion:
|
< λ/2 @632.8nm
|
|
Coating:
|
Upon Requirement
|
