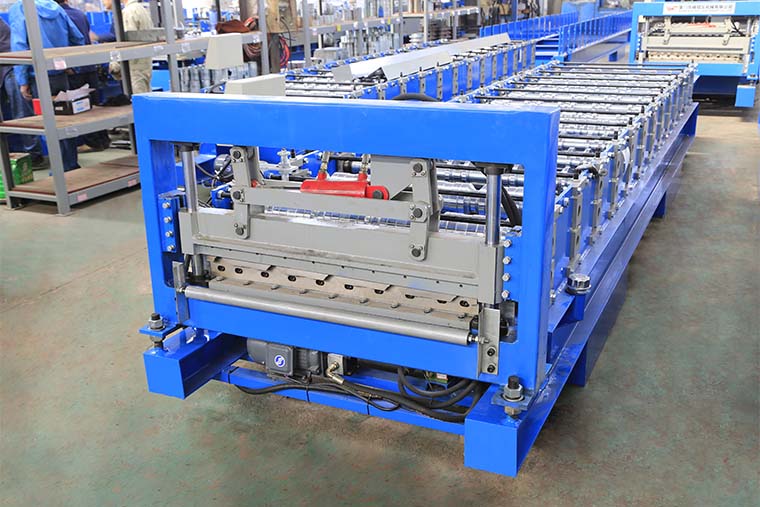

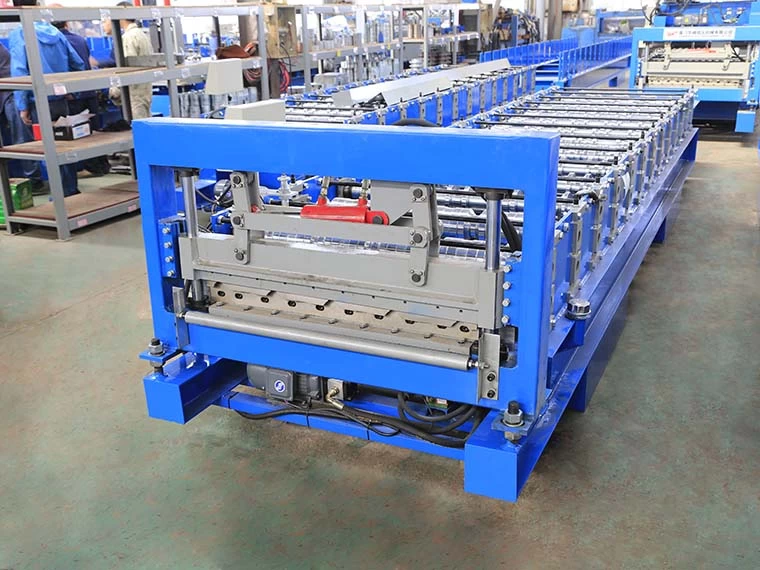

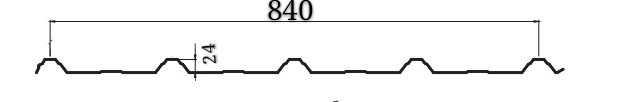

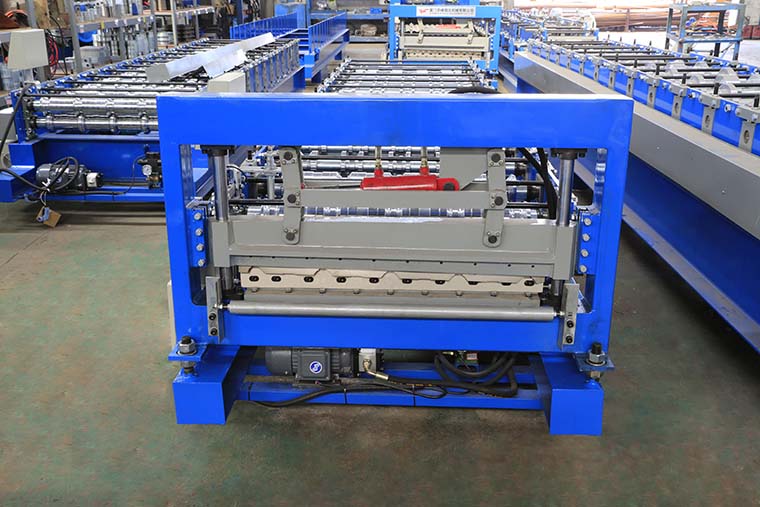

YX24-840 Roof Panel Roll Forming
Machine
1.Main features of YX24-840 roof panel machine roll forming machine
The advantages of roof
panel machine are as follows:
1.Low cost, light weight but high
strength, short building period, and re-cycle use
2.Save material , no waste.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
2.Detailed Images of YX24-840 roof panel forming
machine
Machine Parts

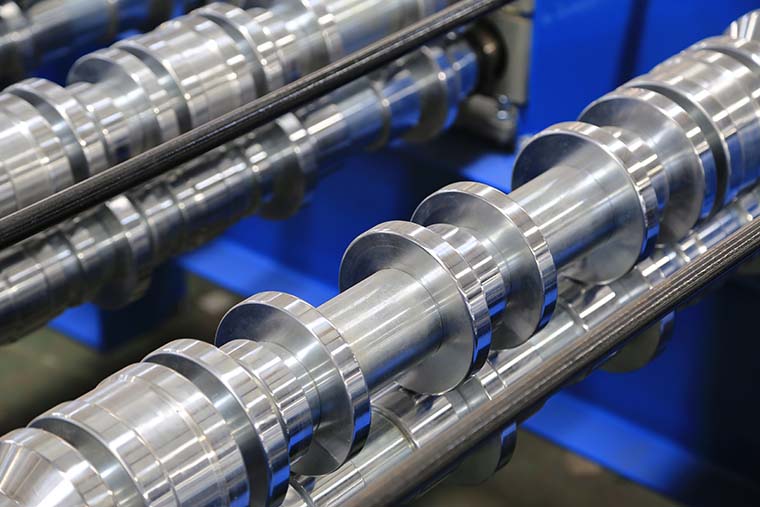

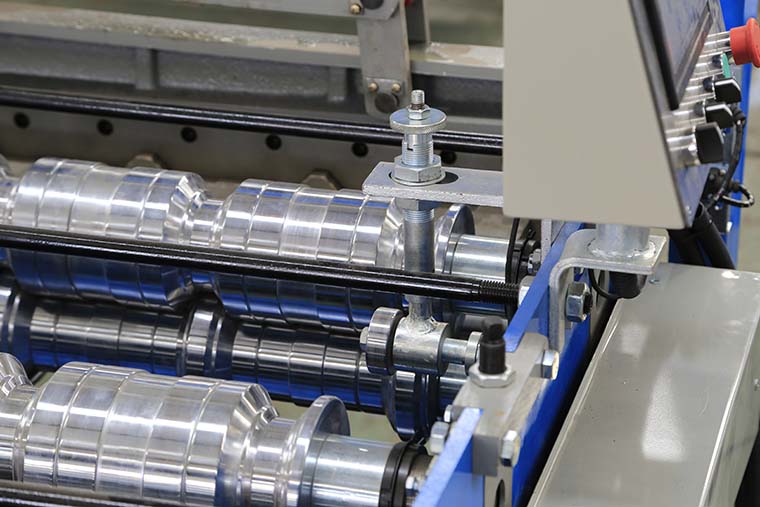

1) YX24-840 roof panel
machine rollers
Brand: BMS Original: China
Rollers
manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with
black treatment or Hard-Chrome Coating for options.
Body framemade
from 300# H type steel by welding

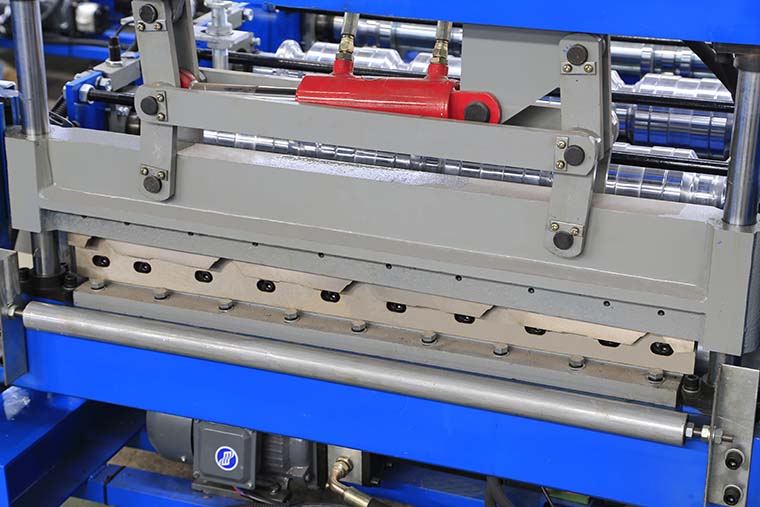

2) YX24-840 roof panel machine post
cutter
Made by
high quality mold steel Cr12 with heat treatment
Cutter
frame made from high quality 20mm steel plate by welding
hydraulic motor:2.2KW,
Hydraulic pressure range: 0-16Mpa

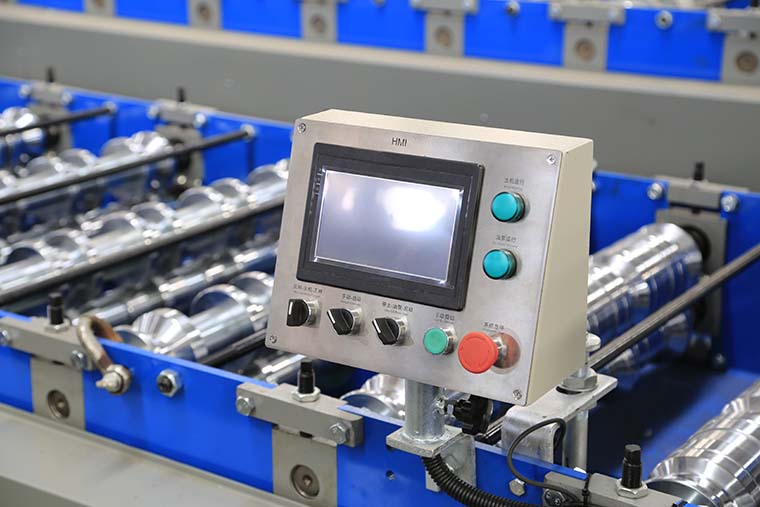

3) YX24-840 roof panel machine touching screen

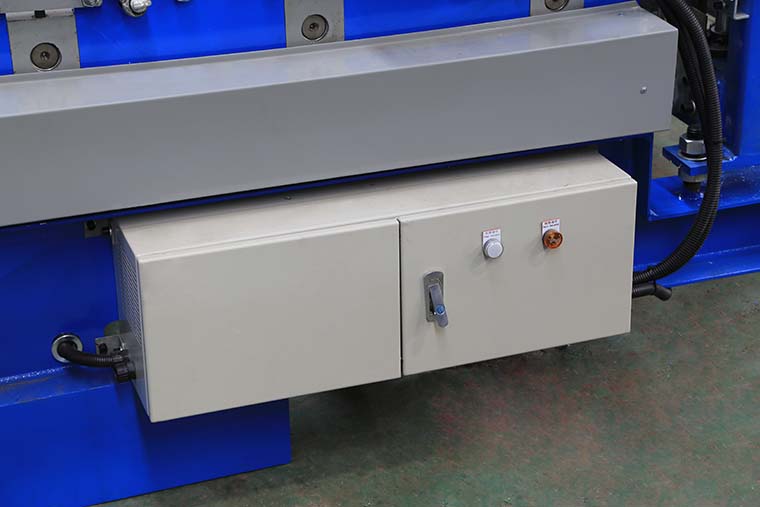

4) YX24-840 roof panel machine control cabinet
5) YX24-840 roof panel machine encode
6) YX24-840 roof panel machine decoiler
ManualDecoiler:
one set
Un-powered,manually
control steel coil inner bore shrinkage and stop
Max.
feeding width: 1200mm, coil ID range 508mm±30mm
Capacity:
5-9 Ton
With 6
tons hydraulic decoiler for option
6) YX24-840 roof panel machine exit rack
Un-powered,one
unit
Other detailes of YX24-840 roof panel
roll forming machine
Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 14 steps to form.
Main
motor=3.7KW , Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter
brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of roof panel roll forming
machine
1. The warranty of purlin roof panel
roll forming machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
