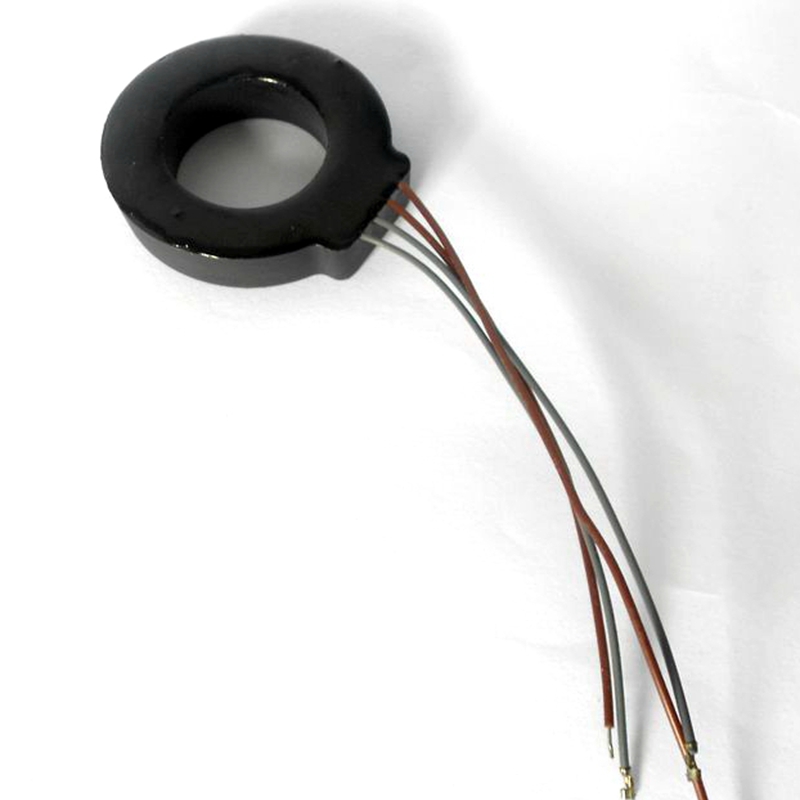

Zero phase current transformer for leakage current detection ZCT409
Zero phase current transformer which detects the difference between the currents flowing in a number of conductors. The current flowing to a load must equal the current flowing back from the load. If this is not the case, a potentially dangerous residual current will be flowing somewhere in the installation.
Wire lead type zero phase current transformers are easy integrated into standard PCB sub-assemblies that are compliant with IEC61008, IEC61009 and IEC62423 requirements.
|
Rated Current
|
225A
|
|
DC Resistance at 25℃
|
11±3Ω
|
|
Dielectric Withstanding Voltage(Hi-pot)
|
2500Vrms
|
|
Output Voltage Vo
|
25-30mV
|
Electrical Characteristic
|
Item
|
Rated Current(A)
|
Output Voltage
Vo(mv)
|
Test Conditions
|
Over Leakage
Characterstics
|
Temperature
Characteristics
-35~80℃
|

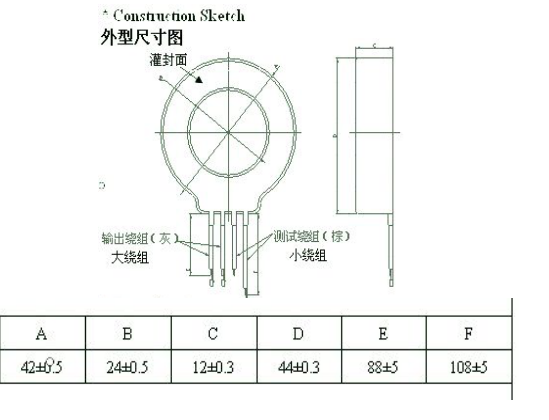

Dimensions
(mm)
|
|
|
|
|
|
|
|
ID
|
OD
|
HT
|
|
ZCT201
|
30
|
4-5.1
|
lin=10mA RL=510
|
-10%~0%
|
10%Max
|
5.9
|
16
|
6.5
|
|
ZCT202
|
30
|
5.1-6
|
lin=8mA RL=750
|
-10%~0%
|
10%Max
|
5.8
|
15.2
|
6.1
|
|
ZCT203
|
50
|
17-21
|
lin=22.5mA RL=1k
|
-10%~0%
|
10%Max
|
9.2
|
21
|
7.3
|
|
ZCT204
|
30
|
12-15
|
lin=22.5mA RL=1k
|
-10%~0%
|
10%Max
|
9.8
|
20.6
|
6.5
|
|
ZTC205
|
30
|
12.5-15.5
|
lin=8mA RL=4.7k
|
-10%~0%
|
10%Max
|
9.3
|
21.3
|
7.2
|
|
ZCT206
|
50
|
17-21
|
lin=22.5mA RL=1k
|
-10%~0%
|
10%Max
|
12.3
|
26
|
10
|
|
ZCT207
|
30
|
7.5-8.5
|
lin=25mA RL=1k
|
-10%~0%
|
10%Max
|
15.4
|
29.8
|
10
|
|
ZCT208
|
60
|
10.2-12.5
|
lin=20mA RL=680
|
-10%~0%
|
10%Max
|
7.2
|
19.4
|
7.7
|
|
ZCT209
|
50
|
8-11.2
|
lin=11.25mA RL=1k
|
-10%~0%
|
10%Max
|
7
|
17.2
|
7
|
|
ZCT210
|
50
|
8-11.2
|
lin=11.25mA RL=1k
|
-10%~0%
|
10%Max
|
6.8
|
16.9
|
7.9
|
|
ZCT211
|
50
|
8-11.2
|
lin=11.25mA RL=1k
|
-10%~0%
|
10%Max
|
10.6
|
25.4
|
8
|
|
ZCT212
|
60
|
10.2-12.5
|
lin=20mA RL=680
|
-10%~0%
|
10%Max
|
11
|
23.5
|
8
|
|
ZCT213
|
60
|
≥300
|
lin=25mA RL=1k
|
-10%~0%
|
10%Max
|
9.4
|
23.8
|
12.7
|
|
ZCT218
|
60
|
10.2--12.5
|
lin=25mA RL=680
|
-10%~0%
|
10%Max
|
7.5
|
18.9
|
7.6
|
|
ZCT220
|
60
|
≥300
|
lin=25mA RL=47k
|
-10%~0%
|
10%Max
|
10.1
|
24
|
11.5
|
|
ZCT225
|
60
|
≥300
|
lin=25mA RL=47k
|
-10%~0%
|
10%Max
|
10.9
|
25.5
|
9
|
|
ZCT401
|
100
|
17-21
|
lin=22.5mA RL=1k
|
-10%~0%
|
10%Max
|
15
|
29.2
|
10
|
|
ZCT402
|
100
|
6.3-7.5
|
lin=20mA RL=370
|
-10%~0%
|
10%Max
|
17.5
|
35.9
|
8.8
|
|
ZCT403
|
250
|
17-21
|
lin=22.5mA,RL=1k
|
-10%~0%
|
10%Max
|
29
|
51
|
12
|
|
ZCT404
|
250
|
17-21
|
lin=22.5mA,RL=1k
|
-10%~0%
|
10%Max
|
32
|
55.6
|
12
|
|
ZCT405
|
250
|
17-21
|
lin=22.5mA,RL=1k
|
-10%~0%
|
10%Max
|
42
|
80*69
|
20
|
|
ZCT406
|
630
|
17-21
|
lin=25mA,RL=1k
|
-10%~0%
|
10%Max
|
51.3
|
84
|
26
|
|
ZCT407
|
800
|
17-21
|
lin=22.5mA,RL=1k
|
-10%~0%
|
10%Max
|
51
|
96*89
|
23
|
|
ZCT408
|
100
|
125-150
|
lin=500mA,RL=150
|
-10%~0%
|
10%Max
|
19
|
36
|
11.5
|
|
ZCT409
|
225
|
125-150
|
lin=500mA,RL=150
|
-10%~0%
|
10%Max
|
24
|
42
|
12
|
|
ZCT410
|
400
|
125-150
|
lin=500mA,RL=150
|
-10%~0%
|
10%Max
|
43
|
90*74
|
16
|
|
ZCT411
|
800
|
120-151
|
lin=500mA,RL=150
|
-10%~0%
|
10%Max
|
53
|
96*89
|
23
|
Output voltage and Turns / resistor graph
Testing
Packing and Shipping
