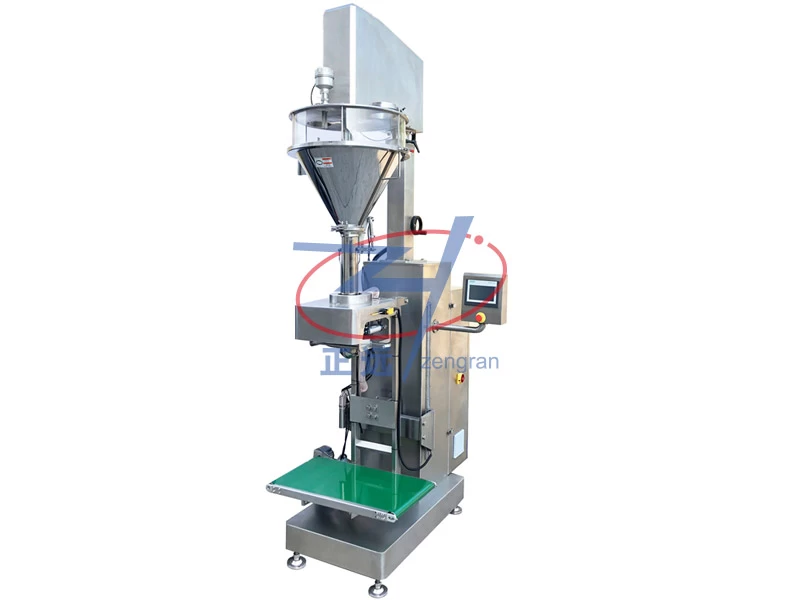

ZG-2C Lift type powder filling machine
Introduction:
| The lift packaging machine designed according to the national standard GMP, which suit for ultra-fine powder and high-precision packaging. Equip with the weight sensor, give signal to the machine do the filling and lift work. Wildly used in packing of additive, Toner, fire extinguisher powder, superfine powder etc. The main parts of machine is made by 304 stainless steel. With the famous brand of the machine body, motor, cylinder, electrical accessories, pneumatic components, pneumatic sealing machine, sewing machine. And the customer could choose the brand himself. |
Technical features:
No. | Features |
1 | Equip with weight senor, under the container pallet. According the preset weight to do the fast filling or the slow filling. Guarantee the high precision of packaging. |
2 | Serve motor drive the tray's lifting, the lifting speed can be set freely. |
3 | The screw control by servo motor/drive, stable performance with high precision |
4 | PLC touch screen man-machine interface. Easy to operate. |
5 | The material of the machine is stainless steel. Combined type hopper, easy to clean. |
6 | Filling head is equipped with adjustable height device, suit for variety of specifications packaging. |
7 | Fixed type screw installation, the material properties will not be affected when filling |
8 | Optional bag clamping device or support can device , meet the requirement of canned or bagged just choose different device. |
Application:
Powder: milk powder, coffee powder, food additives,condiments,tapioca powder,coconut powder, pesticide powder, fine powder etc.
Working Progress:
| Manual place the bottle or bag→The bottle or bag rise→ Automatic bag feeding &material auto filling →quick filling, the bottle or bag fall at the same time→filling slowly→reach the setting weight→stop→take out the bottle or bag manual |
Technical Form:
No. | Item | Parameter |
1 | Metering way | Weighing type ,auger screw filling |
2 | Packing weight | 5-25kg |
3 | Packing accuracy | ≤±0.1%-±0.3% |
4 | Packing speed | 2-3bags/min（depending on actual material) |
5 | Voltage | Voltage:3 phase 380V 50Hz |
6 | Power supplier | 4.15KW |
6 | Weight | 380kg |
7 | Hopper volume | 90L |
8 | Material | Parts contact with material are made of SUS304 stainless steel |
