ZH100-A cartoning machine

ZH-100A cartoning machine can load various kinds of materials like granules, powder, etc. and some packaging bags, etc. into the special carton boxes reliably and seal and send out the carton boxes. It is suitable for packaging of various kinds of foodstuff, chemical products, animal foods and agricultural products, has a wide range of use, meanwhile, the product to be packaged can be changed periodically according to different use requirements, yet the die set change interval is short and its adjustment is simple and convenient. It is not only suitable for mass production of a single variety, but also can satisfy user’s small-batch production of different varieties.

Facebook Twitter Pinterest LinkedIn 分享

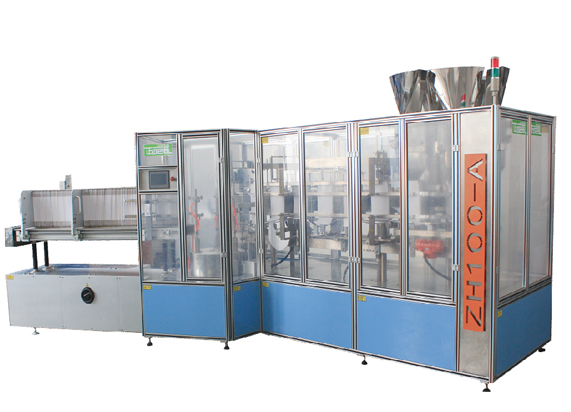

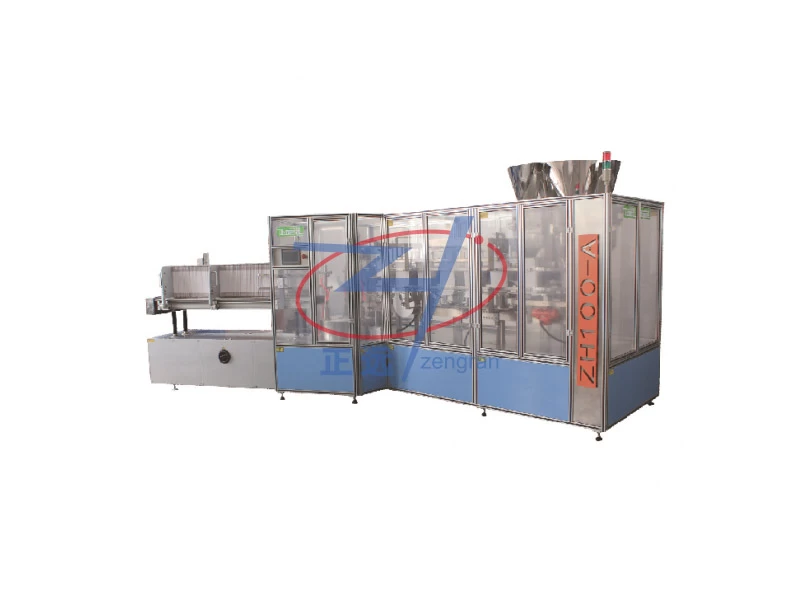

Cartoning Machine(ZH100-A)

Cartooning Machine(ZH100-A)

Introduction

ZH-100 cartoning machine is a new product developed by our company, it has the advantages of small volume, light weight, wide scope of application, high production efficiency, etc., meanwhile, this machine can be used with vertical bag-making packaging machine production line to achieve the best effect, and can satisfy GMP requirements of the national quality management code on food and medicine.

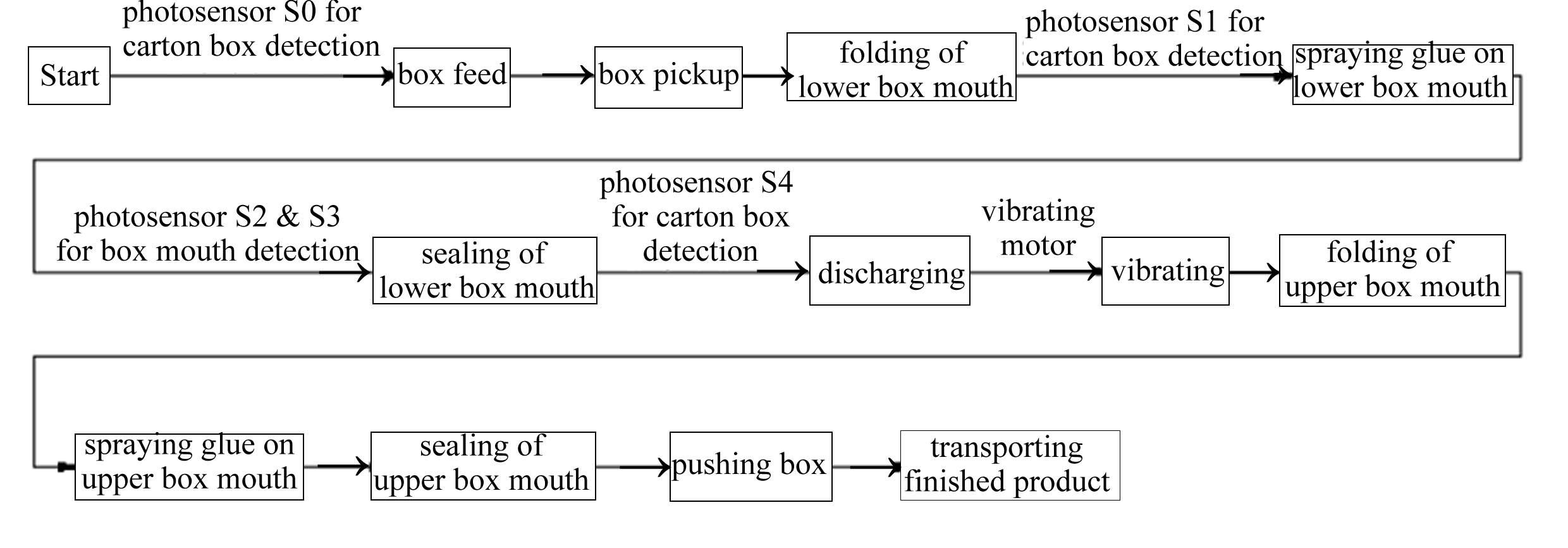

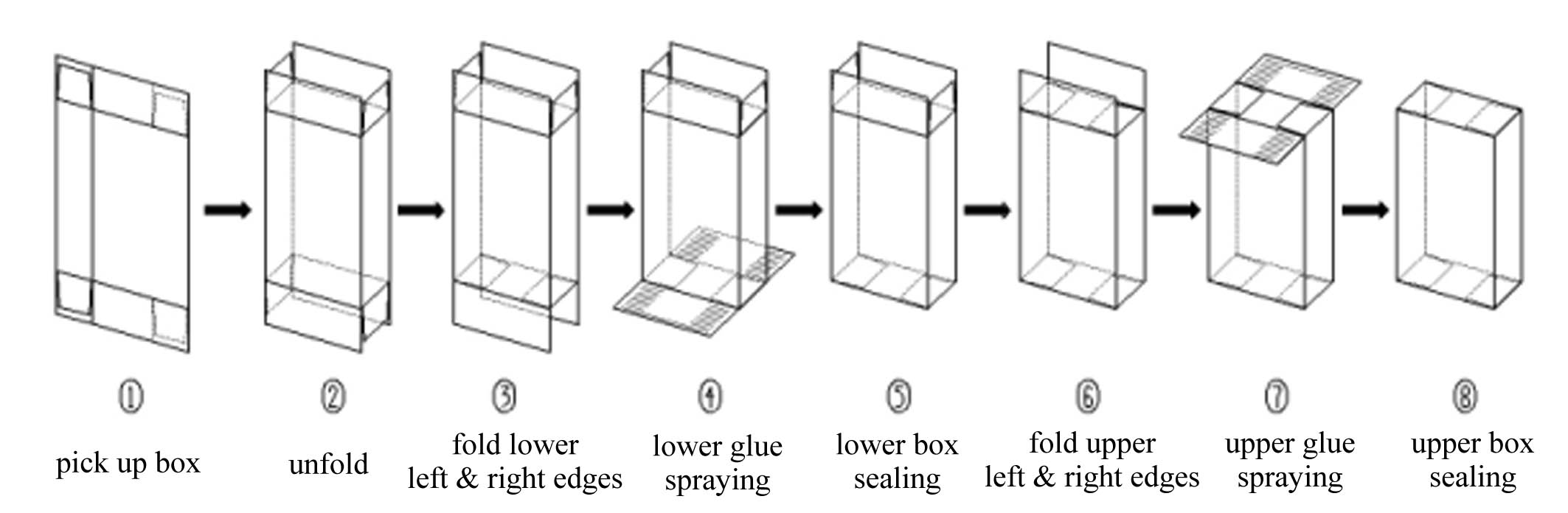

Working process flow chart

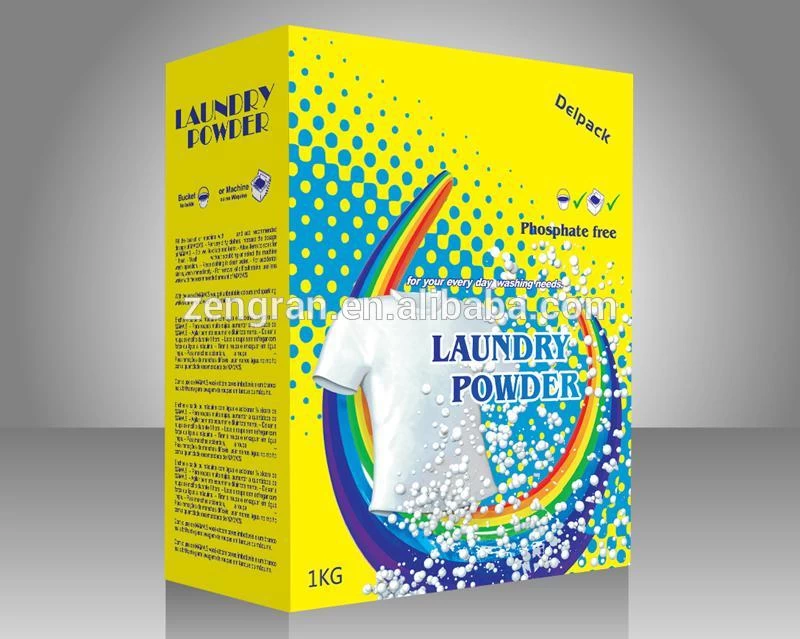

Application

ZH-100 cartoning machine can load various kinds of materials like granules, powder, etc. and some packaging bags, etc. into the special carton boxes reliably and seal and send out the carton boxes. It is suitable for packaging of various kinds of foodstuff, chemical products, animal foods and agricultural products, has a wide range of use, meanwhile, the product to be packaged can be changed periodically according to different use requirements, yet the die set change interval is short and its adjustment is simple and convenient. It is not only suitable for mass production of a single variety, but also can satisfy user’s small-batch production of different varieties.


Main technical parameters

Max. design production capacity:

100 boxes/min

External dimensions of the machine:

5500×3000×2100mm(L×W×H)

Unit weight:

≈3500 kg

Range of carton box size:

Min. 80×40×160mm(L×W×H)


Max. 200×80×300mm (L×W×H)

Noise:

<85dB(A)

Rated power

≈13 kW
