ZIEHL-ABEGG Cooling Fan 230V 50/60Hz RG28P-4EK.4I.1R

Brand new and original sealed//Same Day Shipment


  • Dimensions12.7 cm x 5.1 cm x 17.8 cm
  • Weight0.3KG
  • Country of OriginUSA
  • Brand/ManufaturerZIEHL-ABEGG
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer

We still have a lot of PLC/DCS/TSIESD Module in stock, contact us quickly for prices.

Sales Manager

E-mail

WhatsApp/Skype

Wechat

Lisa

sales7@amikon.cn

+86 18965423501

AMKPLC


About product:

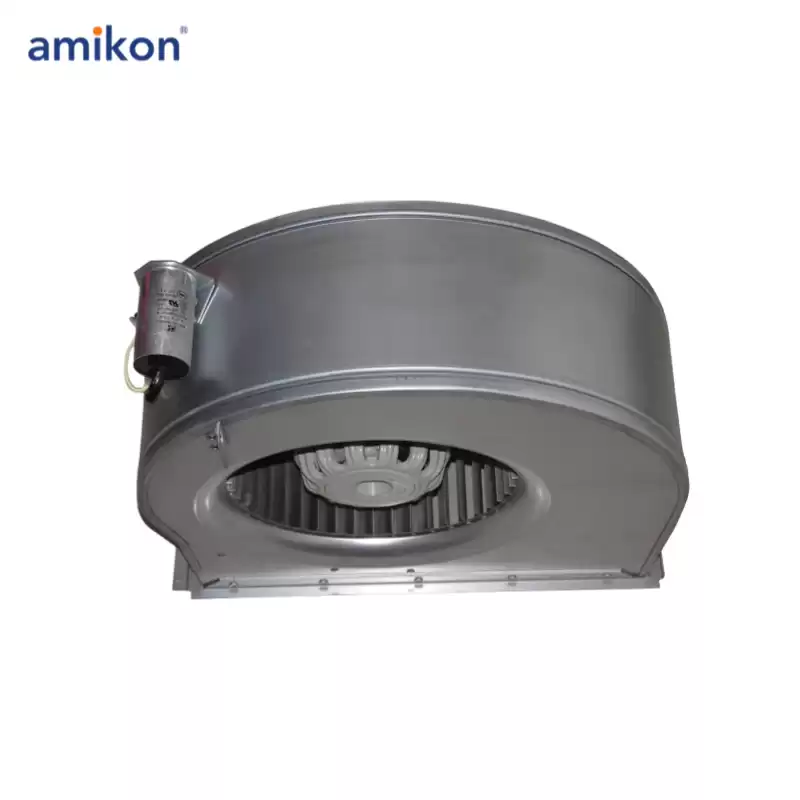

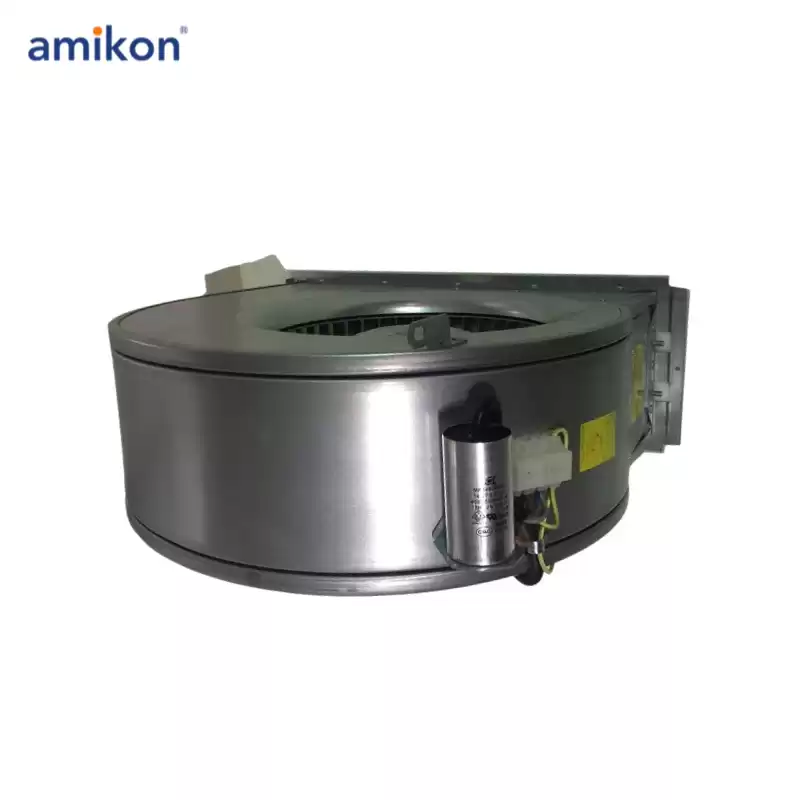

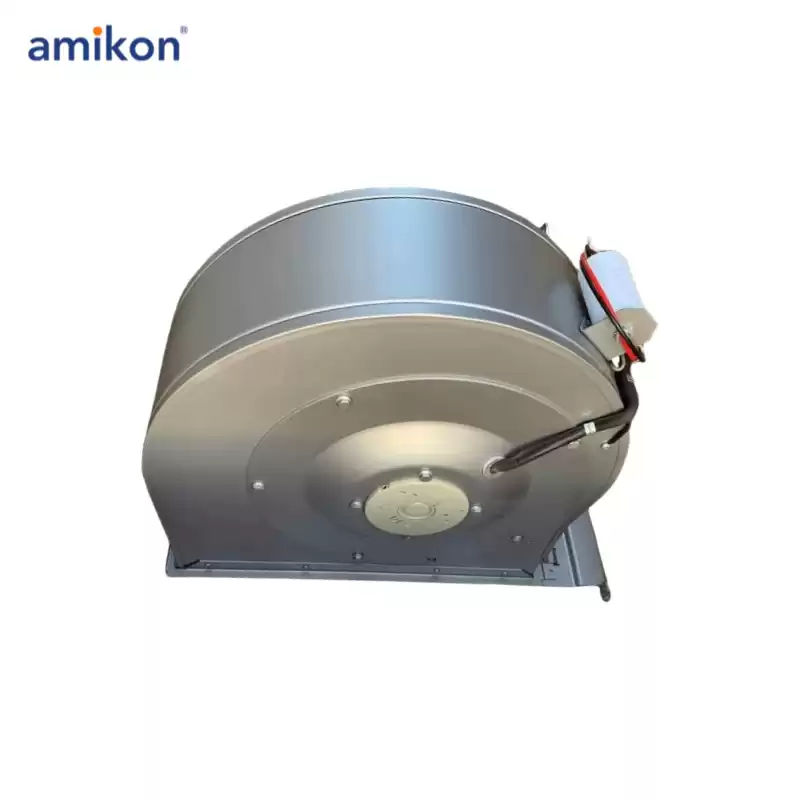

ZIEHL-ABEGG Cooling Fan 230V 50/60Hz RG28P-4EK.4I.1R

The ZIEHL-ABEGG RG28P-4EK.4I.1R is a high-performance cooling fan designed for industrial applications, known for its reliability and efficient cooling capabilities. This fan operates on 230V with a frequency of 50/60 Hz, ensuring flexible and consistent performance in various industrial settings.



Technical Data

Value

Bearing Type

Ball bearing DIN625

Size

6002-2Z C3

Applicable Standards

DIN ISO IEC

Application

Moisture and hot climate protection

Supply Voltage

1~ 230 V ±10% 50 Hz / 1~ 230 V ±10% 60 Hz

Motor Power

0.69 kW (50 Hz)

Minimal Pressure Drop

PsF min. 250 Pa (50 Hz) / PsF min. 450 Pa (60 Hz)

Motor Protection

IP10

Motor Insulation Class

155 (previously Insulation Class F)

Impregnation

Standard Impregnation

Number of Poles

4

Speed

1360 rpm (50 Hz) / 1440 rpm (60 Hz)

Motor Current

3.0 A (50 Hz) / 4.5 A (60 Hz)

Motor-Recognized Component

UL file no.: E111399 ZA-155, MK106-4EK.14.U
