CM550-56 Zigbee modem m2m modbus rtu gateway
Acquisition and Transmission Integrated Design, Higher Performance
CM550-55G integrates traditional RTU and 2.5G/3G data transmission unit, and provides many functions including acquisition, counting, control, storage, alarm and transmission Also, RTU realizes the transparent data transmission function of 2.5G/3G IP MODEM. So Caimore RTU has higher performance.
Standard and Convenience
Caimore RTU MODEM supports standard Modbus RTU and Modbus TCP/IP, and can directly connect to various configuration software WEB configuration. Customers do not need to develop application software specially, so the project progress is accelerated greatly
Rich interface

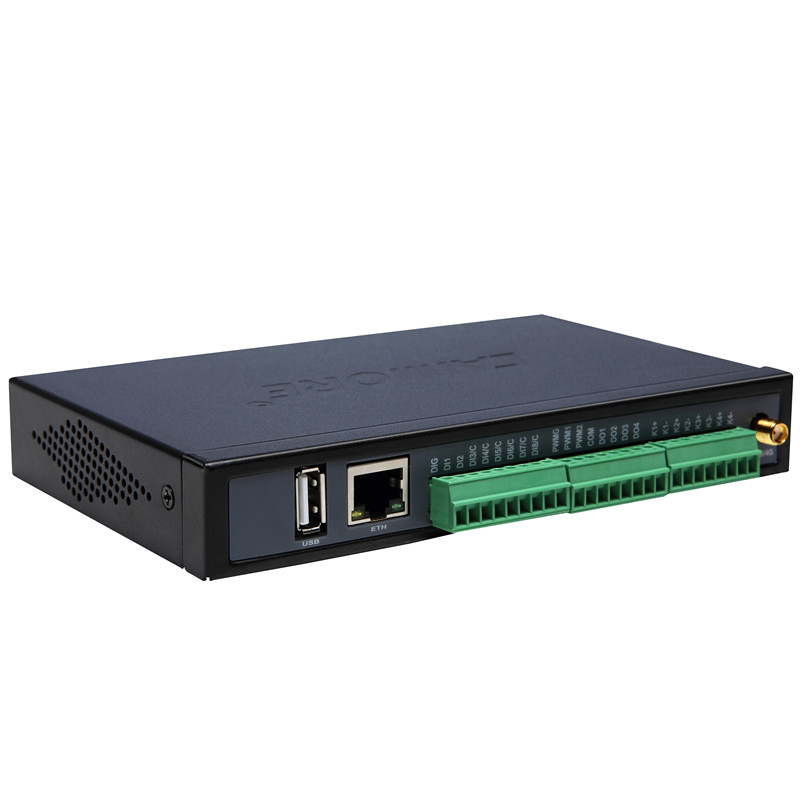

Caimore RTU provides rich interfaces including 6 CH counter input,8 CH switch input,8 CH analog input,4 CH digital output,2 CH PMW output,4 CH relay output. It has RS232/485 communication port,and RS422/CAN/ZigBee ports are optional.
Synchronous Transmission of Multi Data Centers
Support double data centers, one main and another backup. Support double data center backup and multiple data center ( 8 data center) receiving data, the biggest number of sending center is up to 256.
