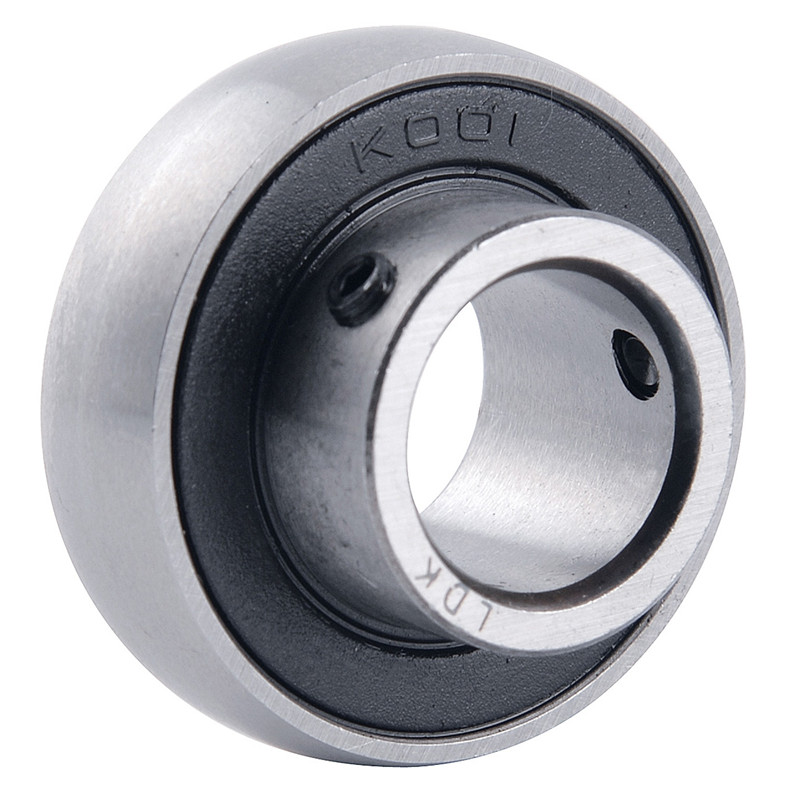

Zinc Alloy Miniature Bearing K000 U000



K/U  Setscrew/Eccentric locking



Facebook Twitter Pinterest LinkedIn 分享

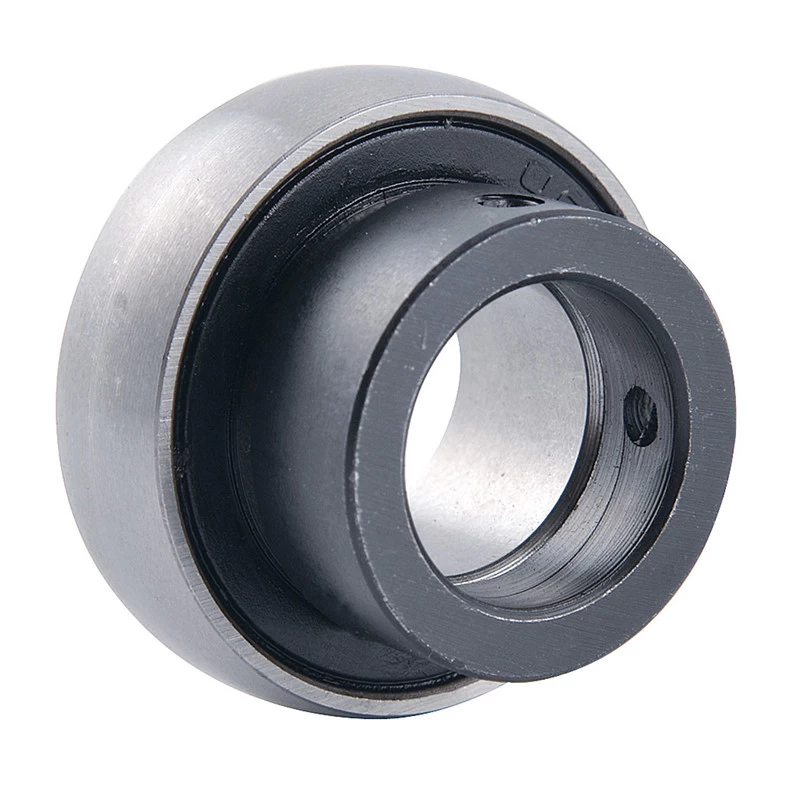

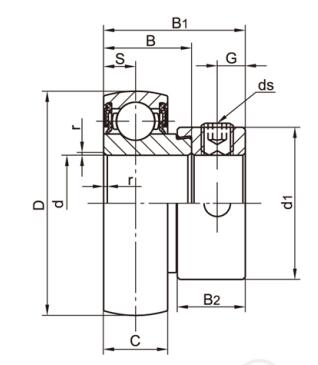

Zinc Alloy Bearing U004

Bearing
Shaft
d (mm)
Dimensions(mm) Basic Load Rating kgf
Weight
(kg)
D B c S B1 B2 d1 r G ds Dynamic Cr Static Cor
U 000 10 26 11 8 4 17.5 8.5 17 0.7 3.5 M4X0.7 4.6 1.96 0.03
U 001 12 28 11 8 4 17.5 8.5 19 0.7 3.5 M4X0.7 5.09 2.4 0.04
U 002 15 32 12 9 4.5 18.5 8.5 22 0.7 3.5 M4X0.7 5.58 2.84 0.05
U 003 17 35 13.5 10 5 20.5 9.5 25 0.8 3.5 M4X0.7 5.97 3.28 0.07
U 004 20 42 16.5 12 6 24.5 11 30 1.3 3.8 M5X0.8 9.35 5.04 0.11
U 005 25 47 17.5 12 6 25.5 12 36 1.3 4 M5X0.8 10.09 5.83 0.15
U 006 30 55 18.5 13 6.5 26.5 12 42 1.5 4 M5X0.8 13.23 8.28 0.21

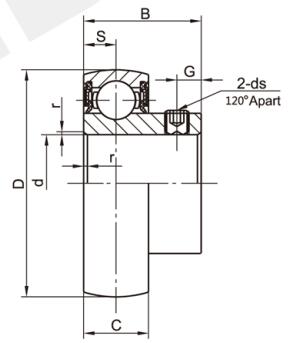

Zinc Alloy Bearing K005

Bearing
Shaft
d( mm)
Dimensions(mm) Basic Load Rating kgf Weight (kg)
D B C S r G ds Dynamic Cr Static Cor
K 000 10 26 14 8 4 0.7 3 M3X0.35 4.6 1.96 0.03
K 001 12 28 14.5 8 4 0.7 3 M3X0.35 5.09 2.4 0.04
K 002 15 32 16.5 9 4.5 0.7 3.5 M4X0.5 5.58 2.84 0.05
K 003 17 35 17.5 10 5 0.8 3.5 M4X0.5 5.97 3.28 0.07
K 004 20 42 21 12 6 1.3 4 M5X0.5 9.35 5.04 0.11
K 005 25 47 22.5 12 6 1.3 4.5 M5X0.5 10.09 5.83 0.15
K 006 30 55 24.5 13 6.5 1.5 5 M5X0.5 13.23 8.28 0.21
