Zinc Alloy Miniature Bearing Unit KP00 KP00+C/D KFL00 KFL00+C/D




KP/KFL Setscrew/Eccentric locking,Pillow block/2-Bolt flange,With close/open covers



Facebook Twitter Pinterest LinkedIn 分享

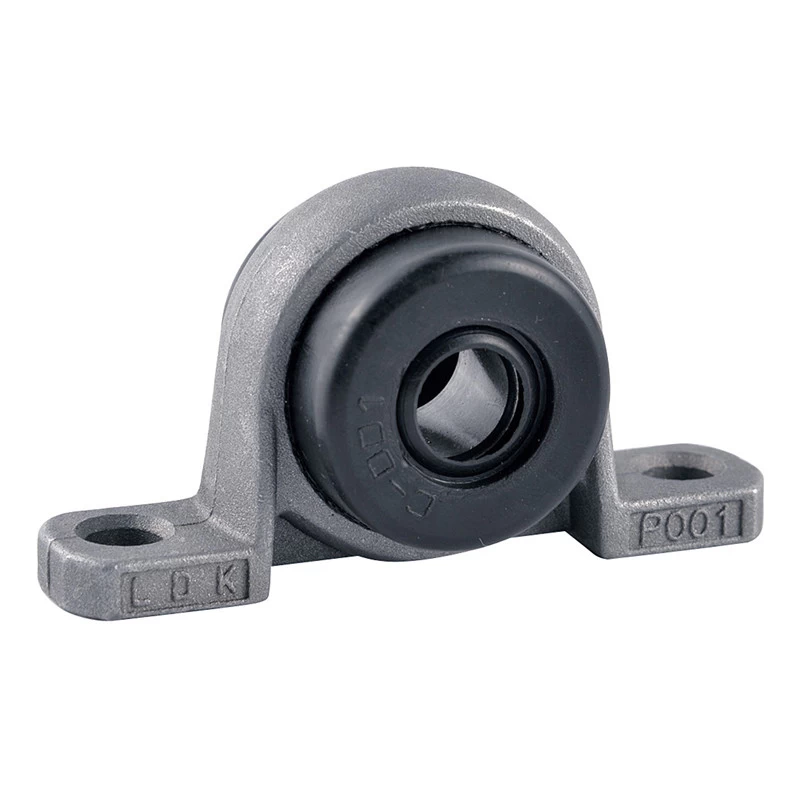

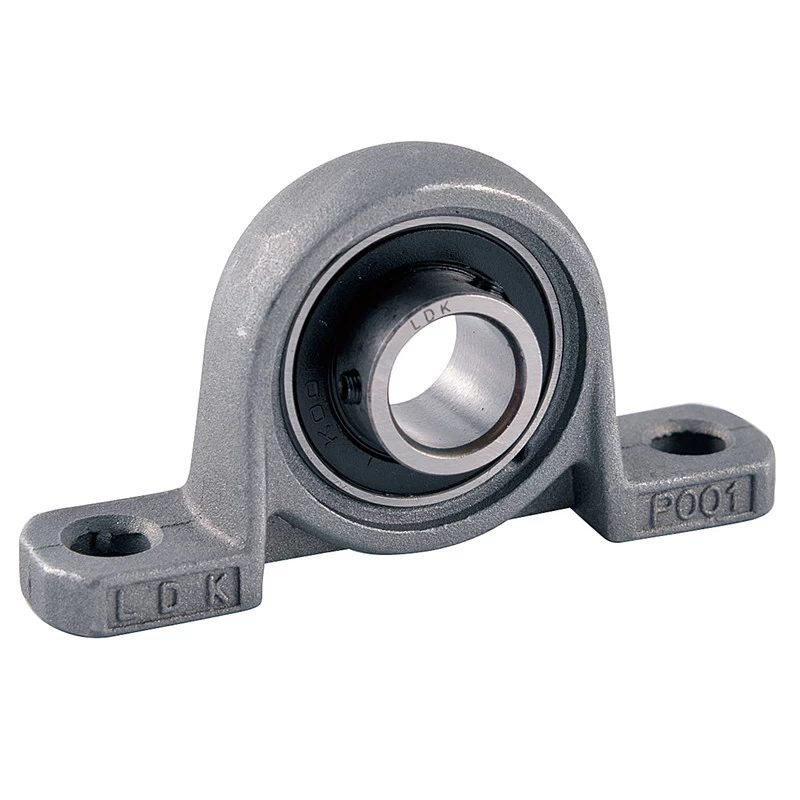

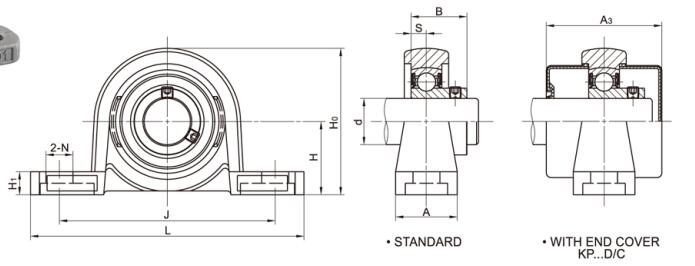

KP006 Zinc Alloy Miniature Mounted Unit

Unit No. Shaft d(mm) Dimensions (mm) Bolt Size mm Bearing No. Housing No. Weight (kg)
H L J A H1 H0 N S B A3
KP000 10 18 67 53 16 6 35 7 4 14 28.3 M6 K000 P000 0.08
KP001 12 19 71 56 16 6 38 7 4 14.5 30 M6 K001 P001 0.1
KP002 15 22 80 63 16 7 43 7 4.5 16.5 33 M6 K002 P002 0.14
KP003 17 24 85 67 18 7 47 7 5 17.5 36 M6 K003 P003 0.17
KP004 20 28 100 80 20 9 55 10 6 21 40 M8 K004 P004 0.25
KP005 25 32 112 90 20 10 62 10 6 22.5 41 M8 K005 P005 0.33
KP006 30 36 132 106 26 11 70 13 6.5 24.5 43 M10 K006 P006 0.5

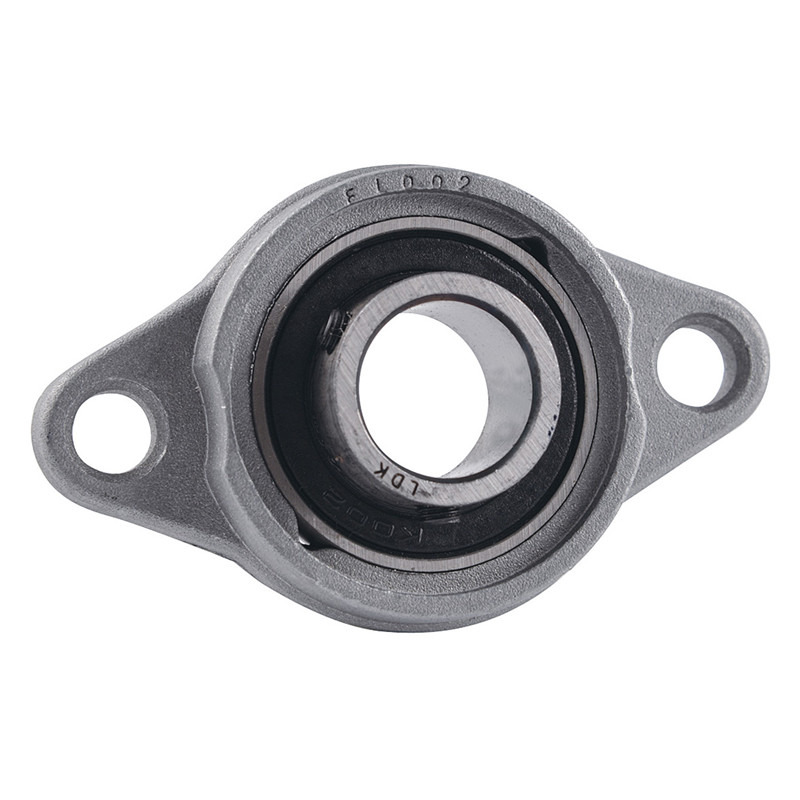

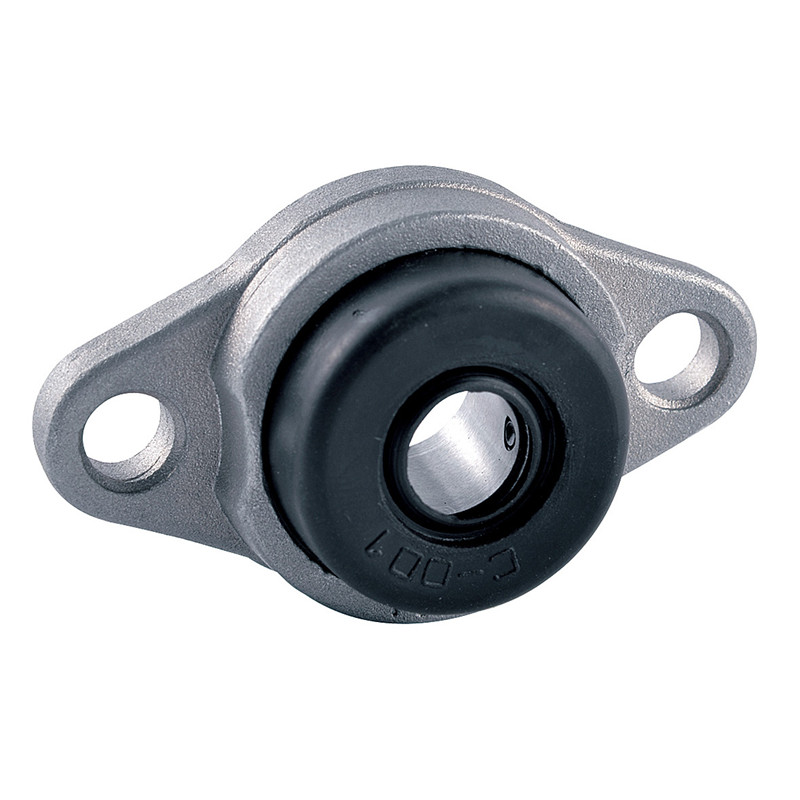

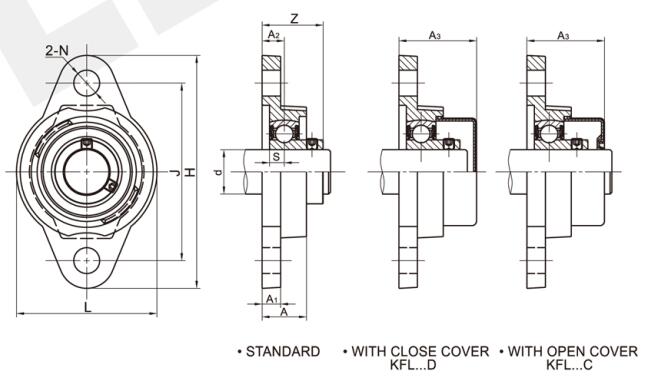

KFL002 Zinc Alloy Miniature Mounted Unit

Unit No. Shaft d(mm) Dimensions (mm) Bolt Size mm Bearing No. Housing No. Weight (kg)
H J A2 A1 A N L S Z A3
KFL000 10 60 45 6 6 12 7 36 4 16 20.3 M6 K000 FL000 0.07
KFL001 12 63 48 6 6 12 7 38 4 16.5 21 M6 K001 FL001 0.08
KFL002 15 67 53 6.5 6.5 13 7 42 4.5 18.5 23 M6 K002 FL002 0.11
KFL003 17 71 56 7 7 14 7 46 5 19.5 25 M6 K003 FL003 0.14
KFL004 20 90 71 8 8 16 10 55 6 23 28 M8 K004 FL004 0.23
KFL005 25 95 75 8 8 16 10 60 6 24.5 28.5 M8 K005 FL005 0.27
KFL006 30 112 85 9 9 18 13 70 6.5 27 30.5 M10 K006 FL006 0.39
