Zinc Alloy Miniature Bearing Unit UP00 UFL00



UP/UFL  Setscrew/Eccentric locking,Pillow block/2-Bolt flange


Facebook Twitter Pinterest LinkedIn 分享

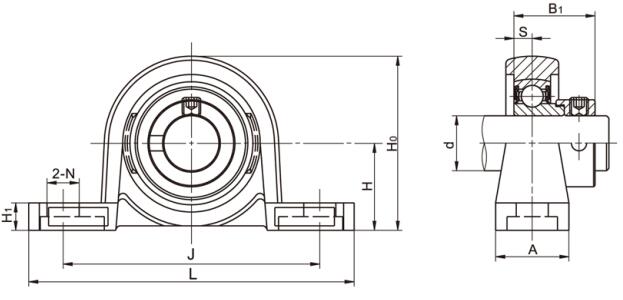

Zinc Alloy Miniature Bearing Unit UP004

Unit No. Shaft Dimensions(mm) Bolt Size mm
Bearing
No.
Housing
No.
Weight (kg)
d(mm) H L J A H1 Ho N S B1
UP000 10 18 67 53 16 6 35 7 4 17.7 M6 U000 P000 0.08
UP001 12 19 71 56 16 6 38 7 4 17.7 M6 U001 P001 0.10
UP002 15 22 80 63 16 7 43 7 4.5 18.7 M6 U002 P002 0.14
UP003 17 24 85 67 18 7 47 7 5 20.7 M6 U003 P003 0.17
UP004 20 28 100 80 20 9 55 10 6 24.2 M8 U004 P004 0.26
UP005 25 32 112 90 20 10 62 10 6 25 M8 U005 P005 0.33
UP006 30 36 132 106 26 11 70 13 6.5 26 M10 U006 P006 0.50




Zinc Alloy Miniature Bearing Unit UFL003
Unit No. Shaft d(mm) Dimensions(mm) Bolt Size mm Bearing No. Housing No. Weight (kg)
H J A2 Al A N L s Z
UFL000 10 60 45 6 6 12 7 36 4 19.7 M6 U000 FL000 0.07
UFL001 12 63 48 6 6 12 7 38 4 19.7 M6 U001 FL001 0.08
UFL002 15 67 53 6.5 6.5 13 7 42 4.5 20.7 M6 U002 FL002 0.11
UFL003 17 71 56 7 7 14 7 46 5 22.7 M6 U003 FL003 0.14
UFL004 20 90 71 8 8 16 10 55 6 26.2 M8 U004 FL004 0.23
UFL005 25 95 75 8 8 16 10 60 6 27 M8 U005 FL005 0.27
UFL006 30 112 85 9 9 18 13 70 6.5 28.5 M10 U006 FL006 0.39
