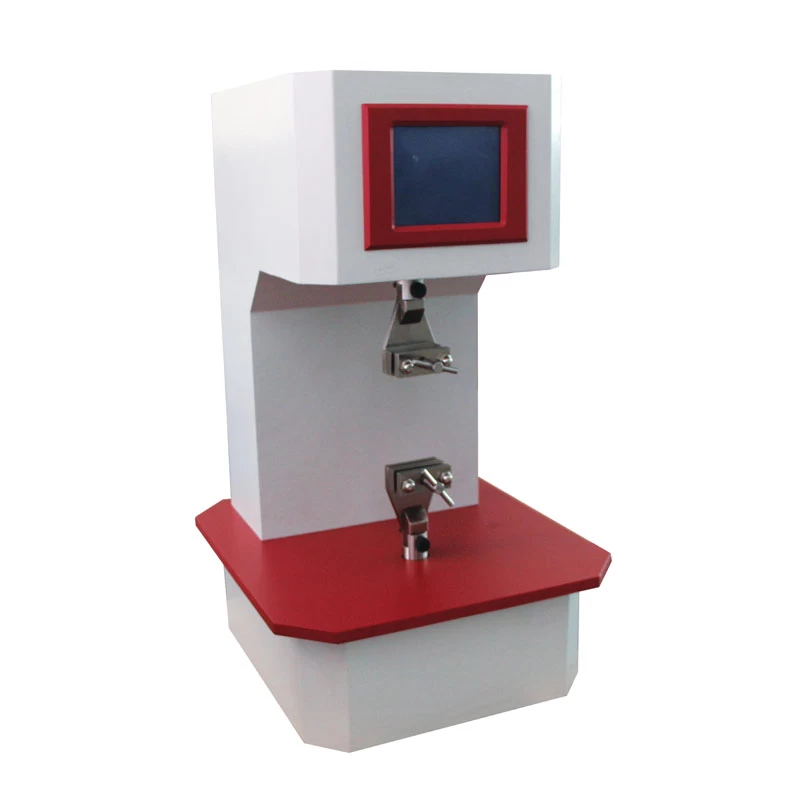

AG09- Zipper Rotation Testing Machine
Application Of Zipper Rotation Testing Machine
Zipper Rotation Testing Machine is used to determine the torsion resistance of zippers, offer 3 test methods: torsion breaking, angle test and load test.
Feature Of Zipper Rotation Testing Machine
1. Three test method: torsion breaking, angle test and load test
2. Touch screen display and with humanization design, low noise, beautiful look and easy to operate.
3. High precision torque sensor with small error, automatic torsion tracking and peak holding function.
4. Bidirectional torque measurement, can arbitrary angle rotation.
5. Unit can be freely switched from CN.m and N.m.
Standards Of Zipper Rotation Testing Machine
ASTM D2061 16CFR1500.51 52 53.
Key Specification Of Zipper Rotation Testing Machine
|
Model
|
AG09 Zipper Rotation Testing Machine
|
|
Torsion range
|
0-10.0N.M (1000cN.m),±0.1cN.m
|
|
Torsion angle
|
Any angle, can be set
|
|
Torsion angle accuracy
|
±0.1°
|
|
Torsion speed
|
Can be set
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
460*410*550mm
|
|
Weight
|
50kg
|
Accessories Of Zipper Rotation Testing Machine
|
Standard Accessories
|
Fixture
|
1set
|
|
Power line
|
1pc
|
