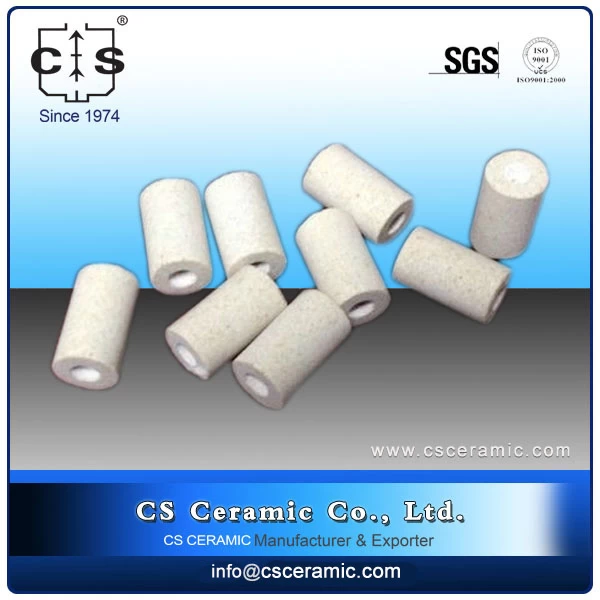

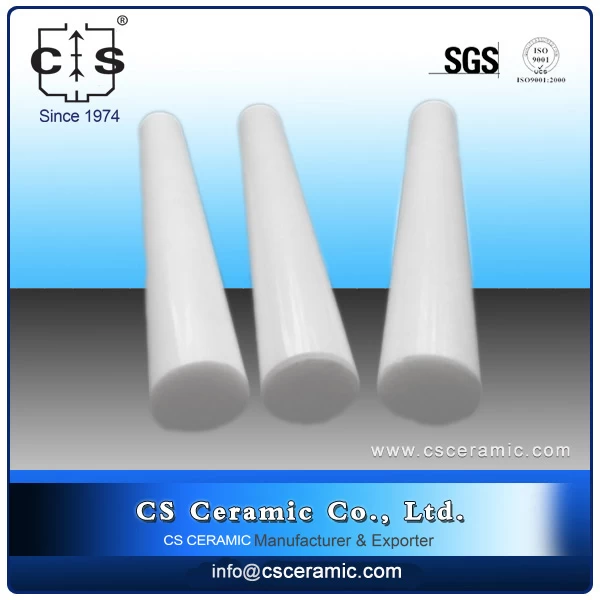

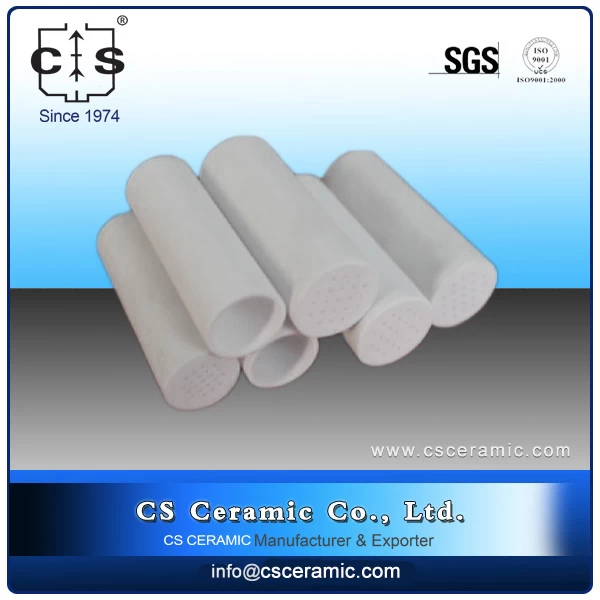

Product Item: Zirconia Ceramic Tube One End Both End or Rod
Produc Description
|
Product name
|
zirconia ceramic tube
|
|
Place of Origin
|
Liling, China(mainland)
|
|
Brand Name
|
CS Ceramic CO.,Ltd
|
|
Type
|
Insulating Ceramic
|
|
Material
|
Alumina
|
|
Color
|
White
|
|
Size
|
Customzied
|
|
Shape
|
Custom-shaped
|
|
Producing Method
|
Hot pressing/Dry pressing
|
|
Design
|
ceramic shaft
|
|
Payment
|
T/T, Western Union
|
|
MOQ
|
1000pieces
|
|
Packing
|
Carton /Pallet/Wooden case (According to clients requirement)
|
|
Delivery time
|
Standard Product: Within 3 days
|
|
New developed items: 15days
|
|
Application
|
Heating
|
|
Features
|
1. Many kinds of insulated ceramics available
|
|
2. It can satisfy constant's technical request
|
|
3. Good lead-heat capability
|
|
4. High resistance
|
|
5. High temperature and high voltage resistant
|
zirconia ceramic tube selected raw materials
We manufactures custom technical ceramics, covering a wide range of customer requirements .We make use of several forming and machining techniques to process components made from alumina Ceramics.
Alumina Ceramics Technical Parameter
|
Alumina Content
|
80-85%
|
90-96%
|
> 99.5%
|
99%
|
|
General Application
|
Lower Cost Electrical & Mechanical
|
High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing
|
Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance
|
Porous, Easily Degassed & Machinable
|
|
Porosity
(%)
|
0-.05
|
0-.05
|
0-.05
|
Variable
|
|
Density
(gm/cm3)
|
3.45-3.50
|
3.55-3.75
|
3.75-3.95
|
2.4
|
|
Flexural Strength (kpsi)
|
35.0-40.0
|
40.0-50.0
|
50.0-55.0
|
-
|
|
Comprehensive Strength
(kpsi)
|
260.0
|
> 300.0
|
> 300.0
|
-
|
|
Tensile Strength
(kpsi)
|
15.0-20.0
|
20.0-28.0
|
20.0-28.0
|
-
|
|
Linear Coefficient of Thermal Expansion
((cm/cm/°C) 25-300°C 25-700°C)
|
5.9X10-6 6.5X10-6
|
6.3X10-6 7.0X10-6
|
6.5X10-6 7.5X10-6
|
6.5X10-6 7.5X10-6
|
|
Dielecctric Constant at 25°C
(1 MH 10 MH)
|
8.5-8.9
8.4-8.8
|
9.2-9.8 9.0-9.6
|
9.5-9.9 9.3-9.7
|
-
|
|
Dielectric Strength
(Volt/mil)
|
200
|
225
|
225
|
-
|
|
Te Value
(°F °C)
|
1472 800
|
> 1832 > 1000
|
> 1832 > 1000
|
> 1832 > 1000
|
|
Thermal Conductivity at 25°C (cal/sec/cm2/cm/°C)
|
.03-.04
|
.04-.06
|
.07-.08
|
-
|
|
Thermal Shock
|
Good
|
Good
|
Good
|
Good
|
|
Safe Use Temperature (°F °C)
|
2550 1400
|
3000-3100 1650-1700
|
3275 1800
|
3275 1800
|
If need open new mould, please send us detail specification and design drawing firstly, we'll reply you in 24 hours. Contact email: info@csceramic.com
