Product Features
✔ Wider Temperature Range: -20℃~60℃
✔ longer Cycle Life:＞6000 Cycles
✔ More Safer : Bulit in BMS system
✔ More Reliable:CE,EMC,TUV（IEC62619）,UL1973 Certification.
✔ Plug in and play:plug in batteries then working.
✔ Free of heavy metals and environment friendly.
✔ Maintenance Free, Smart BMS accept communication with many brand inverters

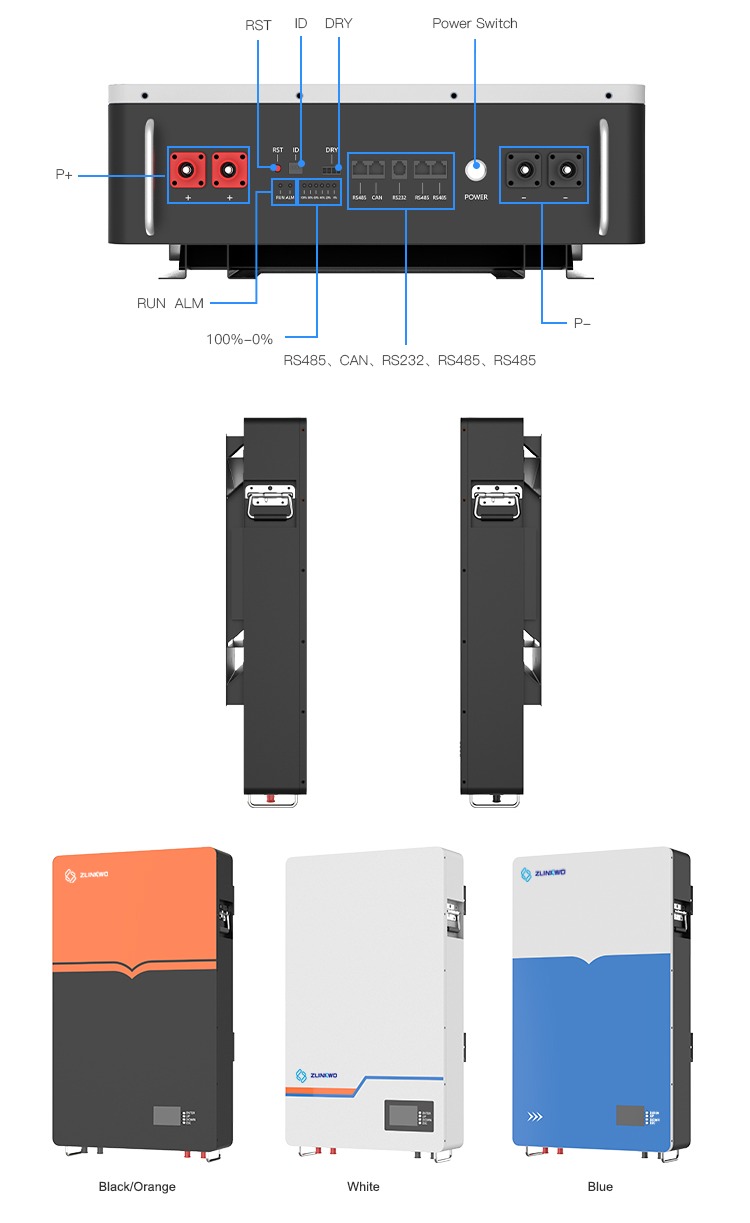

Detailed function display
Technical Parameter Table
|
Model
|
ZL-BG9500W
|
|
Rated Voltage（V）
|
51.2
|
|
Rated Capacity（Ah）
|
186
|
|
Rated Energy（Wh）
|
9523
|
|
Voltage Range（V）
|
44.8-56
|
|
Charge Voltage Range（V）
|
55.2-56
|
|
Cut-off Voltage（V）
|
44.8
|
|
Recommend Charge Current（A）
|
100
|
|
Max Charge Current（A）
|
166
|
|
Max Discharge Current（A）
|
166
|
|
Dimension(L*W*H)
|
457*163*760 mm
|
|
Weight（kg）
|
70
|
|
Communication Port
|
RS485，CAN
|
|
Display
|
LED+LCD
|
|
Terminal
|
Plug-in
|
|
Compatible inverter
|
Growatt,Goodwe,Sol-Ark,SRNE, DEYE
|
|
Humidity（%）
|
5-95% RH
|
|
Charge Temperature Range（℃）
|
0-45
|
|
Discharge Temperature Range（℃）
|
-20-60
|
|
Storage Temperature Range（℃）
|
-20-45
|
|
Cycle Life
|
＞6000 （0.5C@ 25℃，80% DOD）
|
|
Safety & Certification
|
CE，EMC，TUV（IEC62619），UL1973
|
|
Transportation
|
UN38.3
|

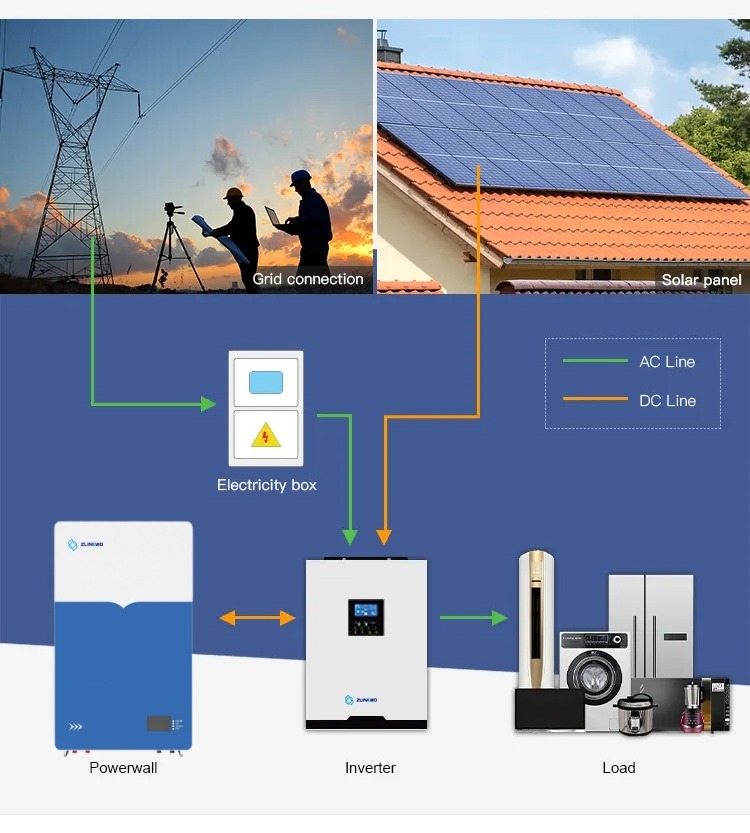

How does the Solar Powerwall work?

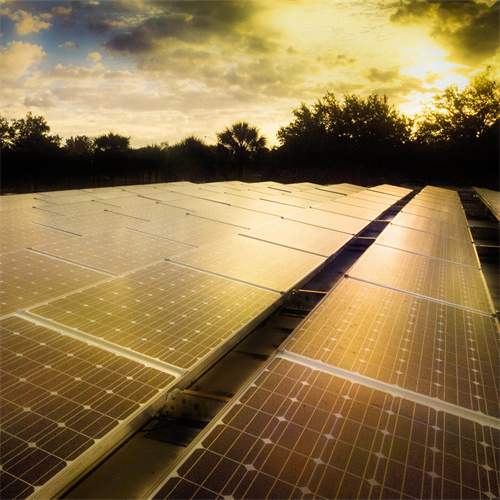

The Solar Powerwall works like most Home Battery Banks. It stores energy from sources such as solar panels or the grid or even a generator and can release the redirected energy for more flexible use in the future when it is needed. With the increase in residential solar energy storage installations in recent years, Solar Powerwall batteries are often paired with solar panels to store excess energy production. This provides a clean source of energy that can power homes during the day and night, on cloudy days, and dark days in the winter.
Not only does the Solar Powerwall work in off-grid solar systems, but it is equally important in grid-tied solar systems, and we are excited to see more and more homeowners choosing the Solar Powerwall to provide greater flexibility for their solar systems and their home energy.

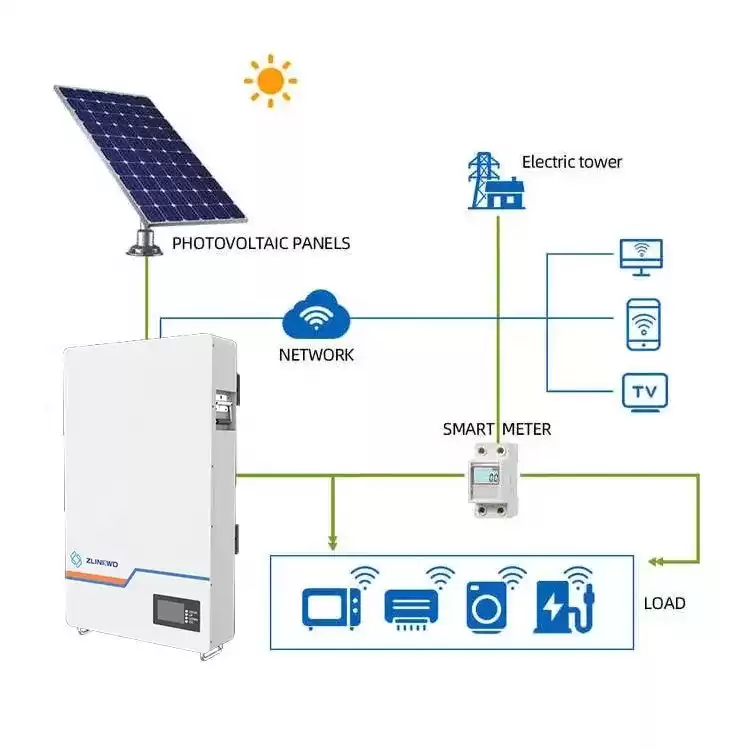

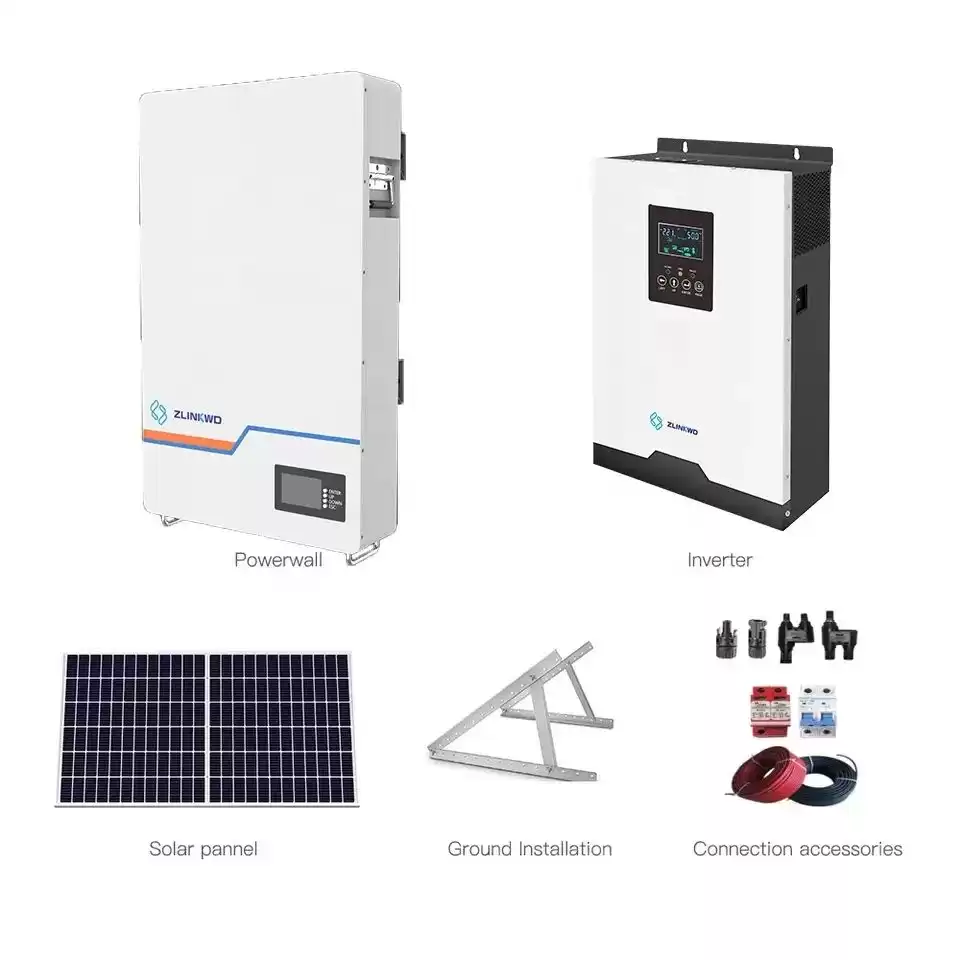

Composition of residential energy storage system
Application Scenarios

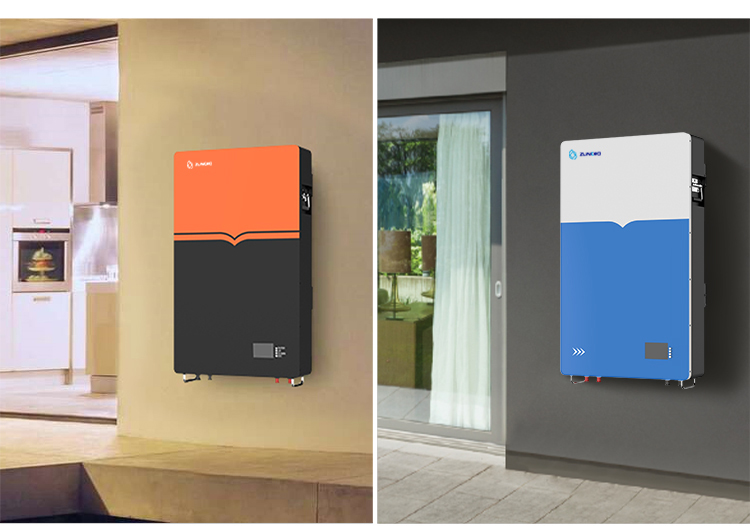

1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation

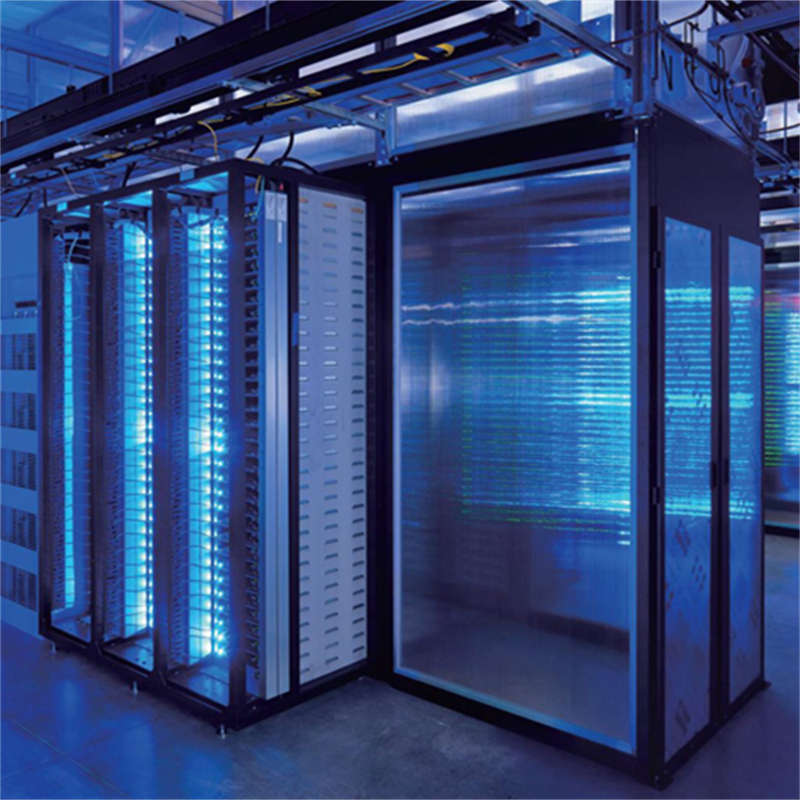

5. Commercial and industrial applications
-
-
-
-
Household New Energy Vehicles
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: Yes,you can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
