a. Main Features:
(1)、Small in size, light weight, easy to install with high density
(2)、Secondary output current, strong antijamming capability
(3)、With excellent linearity, wide working range, perfect consistency
b. Electrical Parameters:
(1)、Rated input current: 0~10A
(2)、Rated output current: 0~10mA
(3)、Non-linearity: Ratio error ＜±0.1%; Phase error ＜±5′
(4)、Range of linearity：10%～2000% （or more）rated current
(5)、Frequency characteristic: 45~800HZ
(6)、Limitation of power consumption: 0.5VA
(7)、Insulation resistance: 500MΩ @500VdC
(8)、Operating temperature: -40℃~+85℃
(9)、Power frequency withstands voltage: 3kV 2mA 1min
(10)、Output load resistance:≤400Ω
(11)、Structure：Epoxy encapsulating
(12)、Outer casing：PBT heat-resistant material or ABS flame-retardant material
(13)、Terminal：input and output→pins

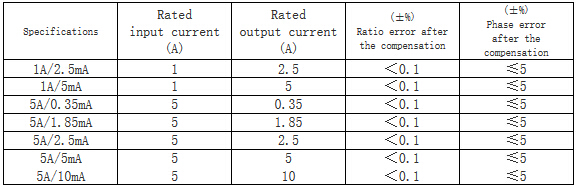

c. Technical parameters of commonly used product specifications
Note: The above specifications are stock products’ specifications. We can also design for customers according to their requirements.
