ZRP-DC17 anti-dc current transformer

With excellent linearity, wide working range, perfect consistency.With excellent transient characteristics, real waveform transfer, and can bear 20~40 times
instantaneous impact from rated current and still be unsaturated.Suppressing dc component: when dc component contained in the input energizing quantity is
no more than 50% of the input ac componentthe ac component can pass the converter normally,

and waveform distortion will not occur .

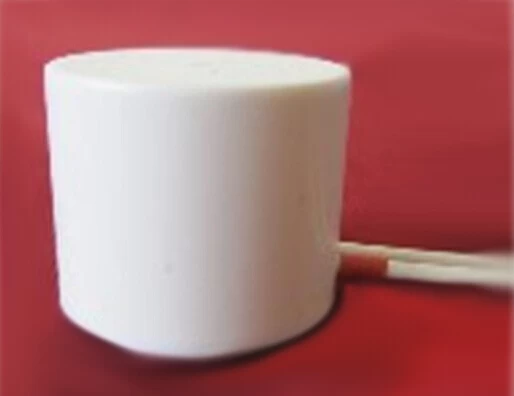

ZRP-DC17 Anti-DC Current Transformer

a. Main Features:
(1)With excellent linearity, wide working range, perfect consistency

(2)With excellent transient characteristics, real waveform transfer, and can bear 20~40 times

instantaneous impact from rated current and still be unsaturated
(3)Suppressing dc component: when dc component contained in the input energizing quantity is

no more than 50% of the input ac componentthe ac component can pass the converter normally,

and waveform distortion will not occur
(4)Can effectively inhibit the interference of group-signal from electrical fast transient pulse

(5)Reliable insulation between primary winding and vice edge winding, winding and shielding

b. Electrical Parameters:
(1)Rated input current: 1~5 A

(2)Rated output voltage: 0.1~0.5 V

(3)Non-linearity:  Ratio difference ±0.2%;   Angle difference ±60′

(4)Range of linearity10%1000% or morerated current

(5)Frequency characteristic: 45~800HZ

(6)Limitation of power consumption: 0.5VA

(7)Insulation resistance: 500MΩ @500VdC

(8)Operating temperature: -40~+85

(9)Power frequency withstands voltage: 3kV 2mA 1min

(10)Output load resistance:50KΩ

(11)StructureEpoxy encapsulating

(12)Outer casingPBT heat-resistant material or ABS flame-retardant material

(13)Terminalinputwire, outputpin

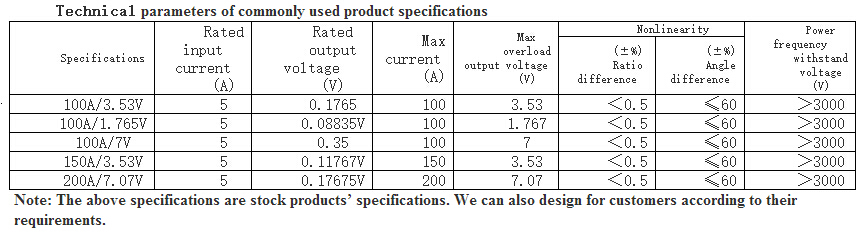

Specifications
