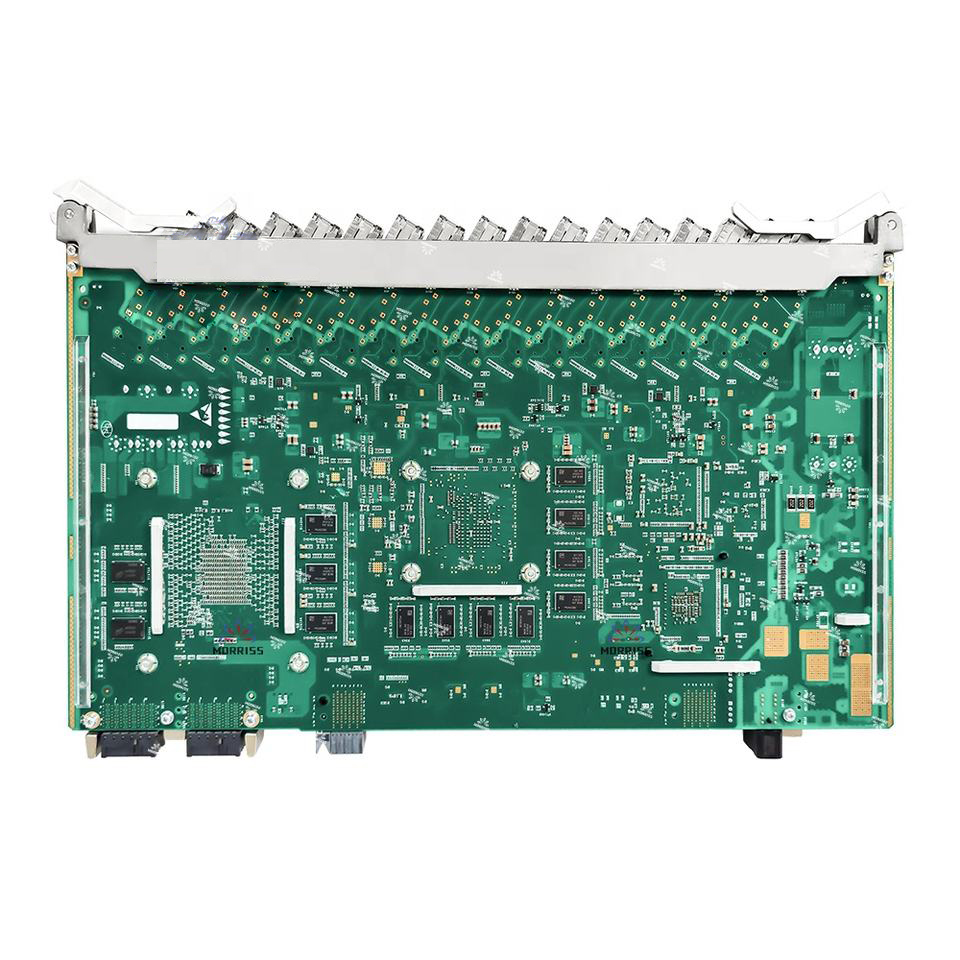

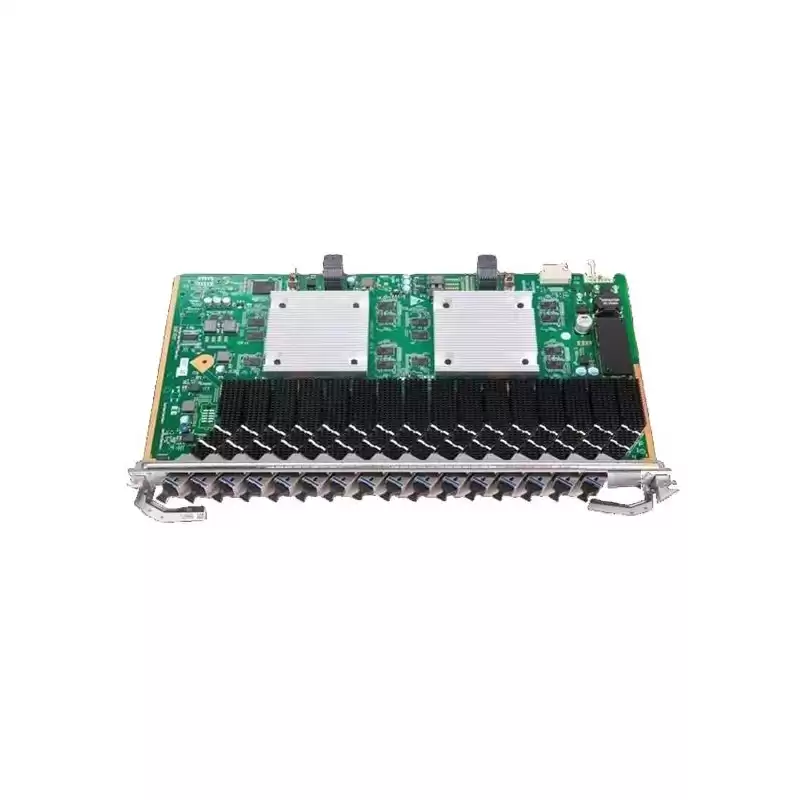

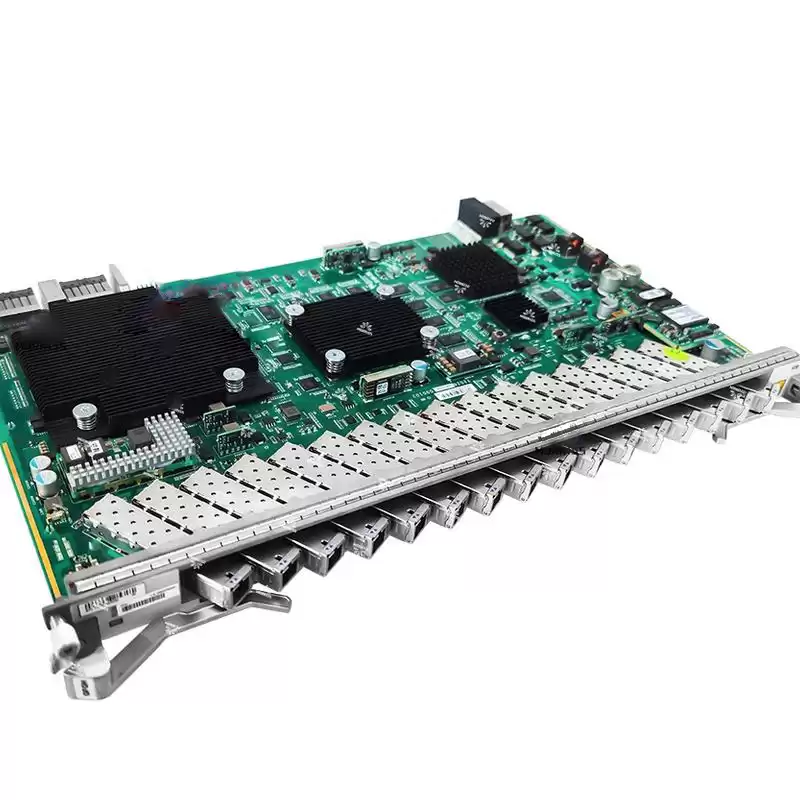

ZTE EFGH Service Board
Product Description
|
rand
|
ZTE
|
|
Model
|
EFGH
|
|
GPON Port
|
16-GPON Port
|
|
Type
|
C++ Module: Single Fiber Bidirectional Optical Module, Class C++
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
|
|
Minimun Output Optical Power
|
C++ Module : 4.50 dBm
|
|
Maximum Output Optical Power
|
C++ Module : 8.00 dBm
|
|
Maximum Receiver Sensitivity
|
C++ Module : -30 dBm @10E-10
|
|
-32 dBm @10E-10
|
ZTE ETGH Service Board Product Overview
ZTE ETGH Service Board is designed to increase the number of subscriber units (ONT / ONUs) connected to ZTE optical line terminals (OLTs) like C300 and C320 platforms.
ZTE ETGH Service Board contains 16 optical ports for connecting subscriber devices via the EPON interface (GEPON). In each port, we can install an optical transceiver (transceiver) SFP GEPON OLT PX20 (28dB) or SFP GEPON OLT PX20 + (33dB), transmitting/receiving data with the asymmetric speed of up to 1.25 Gbit / s over a distance of 20 km. The modules use lasers with wavelengths of 1490 nm (transmission) and 1310 nm (reception). The division ratio of each port is 1:64. PON MAC Module
Product Details
Our Advantages
We have ZTE EFGH for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
ZTE EFGH , like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
ZTE EFGH represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
