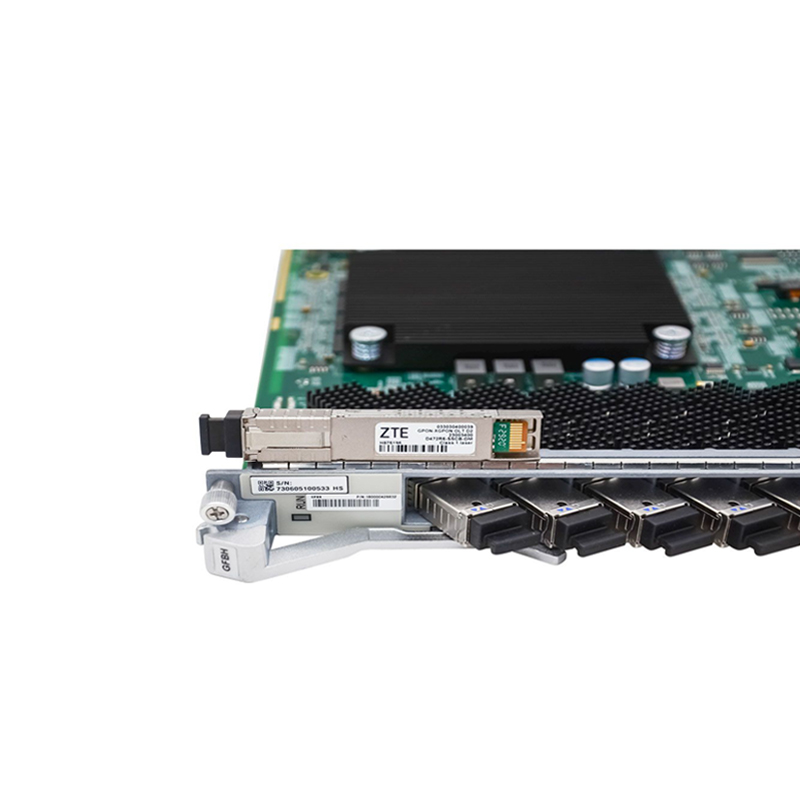

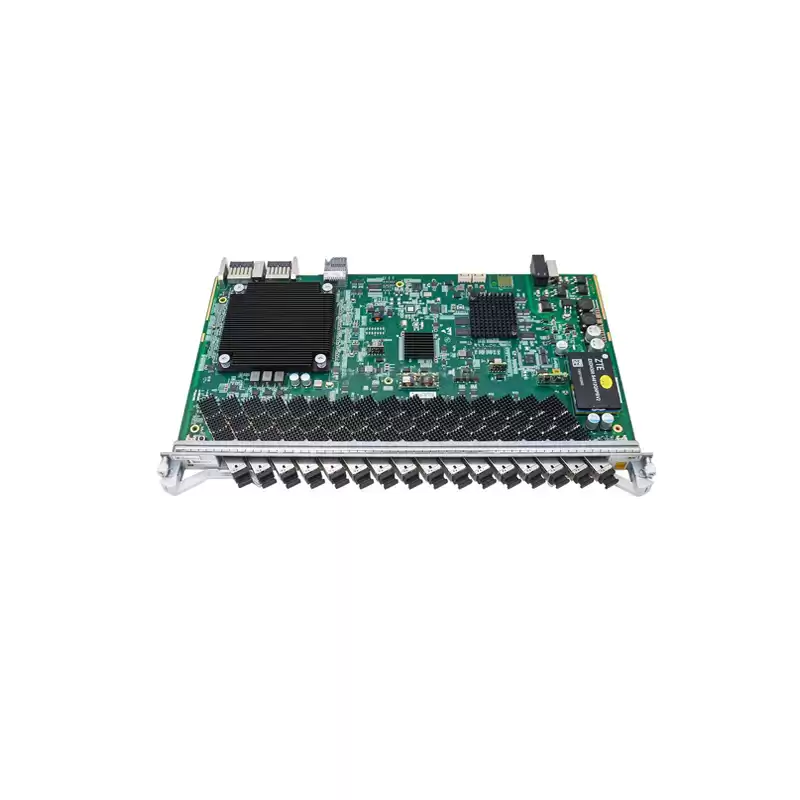

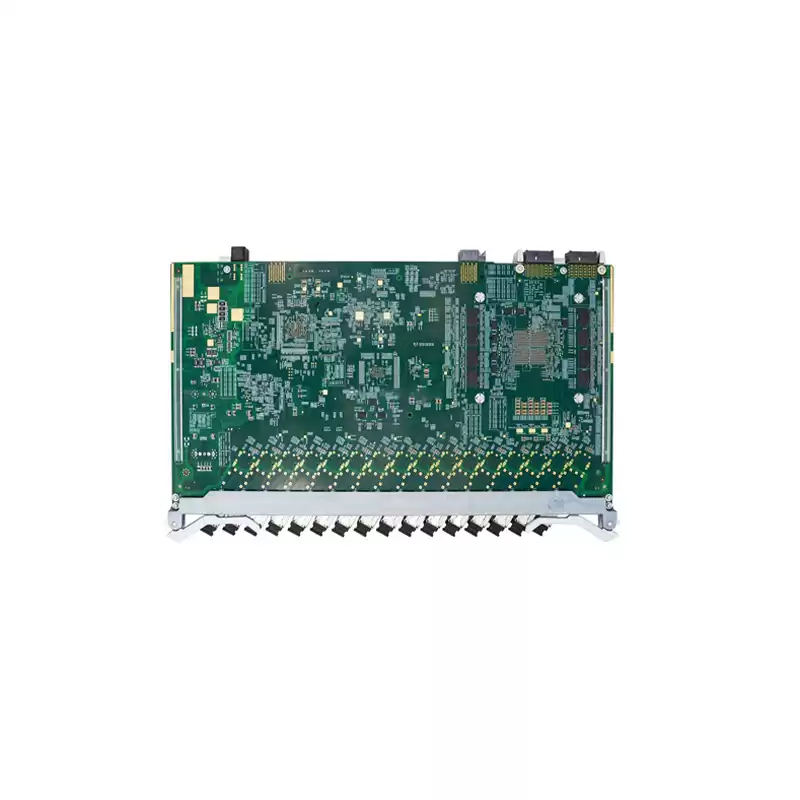

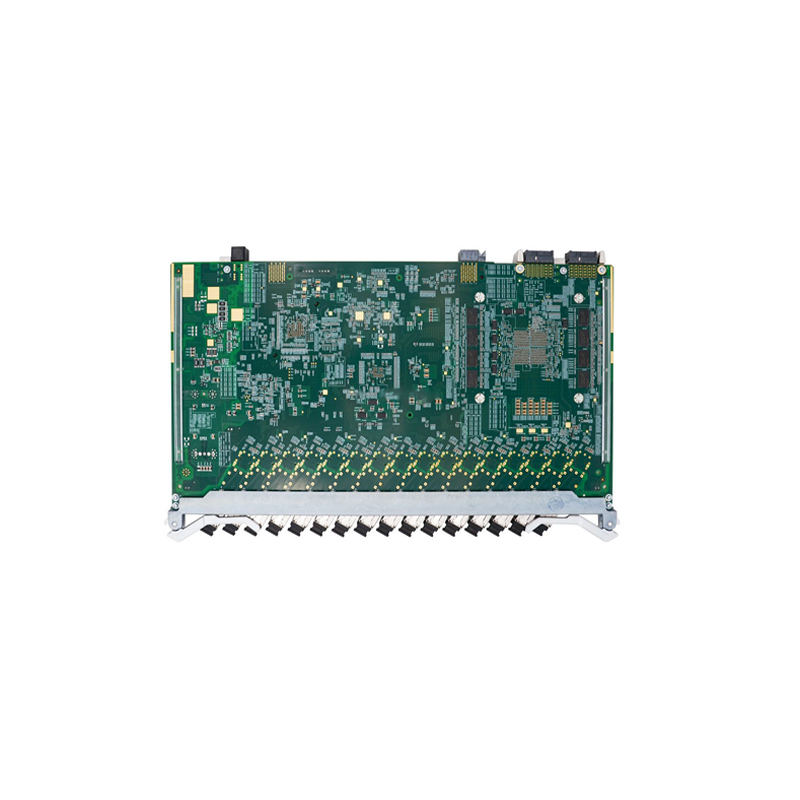

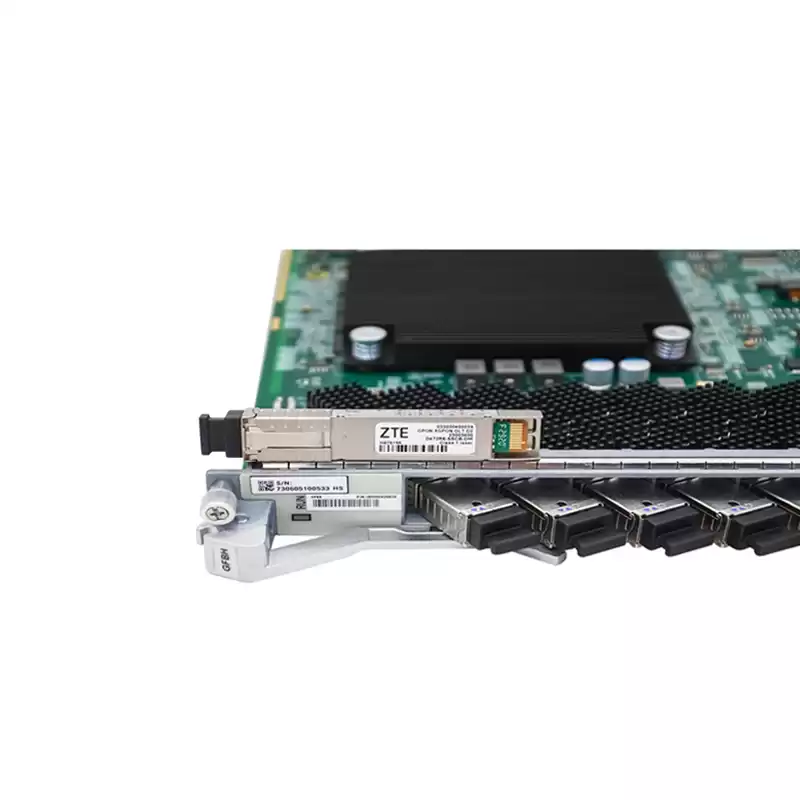

ZTE GFBH 16port XGS-PON COMBO board for ZTE C600 OLT ZXA10 GFBH GFCH GFXH GFGH GFBL GFGM GFBN GFBNR GFBT GFBL/D2 GFTH CGHF
Product Description
|
Brand
|
ZTE
|
|
Model Name
|
GFBH
|
|
Port
|
16-port
|
|
Interface
|
XG-PON & GPON Combo
|
|
Function
|
XG-PON & GPON service access
|
|
Specification
|
XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector
|
|
Management and control module
|
Configures, controls, and manages the card.
|
|
PONMAC module
|
Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.
|
|
NP module
|
Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
|
|
Optical module
|
Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.
|
|
Clock module
|
Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
|
|
Weight
|
1.72 kg
|
|
Dimensions (L x H x W)
|
393.1 mm × 23.9 mm × 214 mm
|
ZTE GFBH Service Board and More Related Service Boards
ZTE GFGN Service Board GPON16-port service board with C+/C++ module suitable for C600
ZTE GFGL Service Board GPON 16-port service board with C+/C+ + module suitable for C600
ZTE GFGH Service Board GPON 16-port service board with C+/C+ + module suitable for C600
ZTE GFGM Service Board GPON 16-port service board with C+/C++ module suitable for C600
ZTE EFGH Service Board 16 EPON interface board for C600
ZTE GFTH Service Board 16 port 10G GPON interface board for C600
ZTE GFXH Service Board 16 port XG-PON interface board for C600
ZTE GFBH Service Board 16 port GPON & XG PON Combo interface board suitable for C600
ZTE GFCH Service Board 16 port GPON & XGS- PON Combo interface board for C600
ZTE GFBL Service Board 16 port GPON & XG PON Combo interface board suitable for C600
ZTE GFBN Service Board 16 port GPON & XG-PON Combo connect to C board, suitable for C600
ZTE GFBT Service Board 16 port GPON & XG PON Combo interface board for C600
