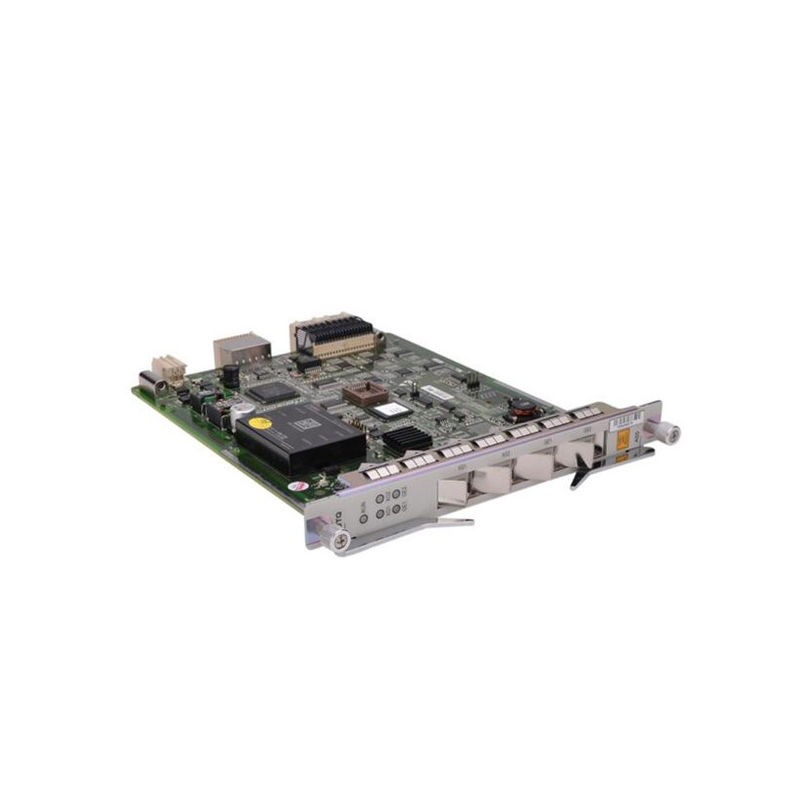

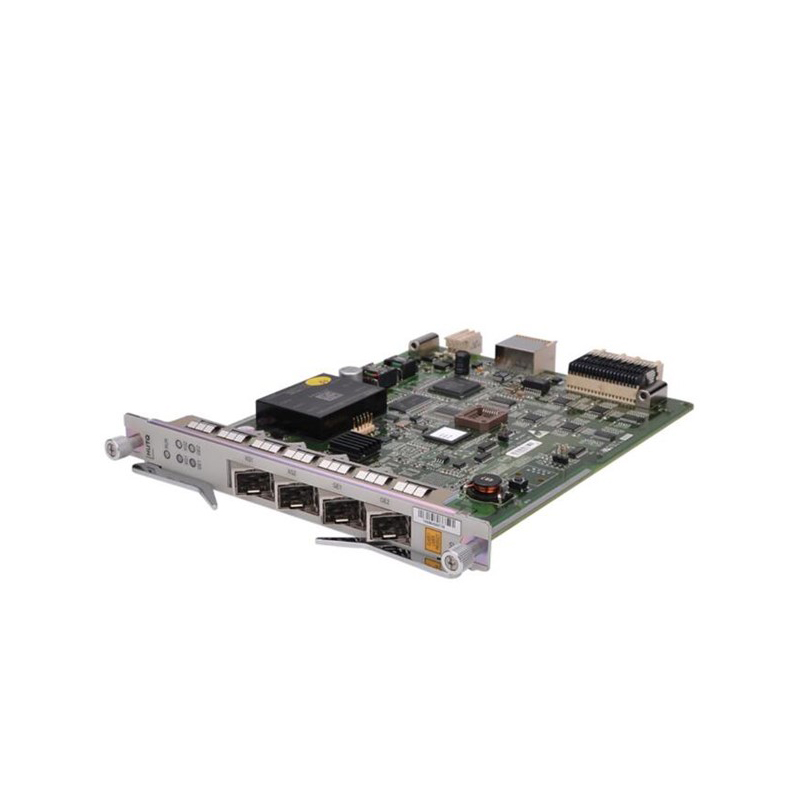

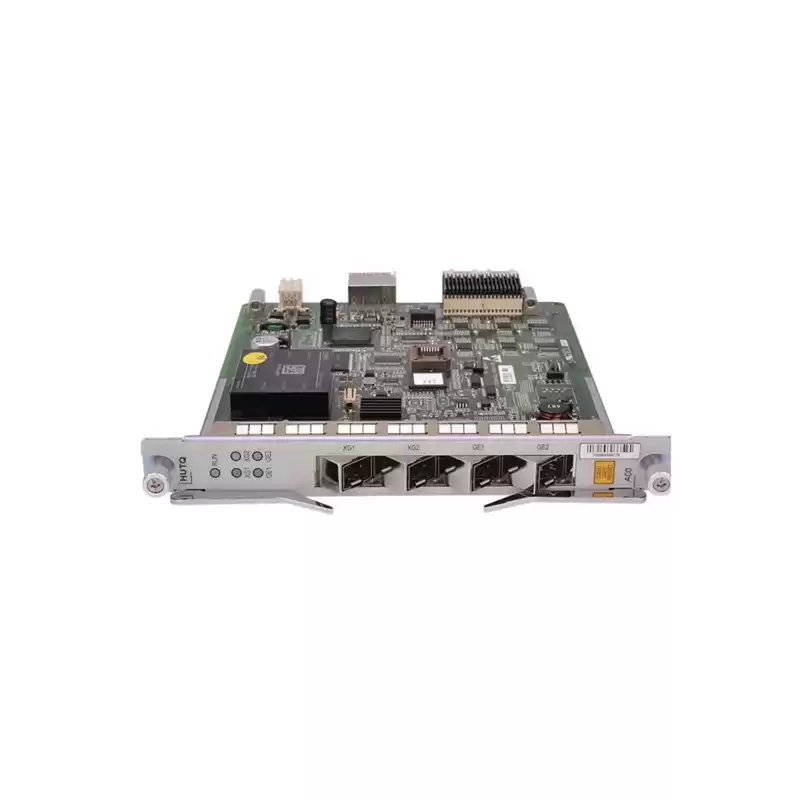

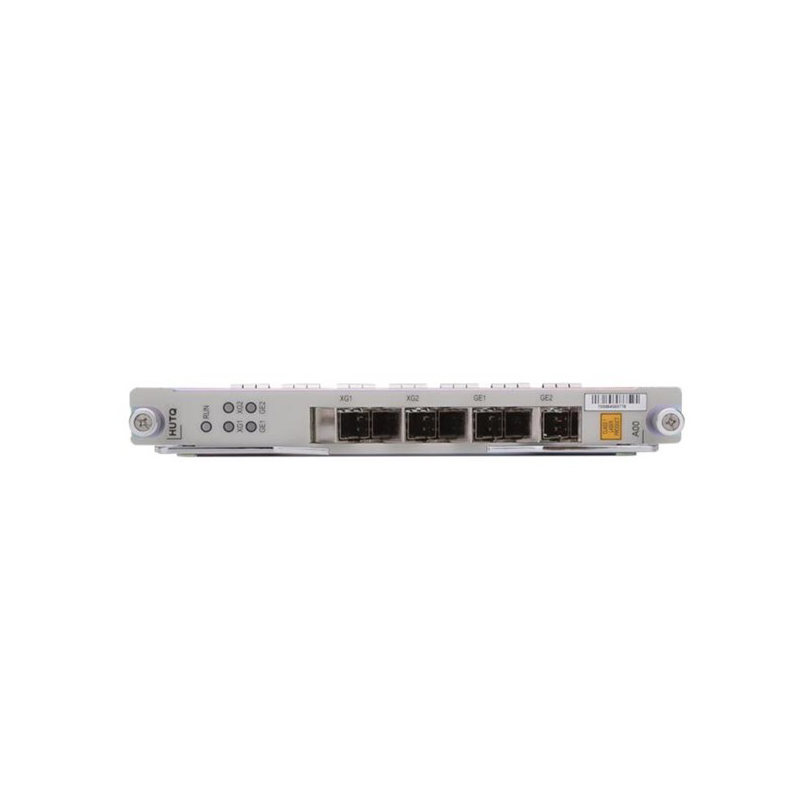

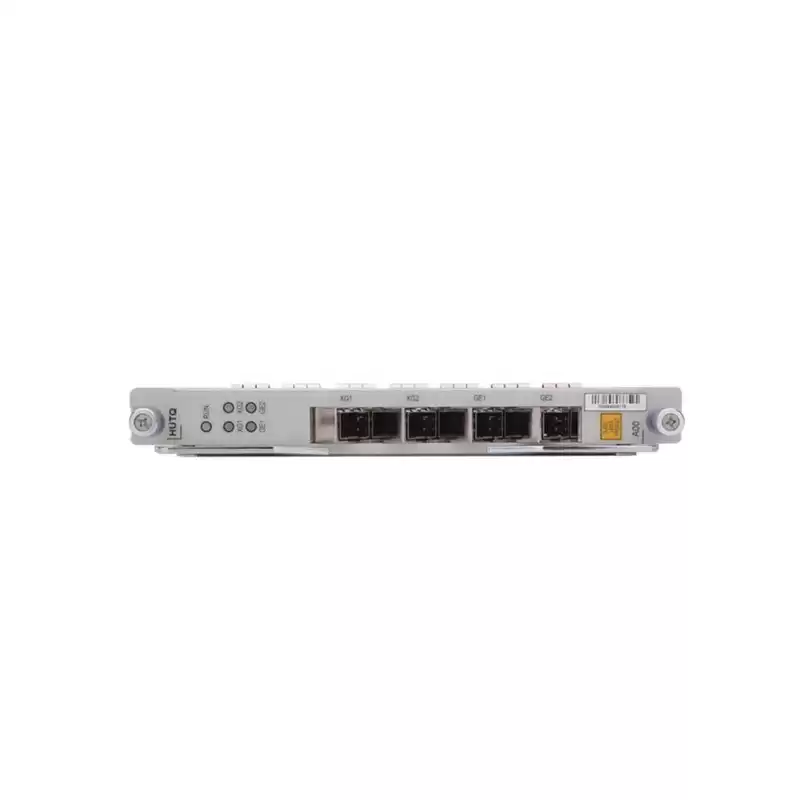

ZTE HUTQ Uplink Card for C300
Product Description
|
Backplane capacity
|
5,76 Tbit/s
|
|
Switching capacity
|
800 Gbit/s
|
|
Number of service cards
|
14 (GPON/P2P/XG-PON1)
|
|
Number of control cards
|
2
|
|
Number of power supply cards
|
2
|
|
Number of uplink cards
|
2 (10GE/GE/FE/E1/T1)
|
|
Maximum number of GPON subscribers
|
16384
|
|
Management Interfaces
|
CLI, SSH, SNMP, telnet
|
|
Dimensions
|
10U (443,7 x 482,6 x 270 mm)
|
|
Power
|
-48 V (DC)
|
|
Working temperature and humidity
|
-25°C - +55°C, 5% - 95%
|
ZXA10 C300 is aconvergent optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands.
ZXA10 C300, the world's first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as economy in mind. Its powerful functions and high performance make mass FTTx roll-out easier than ever before.
In the face of increasing demands for high bandwidth and multi-play services, operators have to make a balance between economy and mass roll-out. How to smoothly evolve from FTTC, FTTB and FTTCab to FTTH is a challenge in front of telcos nowadays. Operators are considering building a PON network that is green, futureproof and saves TCO.
ZTE HUTQ Uplink Card Product Features
Adapt to network convergence and full service carrying
The ZTE C300 interface is flexible, with a powerful 1588 / 1PPS + TOD high-precision time and clock transmission capability, adapting to TDM and mobile backhaul bearers, perfect VL AN / multicast / QoS service capabilities and excellent service performance, providing a fine PONDBA dynamic bandwidth allocation mechanism And QoS mechanism, in line with the requirements of optical advance copper retreat and triple-play network construction.
ZTE C300 carrier-grade system and business security and reliability guarantee
Support Ethernet OAM and end-to-end management operation and maintenance, redundant protection and hot swap of key boards, provide multiple network protection methods, support optical link detection, and have strong security protection.
ZTE C300 saves energy and reduces emissions, green products help operators build green communications
It adopts green materials to meet the industry’s energy conservation and emission reduction needs, supports multiple power saving modes, products are lead-free, environmentally friendly, and is green throughout the entire process of product development, production and transportation.
Product Details
Our Advantages
We have ZTE HUTQ for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
ZTE HUTQ, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
ZTE HUTQ represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
