ZTE PRAM AC Power Card 220V Power Module for C320
Product Description
|
Brand
|
ZTE
|
|
Model
|
C320
|
|
Backplane capacity
|
420 Gbit/s
|
|
Switching capacity
|
84 Gbit/s
|
|
service cards
|
2 (GPON/P2P/XG-PON1)
|
|
combined control cards
|
2
|
|
power supply cards
|
1
|
|
uplink cards
|
1 (10GE/GE/FE/E1/T1)
|
|
Max GPON subscribers
|
4096
|
|
Management Interfaces
|
CLI, SSH, SNMP, telnet
|
|
Dimensions
|
2U (86,1 x 482,6 x 270 mm)
|
|
Power
|
-48 V (DC), 230V (AC)
|
|
Working temperature and humidity
|
-25°C – +55°C, 5% – 95%
|

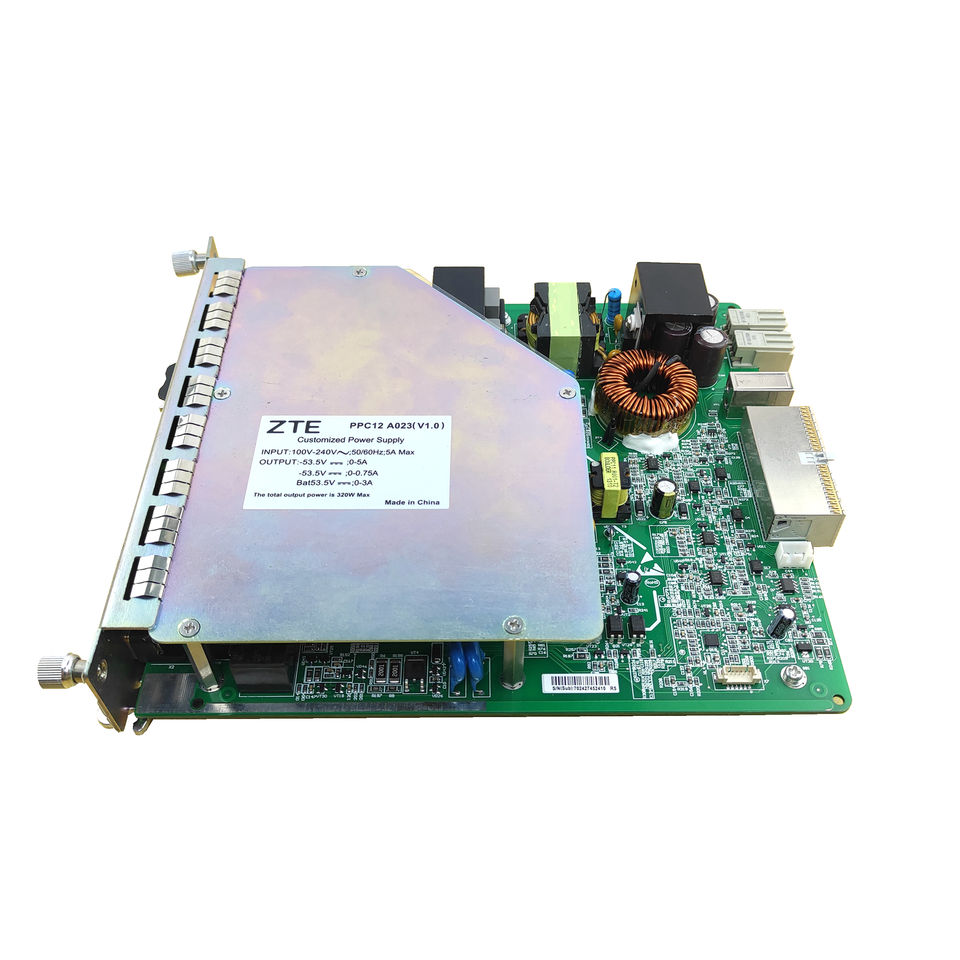

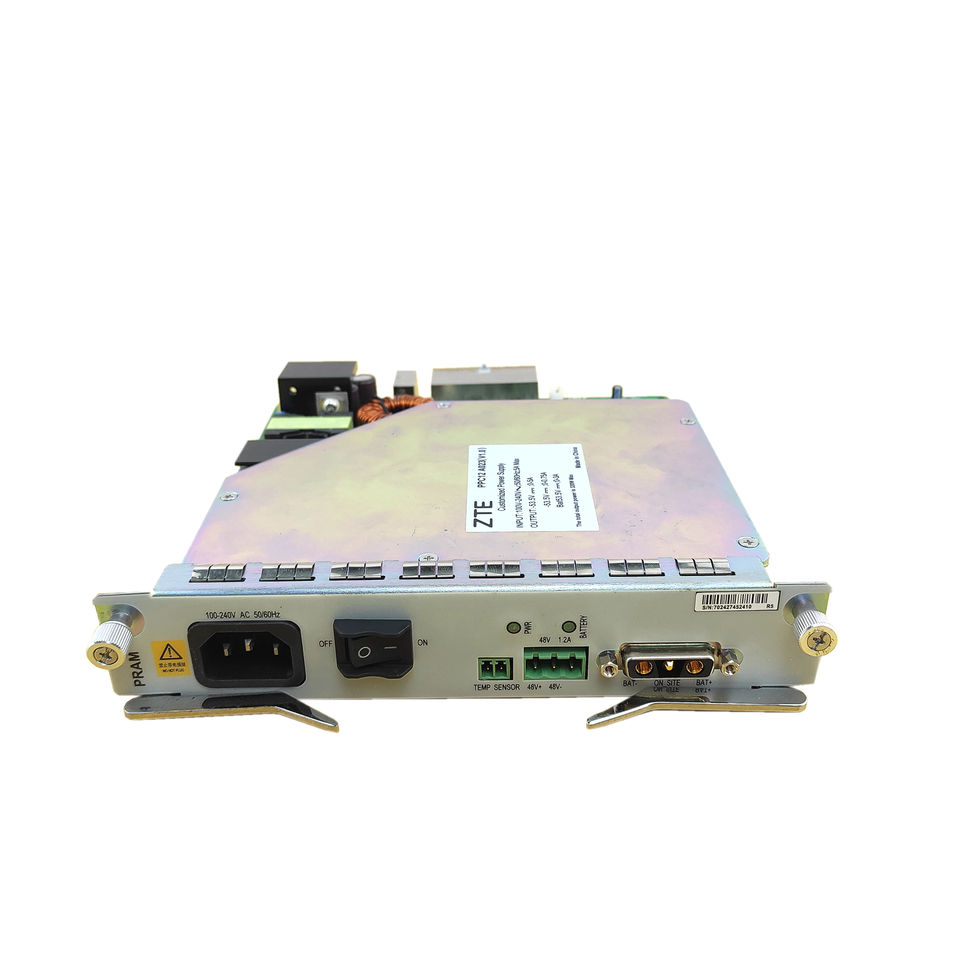

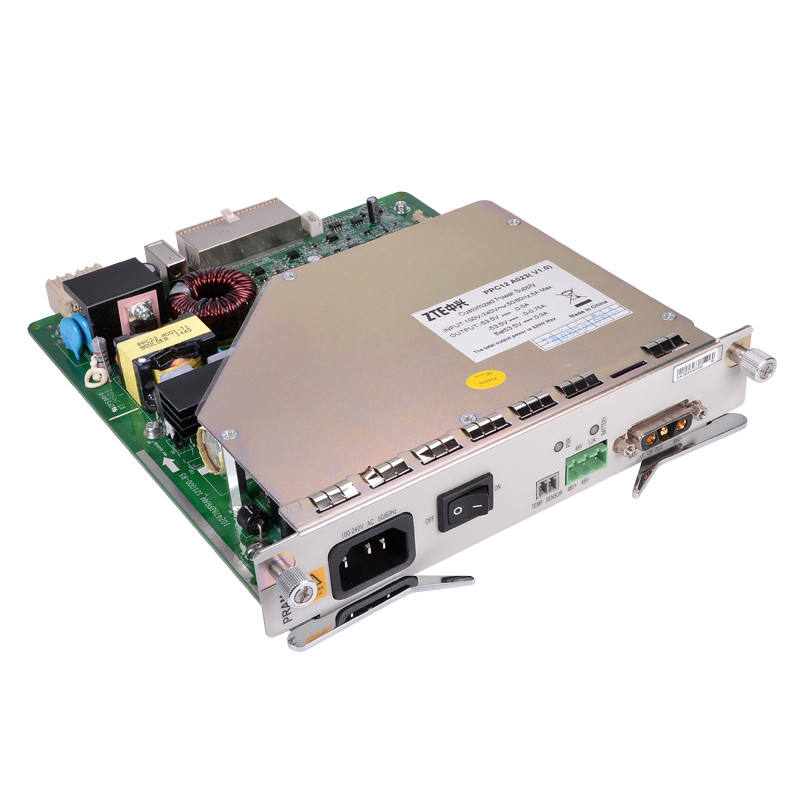

ZTE C320 PRAM Power Module Product Overview
ZTE C320 PRAM Power Module is the power supply for the ZTE Modular C320 OLT. The main purpose of this module is to convert the 220V power supply to 48 V, which is needed for the ZXA10 C320 chassis. ZTE C320 PRAM Power Module has a hot-swap functionality and is able to fully power the C320 chassis and all the boards installed in it. ZTE ZXA10 C320 is the compact design access optical platform with small capacity. Support xPON access and smooth evolution. ZXA10 C320 allows connect up to 4096 ONT/ONU with power consumption less than 200W.
ZTE C320 PRAM Power Module Product Features
Capacity
GPON up to 32 ports
XG-PON1 up to 16 ports
P2P up to 96 ports
Uplink interfaces up to 4 *GE
(Optical )+2*GE(Electronic) or 2*10GE(Optical )+2*GE(Optical ) +2*GE(Electronic)
Chassis Configuration (19 inch)
Total 5 slots
2 slots for universal line cards
2 slots for switch& control cards
1 slot for fan module
Subscriber Card Density
GPON card: 8/16 ports per card
XG-PON1 card:8 ports per card
P2Pcard: 24/48 ports per card
Product Details
Our Advantages
We have ZTE C320 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
ZTE C320, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
ZTE C320 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
