ZTE ZXDU58 ZXD800E Series Rectifier System ZTE Power Supply
Product Description
|
roduct
|
ZXD800E
|
|
AC input
|
~130-300V; 50-60Hz
|
|
AC Input
|
5A Max
|
|
DC output
|
48V
|
|
DC Output
|
15A
|
|
Power Factor
|
>0.99
|
|
Weight
|
2.5kg
|
|
Dimensions (H*W*D)
|
156mm*73mm*304mm
|

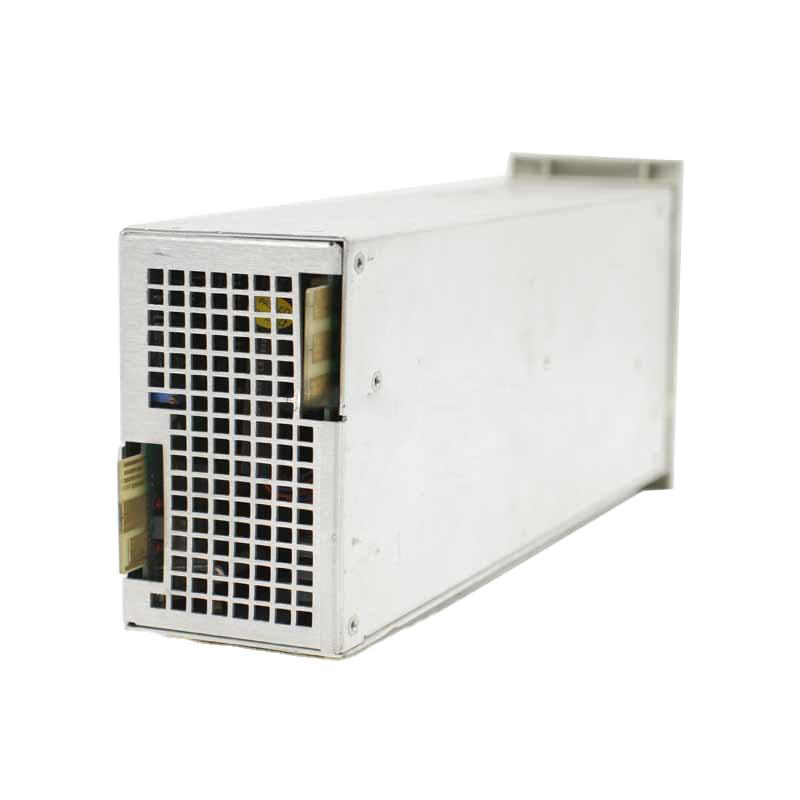

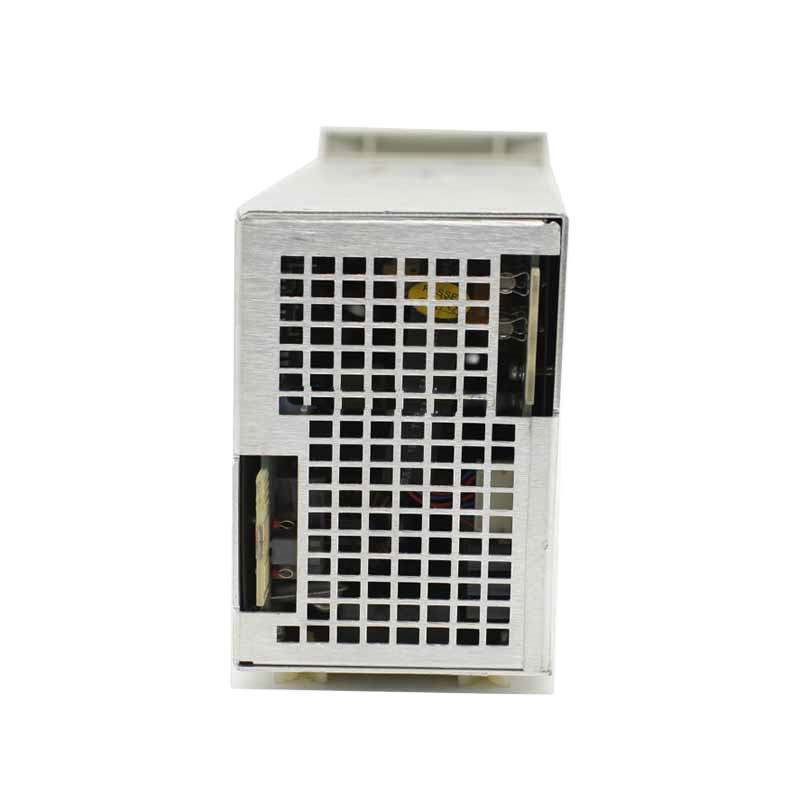

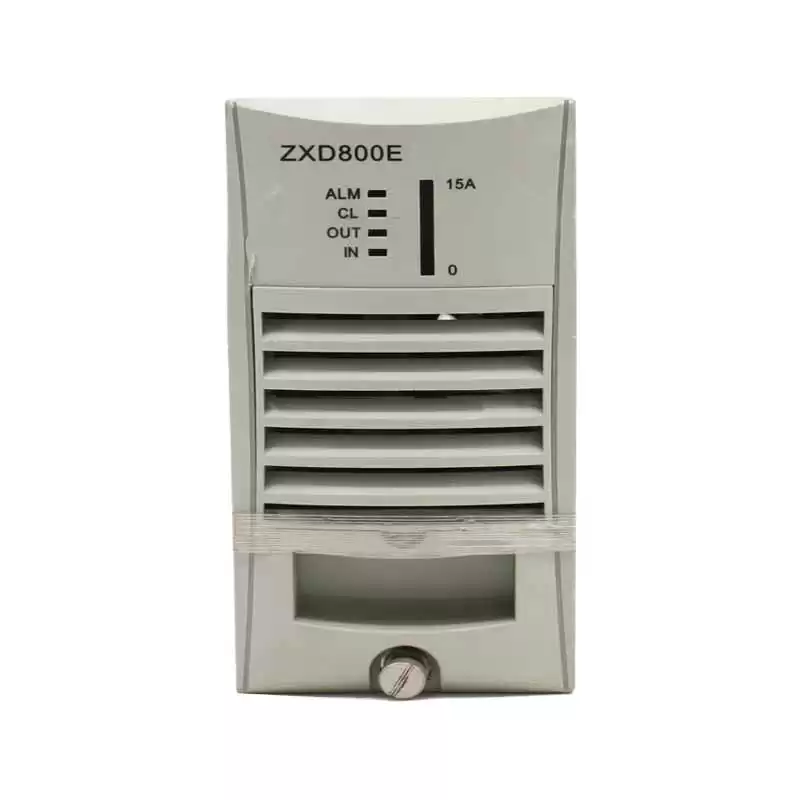

Functions of ZTE Embedded Power System ZXD800E According to the specific requirements of integrated communication and data equipment, ZTE has designed and developed a compact and fully functional embedded power supply system ZXD800E, which adopts advanced soft-switching technology and computer technology with high reliability. Its appearance is shown in Figure 1. The ZXD800E embedded power system has the following characteristics: High power density: The width of the ZXD800E system is standard 19 inches and the height is 4U. The core component ZXD800E 15A rectifier has a power density of up to 400mW/cm3 and a weight of only 1.9kg, which is at the best level among similar products at home and abroad. Small working space: adopting a hybrid heat dissipation design method, combining natural cooling and forced air cooling. Compared with the self-cooling embedded power system, the actual working space occupied by ZXD800E is greatly reduced, which can give other communication equipment more space. High reliability: ZXD800E adopts special technology to soften the switching process of switching power devices, reduce the voltage and current stress of power .
Product Details
Our Advantages
We have ZTE ZXD800Efor sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
ZTE ZXD800E, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
ZTE ZXD800E represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
