ZTE ZXMP M820 Metro Edge Optical Network Equipment
Product Description
System features
Strong service access and aggregation capability
ZXMP M820 enable access of varieties of optical signals with formats like STM-N, POS, ATM, GE, 10 GE, FC, ESCON, FICON and DVB.
Intelligent and three-dimensional service scheduling and grooming
In support of WSON, ZXMP M820 incorporate ROADM, OTN electrical cross-connect technique and L2 switching to build an intelligent and multi-layer service grooming system.
Applicable to trans-ring interconnection and Mesh networking, ROADM offers photonic cross connection and flexible photonic-layer scheduling. It also supports 2-10-degree agile lambda-level scheduling.
OTN-based centralized electrical cross-connect platform and distributed electrical cross-connect platform can provide ODU0/1/2 based cross-connect scheduling, perform flexible scheduling of GE/2.5G/10G services, and implement network traffic aggregation and grooming. Its full use of wavelength channel results in higher wavelength utilization rate.
L2 switching platform supports bandwidth convergence of 24 GE to one 10GE, as well as L2 switching of VLAN, QinQ, carrying data services more effectively.
Highly integrated, power-saving, power reduction, green and eco-friendly

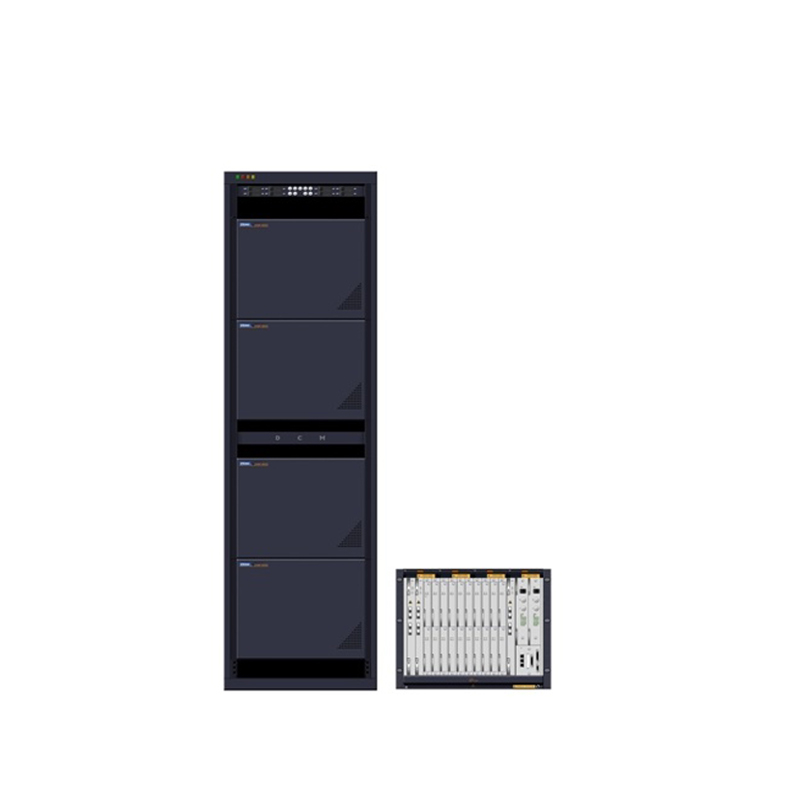

ZXMP M820 sub-rack is 9.5U in height, and totally 6 sub-racks can be installed on the rack. The sub-rack has 26 service board slots and enables 80-λ OTM configuration, saving equipment-room space. Use of integrated optical components to substitute distributed components effectively reduce power consumption, adaptable to the requirement for the green and eco-friendly network.
Large transmission capacity and modular upgradeability
ZXMP M820 can be configured as 40/80/96-λ DWDM and 18-λ CWDM in compliance with ITU-T recommendation, and support modular upgrade with increment of 4 lambdas.
Large transmission capacity full accommodates metro networks’ requirement for bandwidth, while modular upgrade mode ensures low investment in initial builds and tomorrow’s smooth capacity expansion, thus mitigating capital stress in network constructions.
Perfect protection function
ZXMP M820 offer 1+1 protection for critical boards like main control board, power board and cross-connect board, and support the industry’s most comprehensive photonic-layer protection techniques and electrical-layer protection techniques, in which, ring channel shared protection technique is ZTE’s self-developed ring protection technique with completely independent intellectual property. In addition to offering 50ms carrier-class protection, ring channel shared protection can save wavelength and channel resources.
Intelligent optical network WSON
ZXMP M820 support GMPLS-based WSON control plane, enable auto-discovery of network resources and topology, automatic routing, automatic signaling switching, as well as automatic setup of service route, fast end-to-end service provisioning, service grooming and traffic control, enhancing network survivability and boosting network resource utilization.
Product Details
Our Advantages
We have ZTE ZXMP M820 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
ZTE ZXMP M820, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
ZTE ZXMP M820 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
